Datalogic Magellan 8500Xt User Manual

2-36 Magellan
TM
8500Xt Scanner
Installation
1. Make sure that all cables are firmly attached (except that the AC/
DC power supply should not be connected to the AC outlet yet).
2. Remove the All Weighs™ Platter to gain access to the lift han-

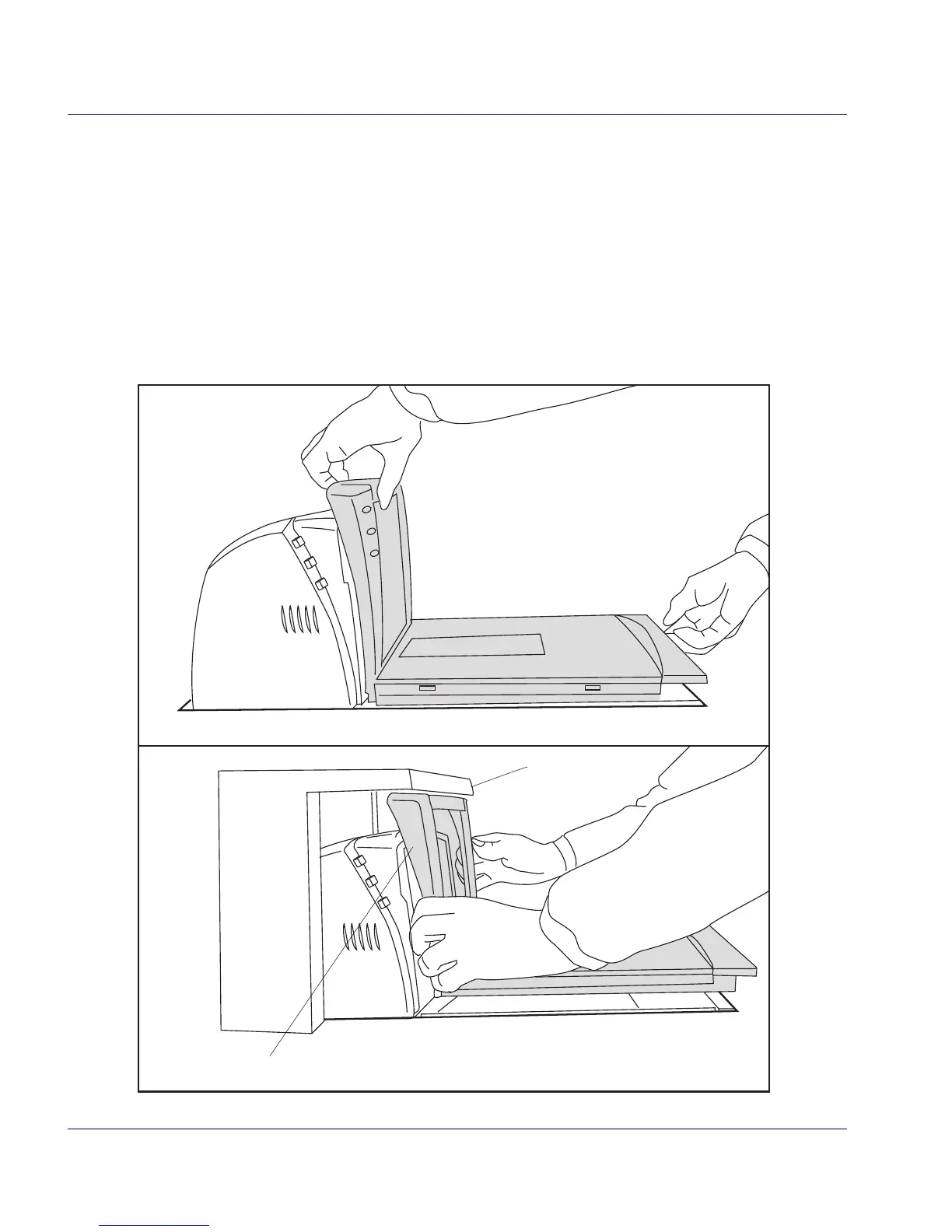

dles. Grasp the platter as shown in
Figure 2-24 and gently lift it
from the scanner. If the top edge of the platter is blocked, you
may find it easier to grasp the platter v
ertical bezel as shown in
Figure 2-24b.
Figure 2-24. Removing the All Weighs™ Platter
Vertical Bezel
Obstruction
(Models vary)
a
b
OR

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
