Connectors

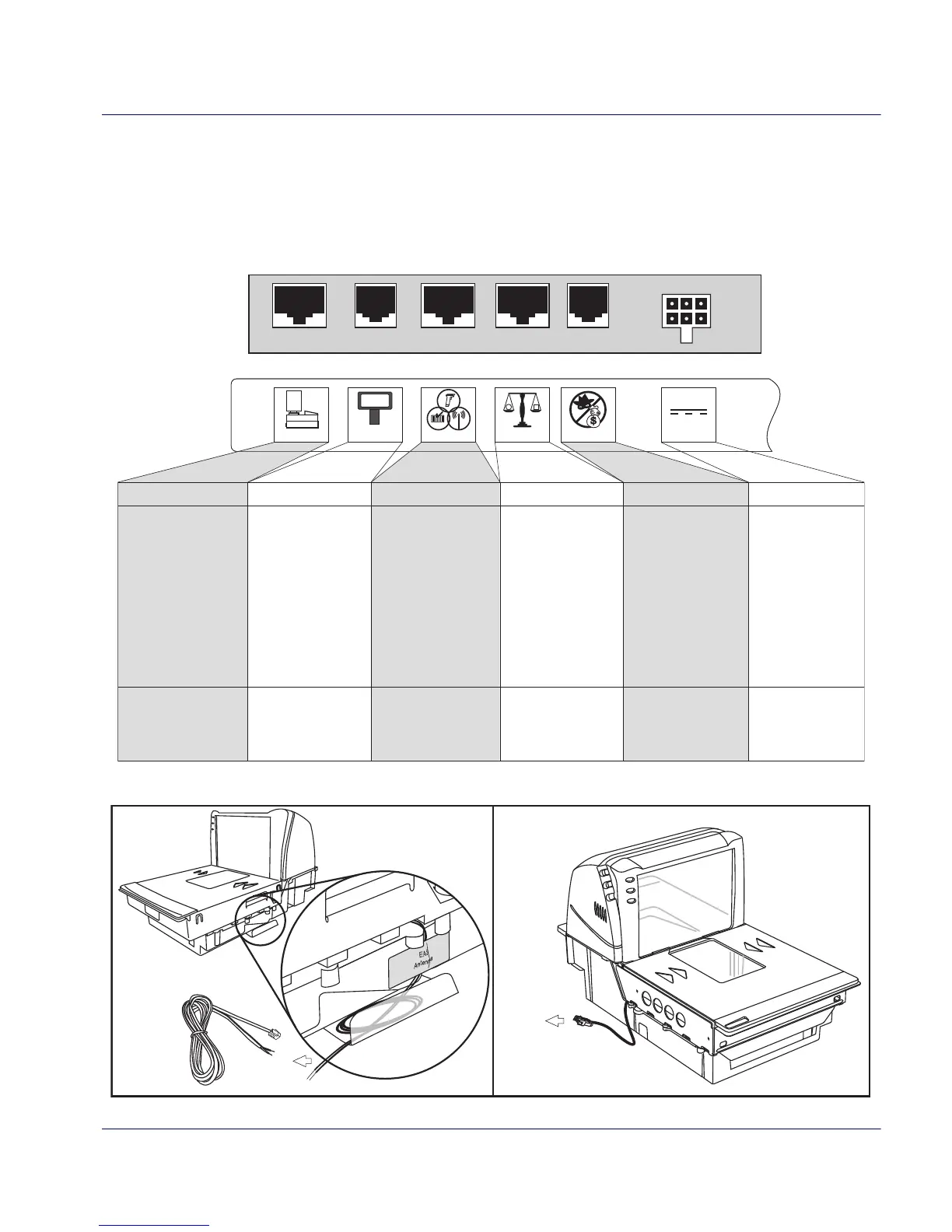

The appearance of the connector panel (Figure 1-2) will vary depending
upon the factory options purchased with your
model. Reference two types
of possible optional EAS connections in
Figure 1-3a and Figure 1-3b.
Figure 1-2. Connector Panel
POS TERMINAL REMOTE DISPLAY AUXILIARY PORT SCALE HOST EAS INTERLOCK POWER
Connection to
this port is
Optional
AC Brick Input
OR
Power off Terminal
(POT) Brick Input
Scale Data (dual
cable scanner/scale)
Drives Remote Display· Label Data
· Scale Data (for
single cable interfaces)
· Application Download
(where appropriate)
· Test Port
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld
Scanner Input
· Auxiliary RS-232
Label Data Output
Models with scale
only
Connection to
this port is
Optional
· Provides Good Read
output to enable EAS
antenna RF output
· Provides signal to
drive external speaker
Dual cable units only.
(Scale connection may
be handled through
POS Terminal port)
POS Terminal Remote Display Aux. Port EAS Interlock PowerScale Host
0.00
Figure 1-3. Optional EAS Cable Connections
To EAS
System
To EAS
System
ab

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
