7-90 Magellan
TM
8500Xt Scanner
RS-232 Features
RS-232 Baud Rate
This feature selects the baud rate required for sending and receiving data.
NOTE
Single cable interfaces are limited to Baud Rate selections up to
19200. They
cannot communicate at Baud Rates of 38400 and up.
To specify the RS-232 Baud Rate:
1. Scan the SWITCH barcode.
2. Scan the desired baud rate from the barcodes below and on the
immediately follo
wing pages. You’ll need to cover any unused
barcodes on this and the facing page to ensure that the scanner
reads only the barcode you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.

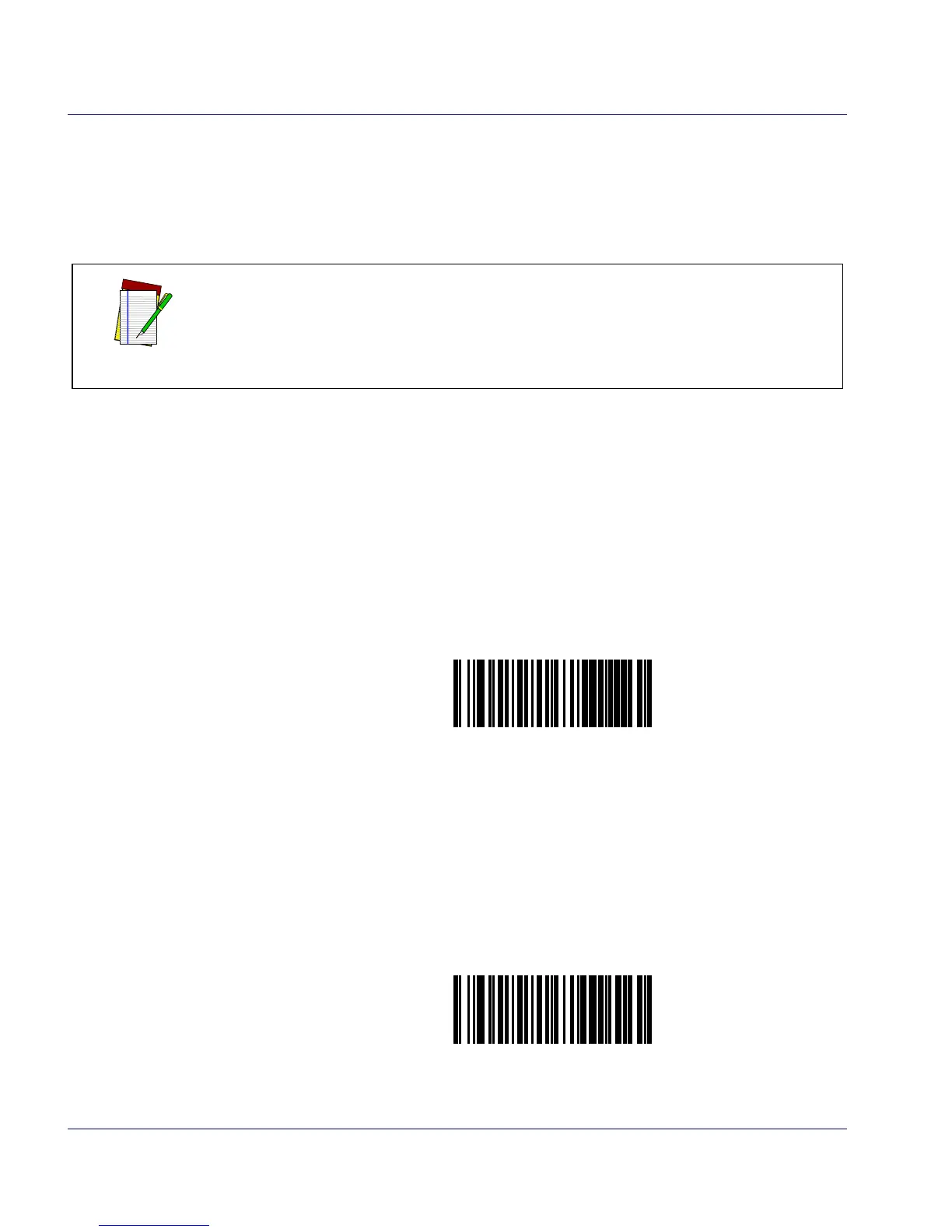

RS-232 BAUD RATE = 1200
RS-232 BAUD RATE = 2400
