7-102 Magellan
TM
8500Xt Scanner

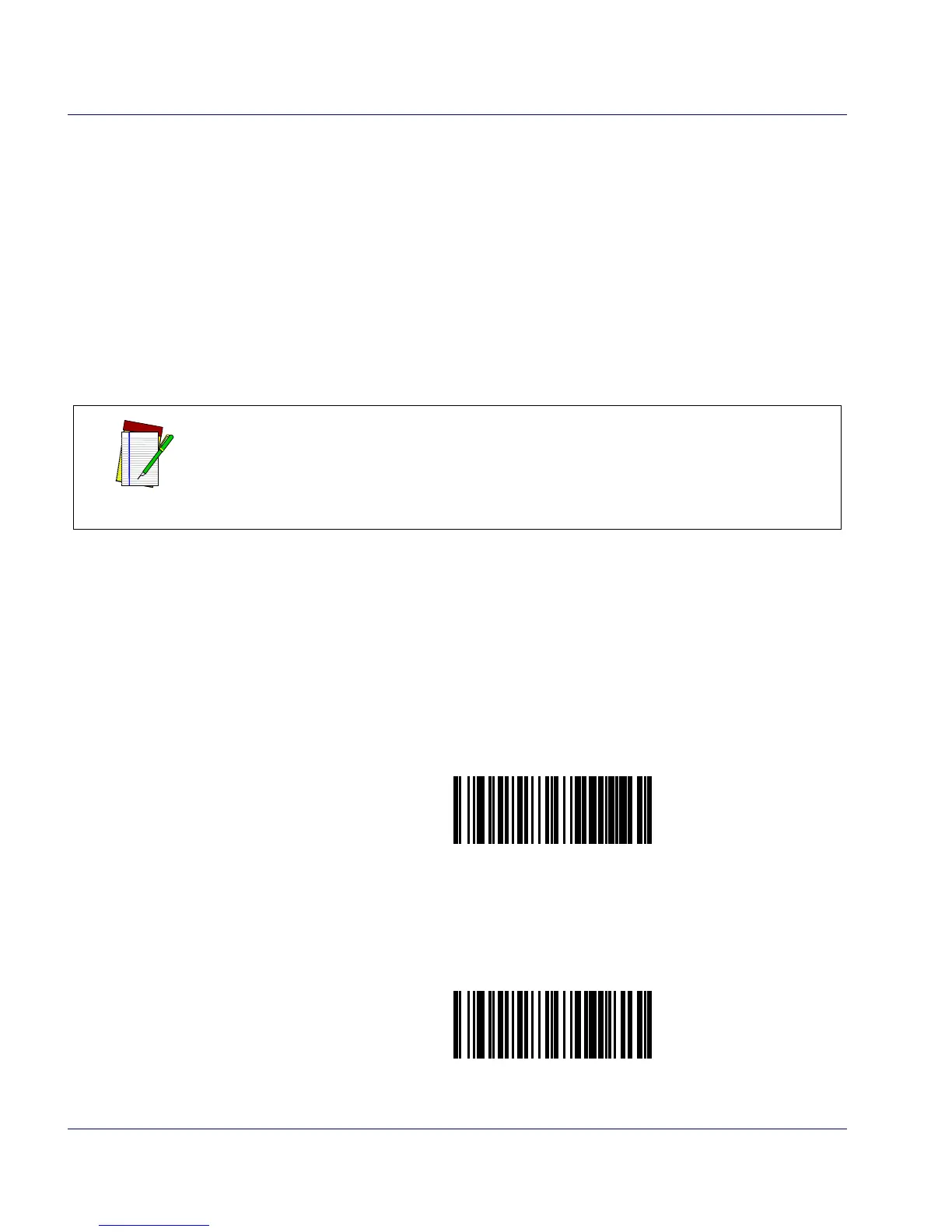

RS-232 Host Echo
When enabled, this feature passes all data through the scanner to the host
as it comes in. This feature is used for applications where “daisy chaining
of RS-232 devices onto the same cable is necessary. If, for example, one of
the devices in the chain is a terminal where someone is entering data while
another person is simultaneously scanning a barcode requiring transmis-
sion to the host, the scanner will wait for the RS-232 channel to be quiet
for a specified period of time
(set via RS-232 Host Echo Quiet Interval).
The scanner can be set to observe this del
ay before sending its data in
order to avoid RS-232 transmission conflicts.
NOTE
When RS-232 Host Echo is enabled, the f
ollowing features are ignored: RS-
232 Software Flow Control and RS-232 ACK NAK Enable as well
as all other ACK/ NAK related operations, pl
us processing of RS-232 host
commands.
To enable/disable this feature:
1. Scan the SWITCH barcode.
2. Scan either the enable or disable barcode below. You’ll need to
co
ver any unused barcodes on this and the facing page to ensure
that the scanner reads only the barcode you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.
RS-232 HOST ECHO = DISABLE
RS-232 HOST ECHO = ENABLE
