Product Reference Guide 7-187
GTIN 5-Digit Supplemental Label ID
This feature specifies a GTIN label ID to be added to barcode data when
GTIN conversion is enabled and 5-digit supplemental addon barcode
labels are converted.
NOTE
The programming feature, RS-232 Label ID Control, designates whether
the Label ID is transmitted as a prefix or
suffix or if Label ID is disabled.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan the barcode, SET GTIN 5-DIGIT SUPPLEMENTAL LABEL
ID below. You’ll need to cover any unused barcodes on this and the
facing page to ensure the scanner r
eads only the barcode you intend
to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the desired Label ID characters; entered as two hex pairs. A
table con
taining the ASCII Character Set and their corresponding
Hex Values is available in the inside back cover of this manual.
ASCII p
arameters must be input by scanning a pair of hexadecimal
digits for each character. Thus, to set a two-character value of AB,
barcodes containing the digits ‘4’, ‘1’, ‘4’, and ‘2’ must be scanned.
The selectable range for this option is any hex value from 00 to FF
(for each of the two characters).
4. Complete the programming sequence b
y scanning the SWITCH
barcode.

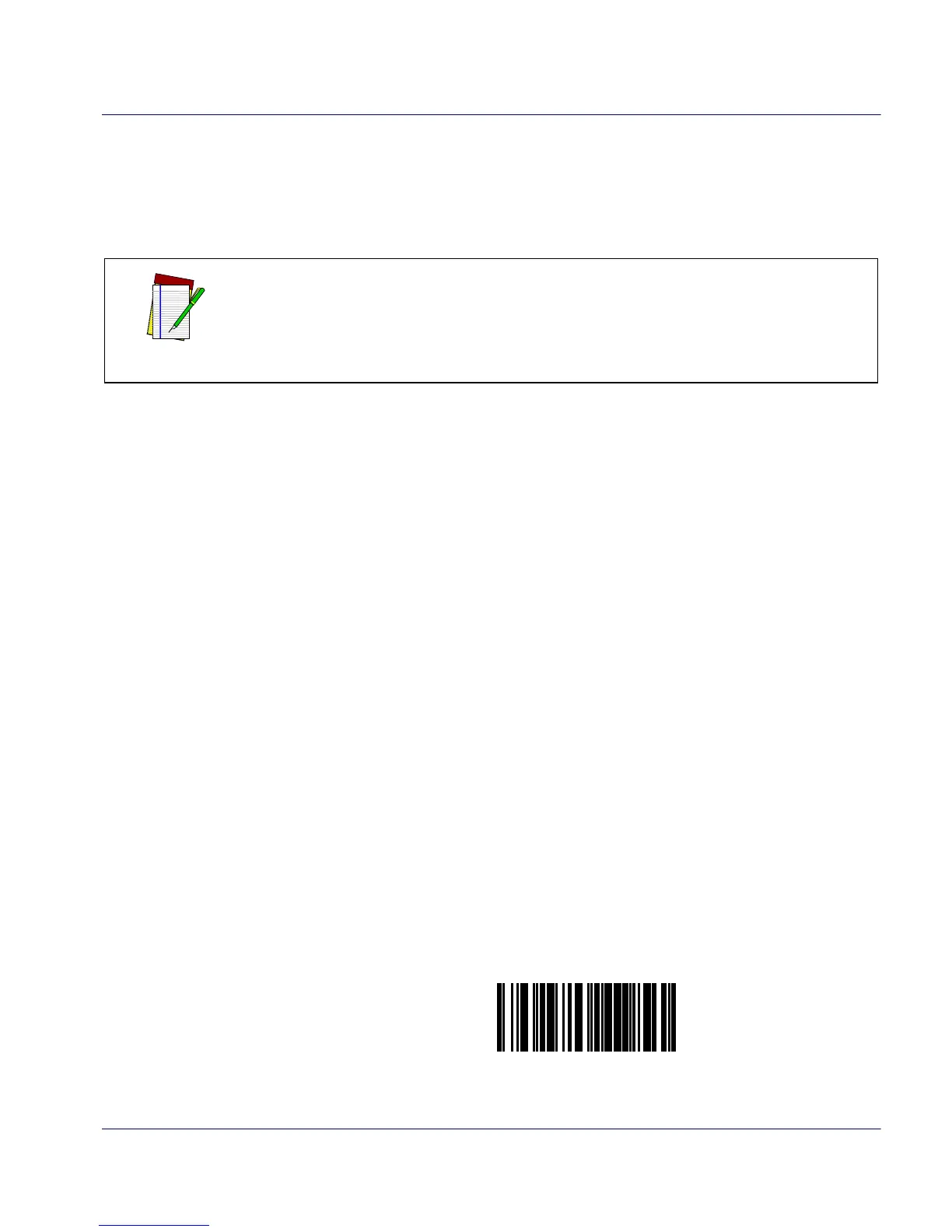

SET GTIN 5-DIGIT SUPPLEMENTAL LABEL ID
