Datalogic Magellan 8500Xt User Manual

7-122 Magellan
TM
8500Xt Scanner
Single Cable RS-232 Scanner Only Protocol
This sets the type of interface protocol that will be used in Single Cable
RS-232.
Options are:
• Scanner/scale RS-232 protocol
• Scanner only RS-232 protocol
To set this feature:
1. Scan the SWITCH barcode.
2. Scan the barcode below representing the desired option. You’ll
ne
ed to cover any unused barcodes on this and the facing page to
ensure that the scanner reads only the barcode you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.

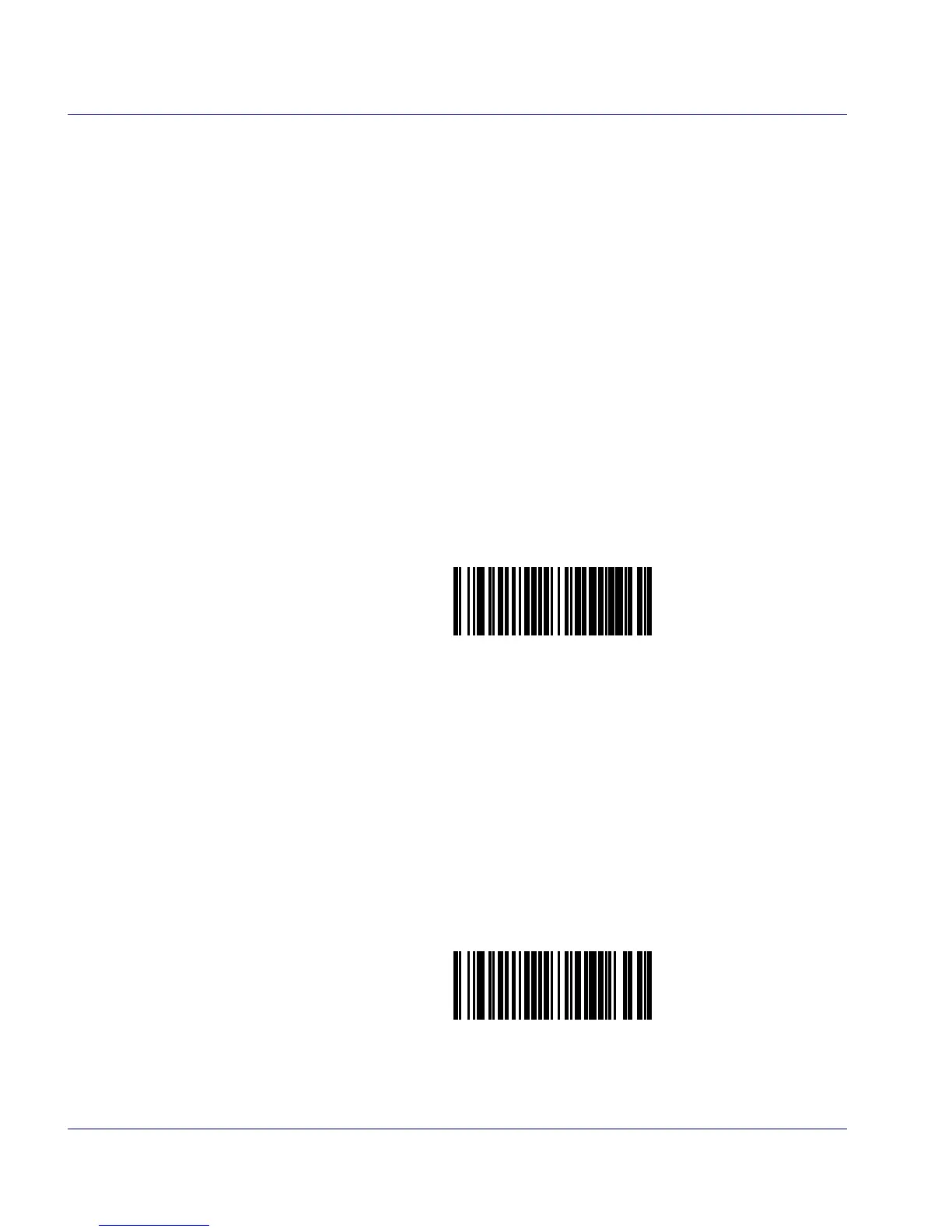

SINGLE CABLE RS-232 PROTOCOL = SCANNER/SCALE
SINGLE CABLE RS-232 PROTOCOL = SCANNER ONLY

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
