Datalogic Magellan 8500Xt User Manual

Product Reference Guide 7-237

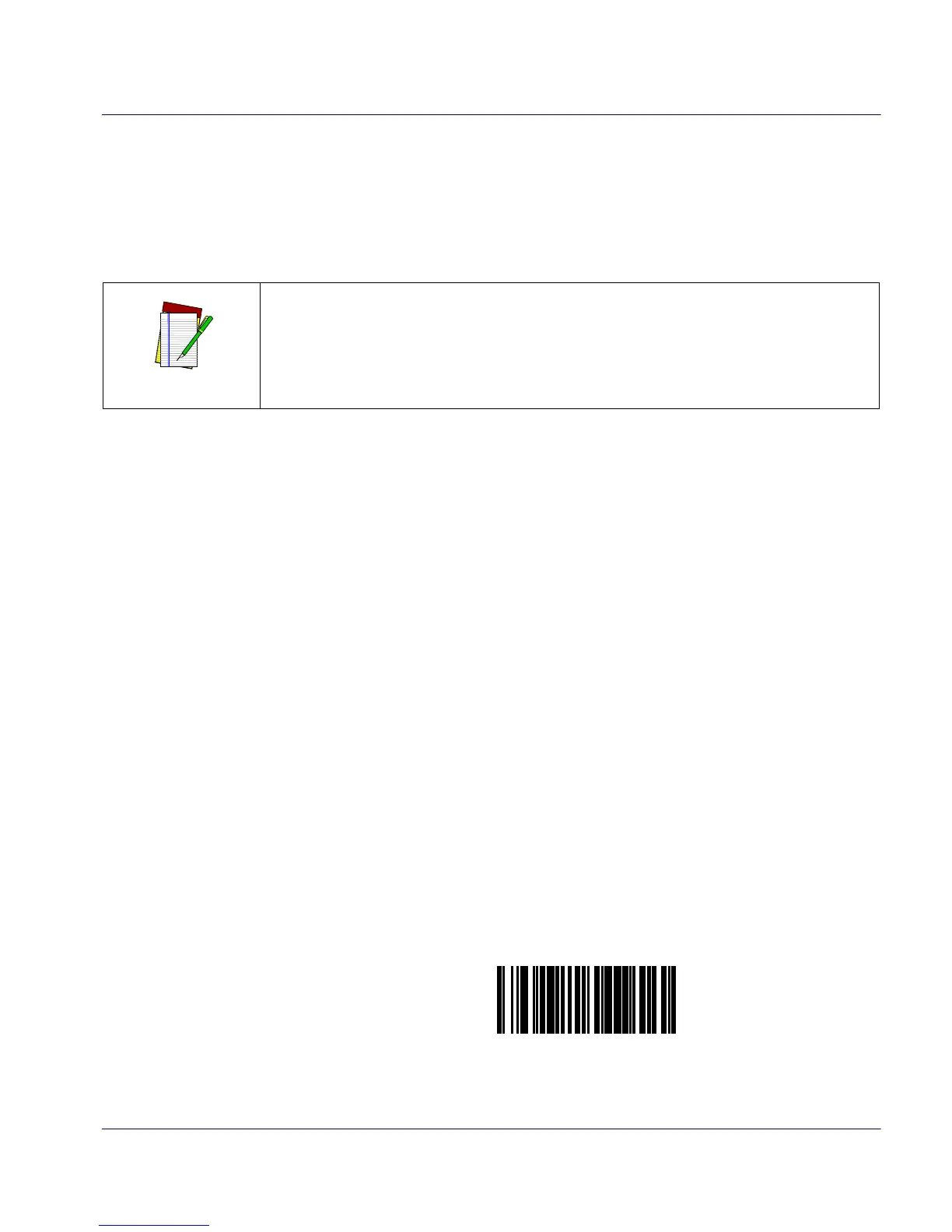

I 2 of 5 Length 2
If I 2 of 5 Length Control is set to Fixed-Length decoding, this feature
specifies I 2 of 5 second fixed length. If I 2 of 5 Length Control is set to
Variable-Length decoding, this feature specifies the maximum label
length.
NOTE
When in Fixed Length mode, if Length 2
is set to the value of 00 (zero),
then only Length 1 will apply.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan the barcode, SET I 2 OF 5 LENGTH 2 below. You’ll need to
cover any unused barcodes on this and the facing page to ensure
that
the scanner reads only the barcode you intend to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that
represent the desired label length. The selectable range for this
option is 00, or
02 to 50; even numbers only. Pad all single digit
numbers with a leading zero to yield a two-digit entry (02-50).
4. Complete the programming sequence by scan
ning the SWITCH
barcode.
SET I 2 OF 5 LENGTH 2

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
