7-234 Magellan
TM
8500Xt Scanner

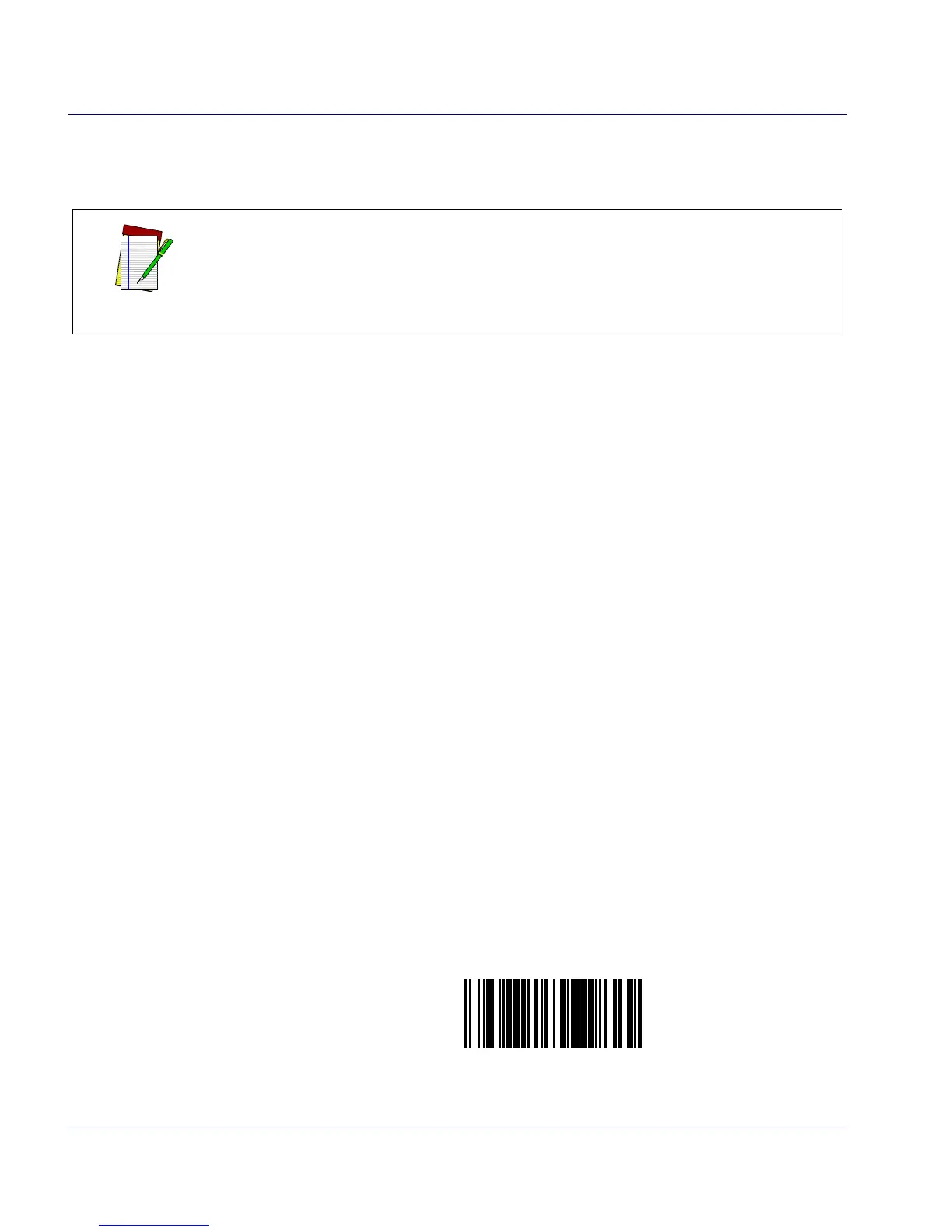

I 2 of 5 Label ID
This feature specifies an I 2 of 5 label ID to be added to barcode data..
NOTE
The programming feature, RS-232 Label ID Control, designates
whether the Label ID is transmitted as a prefix or suffix
or if Label ID is dis-
abled.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan the barcode, SET I 2 of 5 LABEL ID below. You’ll need to
cover any unused barcodes on this and the facing page to ensure
the scanner
reads only the barcode you intend to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that
represent the desired Label ID characters; entered as two hex
pairs. A table
containing the ASCII Character Set and their corre-
sponding Hex Values is available in the inside back cover of this
manual. ASCII parameters must be input b
y scanning a pair of
hexadecimal digits for each character. Thus, to set a two-character
value of AB, barcodes containing the digits ‘4’, ‘1’, ‘4’, and ‘2’
must be scanned. The selectable range for this option is any hex
value from 00 to FF.
4. Complete the programming seque
nce by scanning the SWITCH
barcode.
SET I 2 of 5 LABEL ID

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
