7-256 Magellan
TM
8500Xt Scanner
Code 93 Length 1
If Code 93 Length Control is set to Fixed-Length decoding, this feature
specifies Code 93 first fixed length. If Code 93 Length Control is set to
Variable-Length decoding, this feature specifies the minimum label
length.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan the barcode, SET CODE 93 LENGTH 1 below. You’ll need
to cover any unused barcodes on this and the facing page to
en
sure that the scanner reads only the barcode you intend to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that
represent the desired label length. The selectable range for this
option is 01 to 50.
Pad all single digit numbers with a leading
zero to yield a two-digit entry (01-50).
4. Complete the programming seque
nce by scanning the SWITCH
barcode.

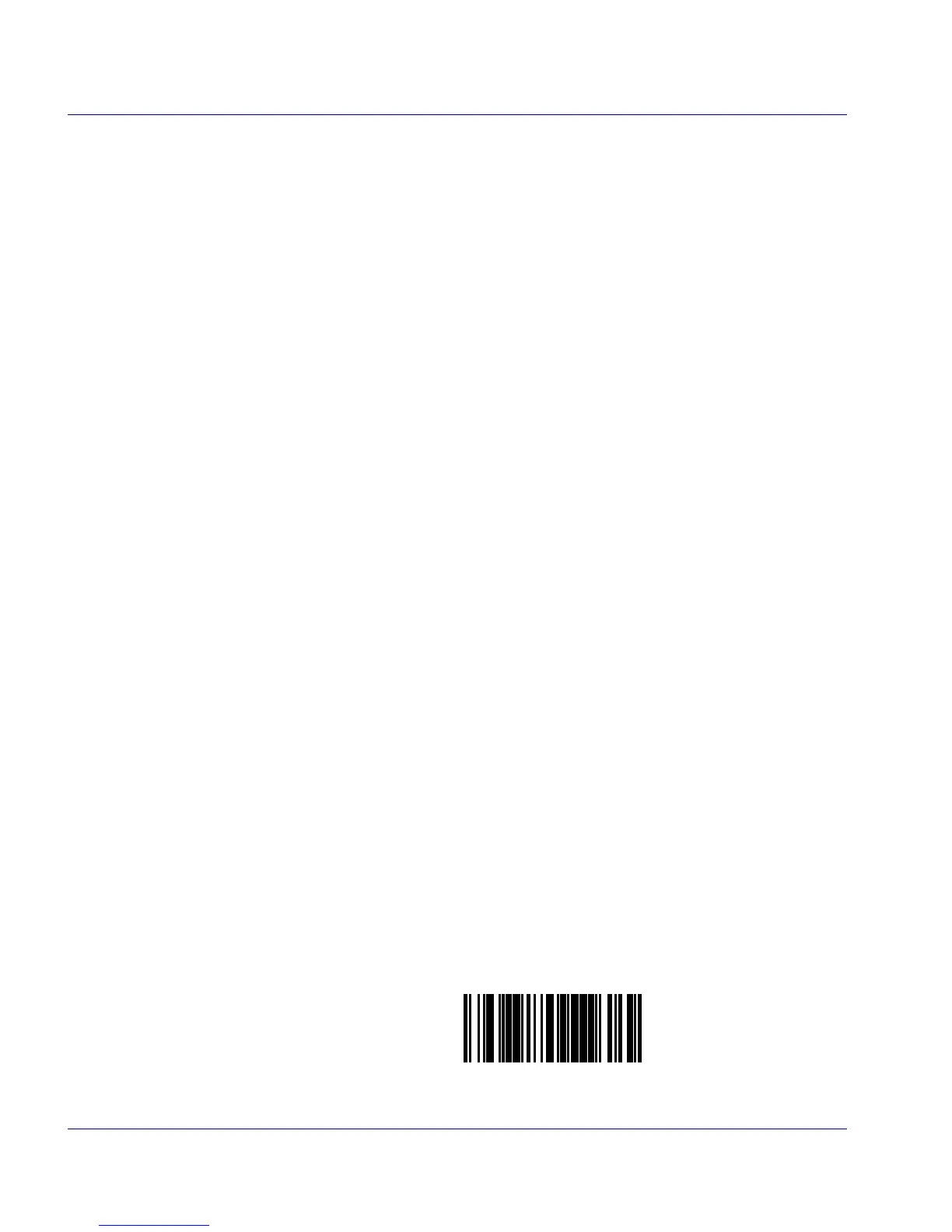

SET CODE 93 LENGTH 1

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
