2-26 Magellan
TM
8500Xt Scanner
Figure 2-14 provides physical dimensions for the AC/DC Adapter (part
number 8-0599).

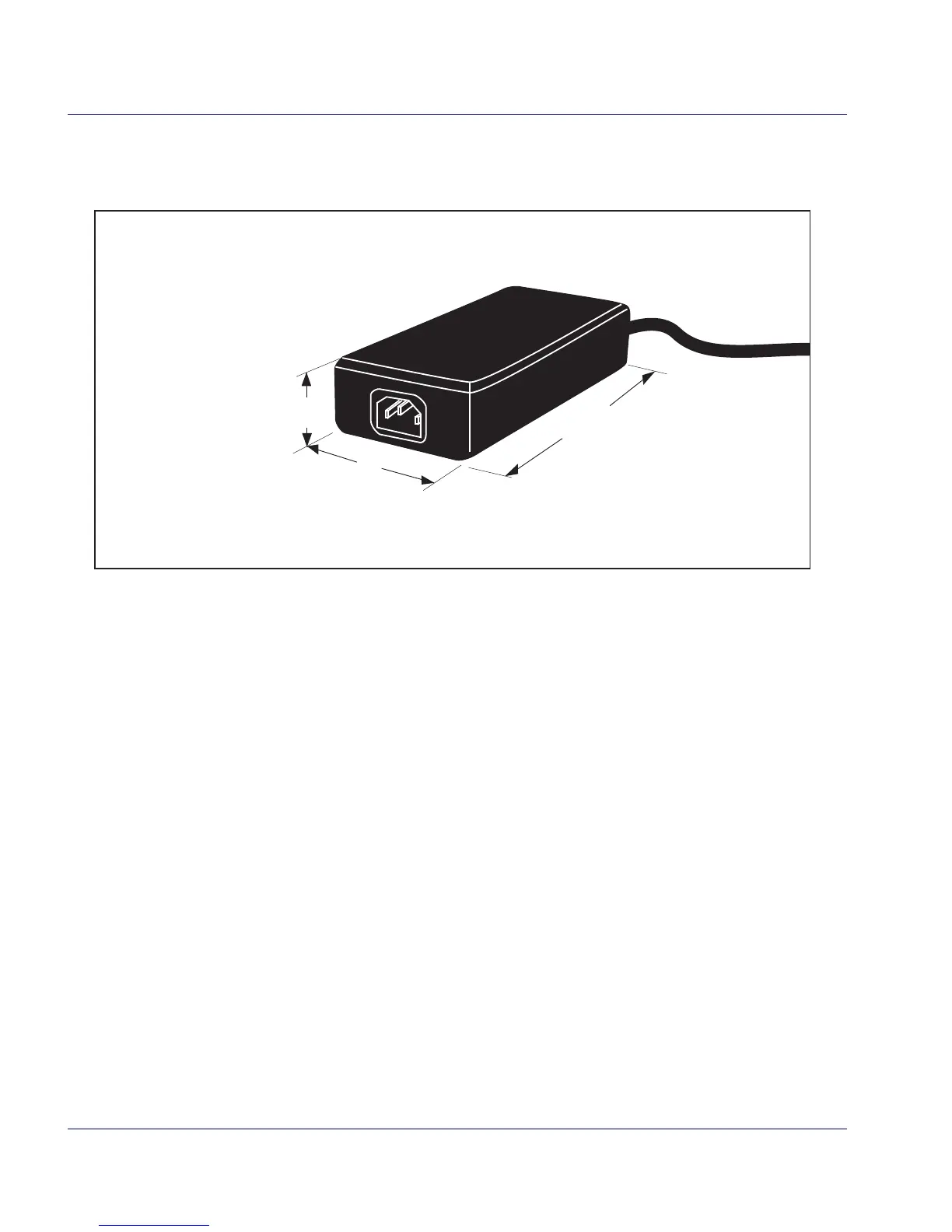

Figure 2-14. Physical Measurements: AC/DC Adapter
Remote Scale Display Placement/Installation
When installing the optional Remote Scale Display, consider both the cus-
tomer’s viewing angle and the amount of
daily ambient light conditions
anticipated at this installation site.
Figure 2-15 shows available adjustment
for the display head.
Lighting Considerations
The display(s) will be easily readable unless placed in direct sunlight or
other very strong light sources. Light interference will not be a factor in
most installations. For best viewing, the display head(s) can each be
rotated up to 180
º
around the post and/or tilted 15
º
backward or forward.
