Datalogic Magellan 8500Xt

Product Reference Guide 7-115
RS-232 ACK NAK Timeout Value
This item specifies the time the scanner will wait for an ACK character
from the host following a label transmission.
• 0 = Infinite timeout
• 1 - 75 = Timeout in 200-millisecond increments
To set the ACK NAK Timeout Value:
1. Scan the SWITCH barcode.
2. Scan the barcode below,
SET RS-232 ACK NAK TIMEOUT VALUE.
You’ll need to cover any unused barcodes on this and the facing
pag
e to ensure that the scanner reads only the barcode you intend
to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that
represent the desired timeout. A setting of 0 specifies an infinite
timeout.
The remaining selectable range is 1-75, which is the
timeout in 200-millisecond increments. Pad all single digit num-
bers with a leading zero to yield a two-digit entry (00-75).
Examples:
00 = Infinite timeout
01 = 200ms
05 = 1,000ms (1 second)
40 = 8,000ms (8 seconds)
75 = 15,000ms (15 seconds)
4. The scanner will automatically exit Programming Mode when the
appr
opriate amount of digits have been scanned.

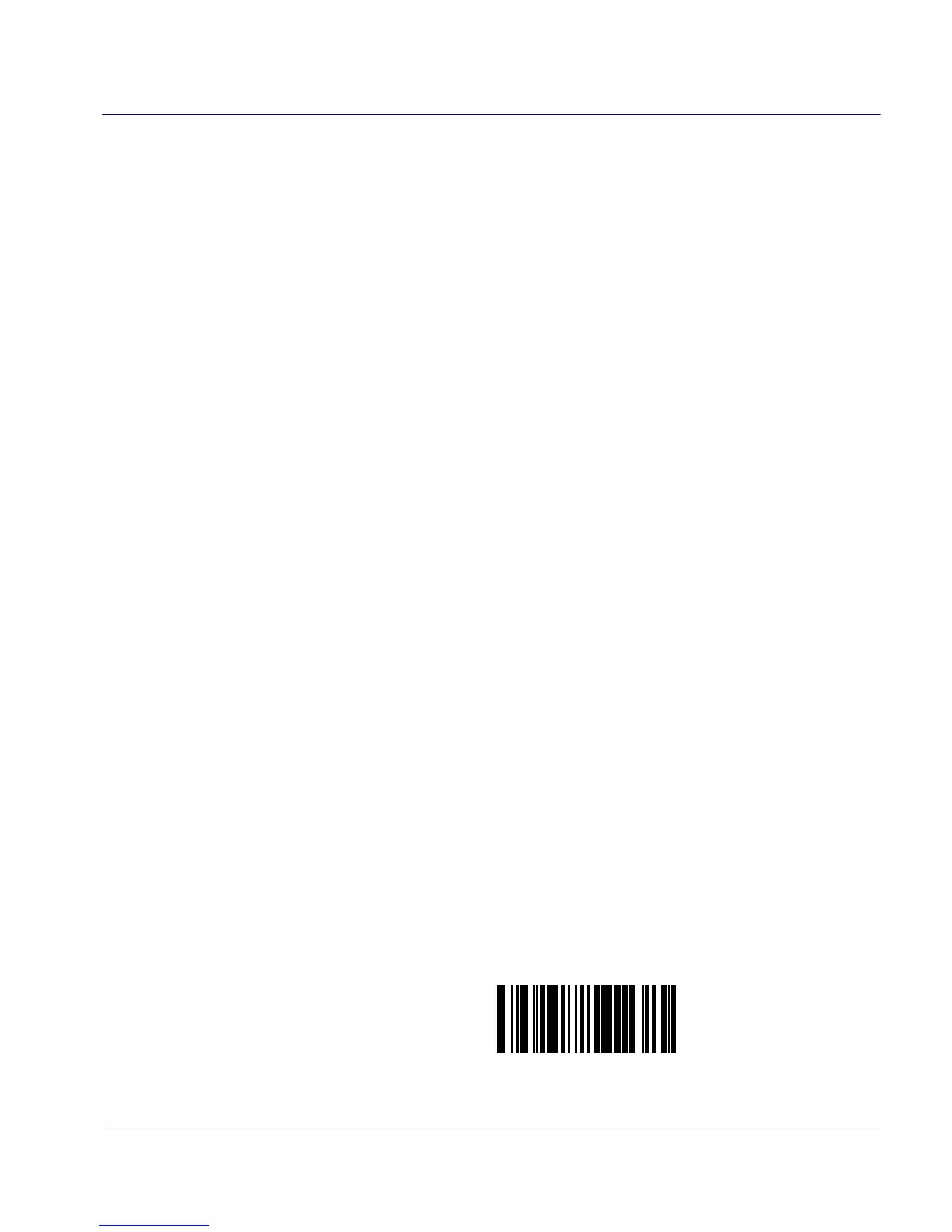

SET RS-232 ACK NAK TIMEOUT VALUE
