Datalogic Magellan 8500Xt User Manual

7-54 Magellan
TM
8500Xt Scanner
EAS Features — Checkpoint
The features in this section apply only to Checkpoint
®
EAS systems. See
EAS Features — Sensormatic on page 42 to set options for that system.
EAS Active State
Specifies the active state polarity of EAS (Electronic Article Survellance);
the inactive state is its opposite polarity. EAS output goes active during the
good read of a barcode, allowing the EAS device to deactivate a tag on the
product.
To set the EAS Active State:
1. Scan the SWITCH barcode.
2. Scan barcode below representing the desired setting. You’ll need
to co
ver any unused barcodes on this and the facing page to
ensure that the scanner reads only the barcode you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.

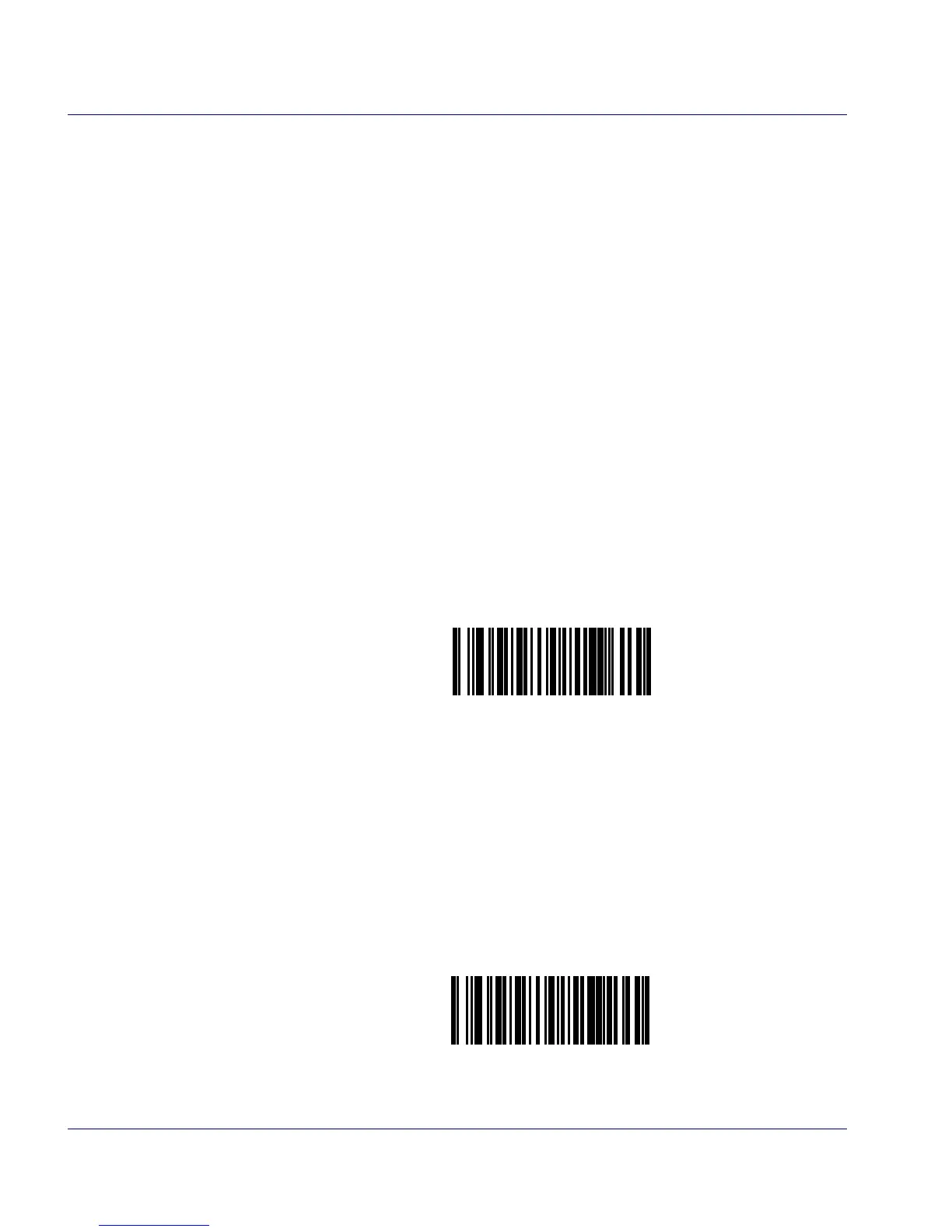

EAS ACTIVE STATE = ACTIVE LOW
EAS ACTIVE STATE = ACTIVE HIGH

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
