1-4 Magellan
TM
8500Xt Scanner
Scanner and Scanning-Scale Nomenclature
Controls, indicators and other nomenclature are shown in Figure 1-1 and
Figure 1-1.
EAS capabilities are optional, and may or may not
be enabled.

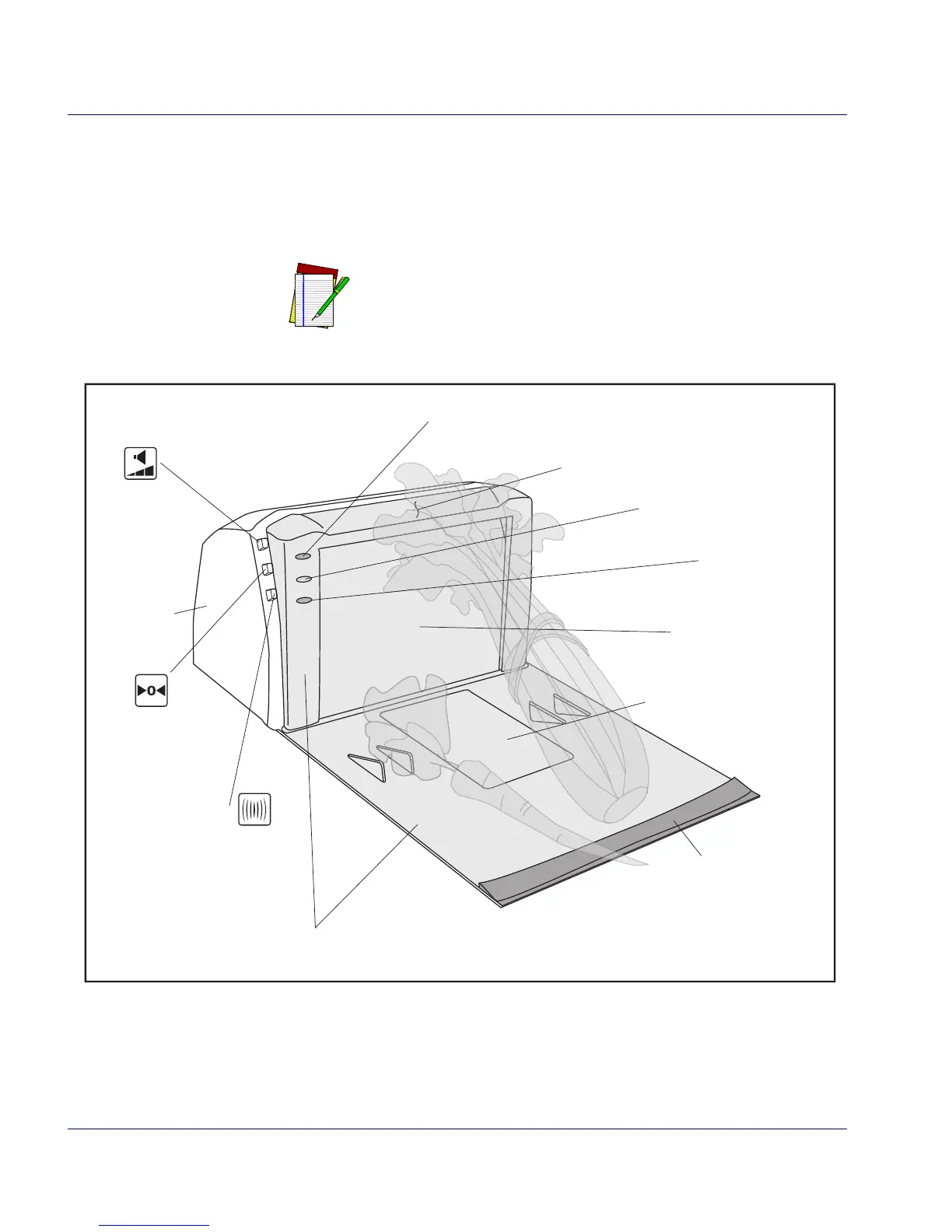

Figure 1-1. Scanning-Scale Nomenclature
Produce Rail
All Weighs™ Platter
Scanner LED (Green)
Scale LED (Yellow)
Weighing Surface — Lean
Oversize Produce Here
Vertical Window
Horizontal Window
Scale Zero
Push Button
Manual EAS
Deactivation Push
Button
Bonnet
Volume/Tone Push Button
EAS LED
(Tri-Color)

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
