Checkstand Preparation
Reference Figure 2-4. When performing a first time installation into a new
checkstand, verify before cutting that
room will be allowed for cabling and
the AC/DC Power Supply. When making the opening, take extra care to
accurately cut to the correct dimensions. Mounting may require installa-
tion of support(s), countertop routing, or
other such devices. Depending
upon checkstand design, you may wish to install an item diverter to direct
items toward the scan window. See the instructions in this manual titled
“Counter Cutout” for more details concerning the location and prepara-
tion of the opening.

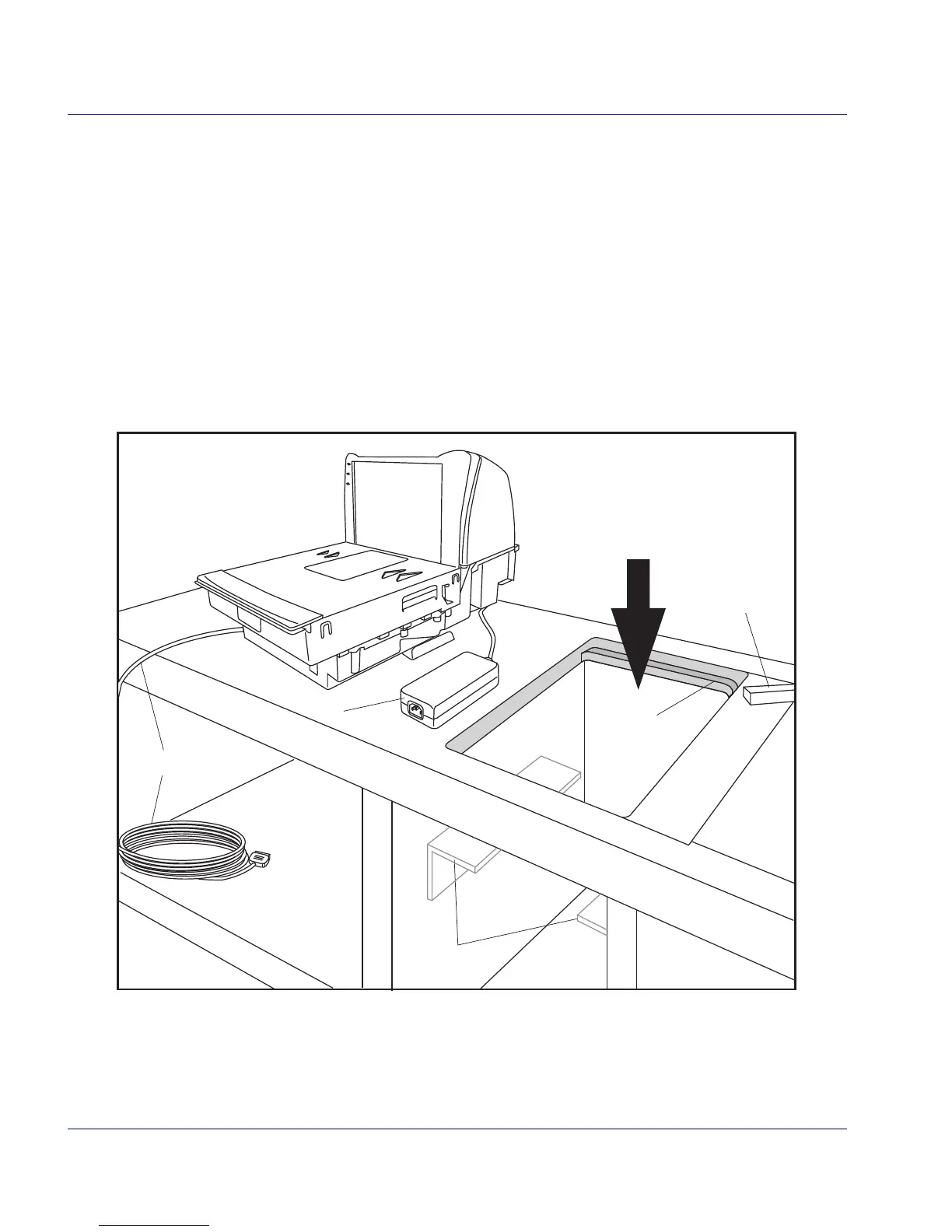

Figure 2-4. Installation Overview
Item
Diverter
Routed
Support
Lip
Counter Cutout
Support Rails
Cabling
(Models and
connections
vary)
AC/DC
Power
Supply

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
