Product Reference Guide 7-213
Code 39 Stitching
Enables/disables stitching for Code 39 labels. When parts of a Code 39
barcode are presented to the scanner with this feature enabled, the barcode
parts will be assembled by the scanner’s software, and the data will be
decoded if all barcode proofing requirements are met.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan your selection from the barcodes belo
w. You’ll need to cover
any unused barcodes on this and the facing page to ensure that
the scanner reads only the barcode you intend to scan.
Complete the programming sequence b
y scanning the SWITCH barcode.

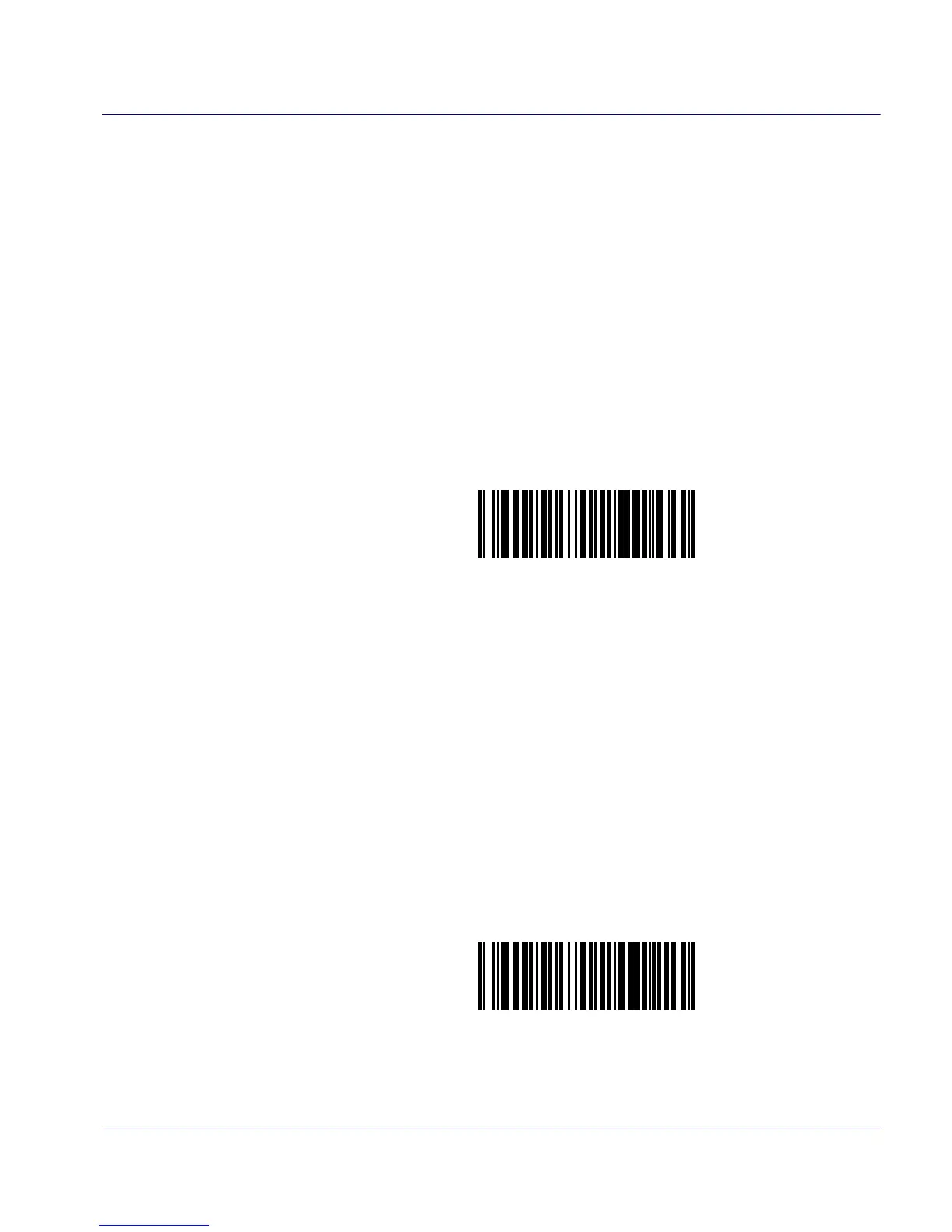

CODE 39 STITCHING = DISABLE
CODE 39 STITCHING = ENABLE
