7-110 Magellan
TM
8500Xt Scanner
RS-232 ACK NAK Enable
This enables/disables the ability of the scanner to support the RS-232
ACK/NAK protocol. When configured, the scanner and/or host sends an
“ACK” when it receives data properly, and sends “NAK” when the data is
in error. Selections for this option are:
•Disable
• Label Transmission — the scanner expects an ACK/NAK
r
esponse from the host when a label is sent)
• Host Acknowledgement — Enabled for Host Commands (the
scann
er will respond with ACK/NAK when the host sends a com-
mand)
• Label & Host — Enabled for both Label Transmission & Host
Comm
ands
To select the option for RS-232 ACK NAK Enable:
1. Scan the SWITCH barcode.
2. Scan the desired option from barcodes below and on the follow-
ing page. You’ll need to cover any unused barcodes on this and
the facing page
to ensure that the scanner reads only the barcode
you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.

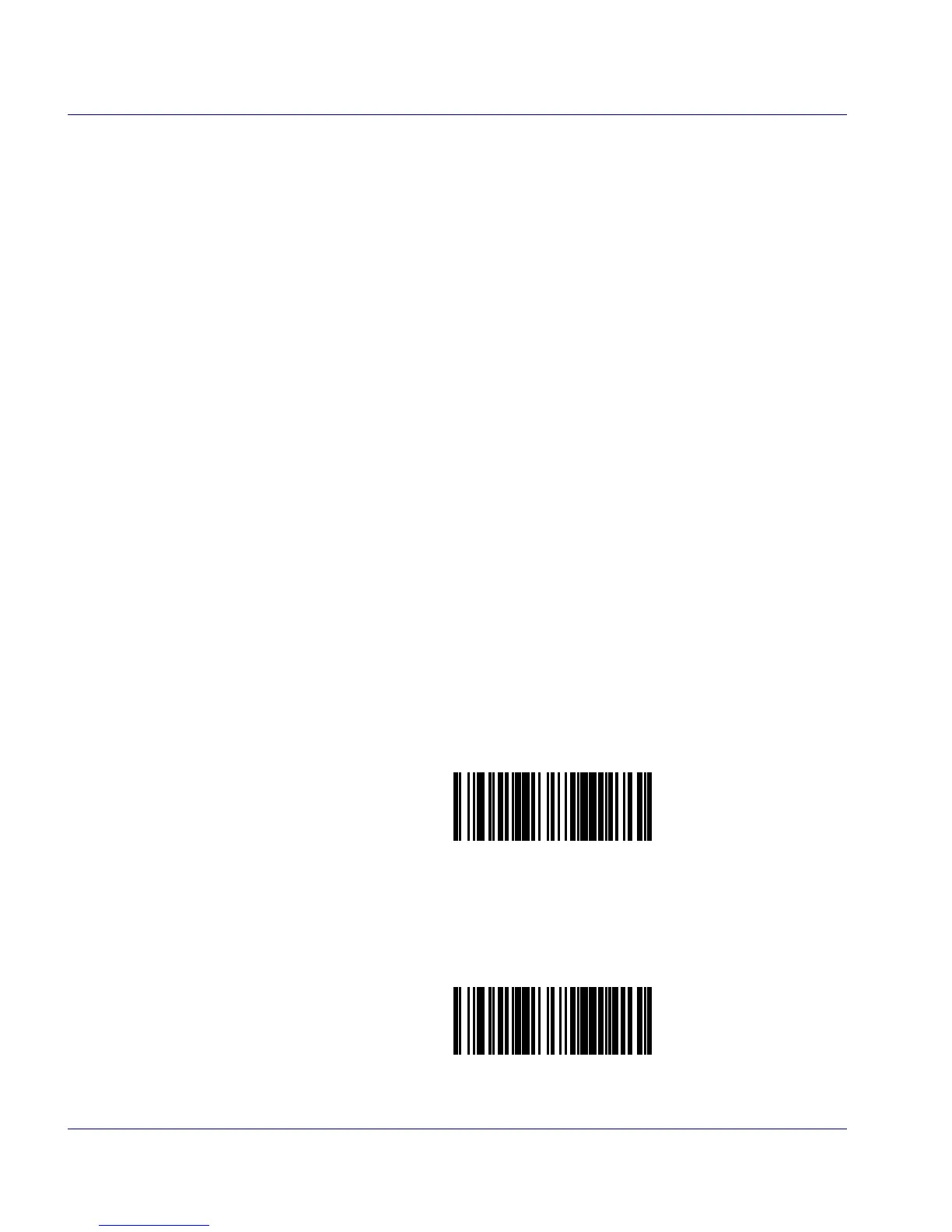

RS-232 ACK NAK = DISABLE
RS-232 ACK/NAK = LABEL TRANSMISSION
