Product Reference Guide 2-35
4. OPTIONAL — Route your EAS antenna cable down through
the checkstand cutout. (Reference your EAS controller’s set-up
instructions for proper EAS antenna installation.)

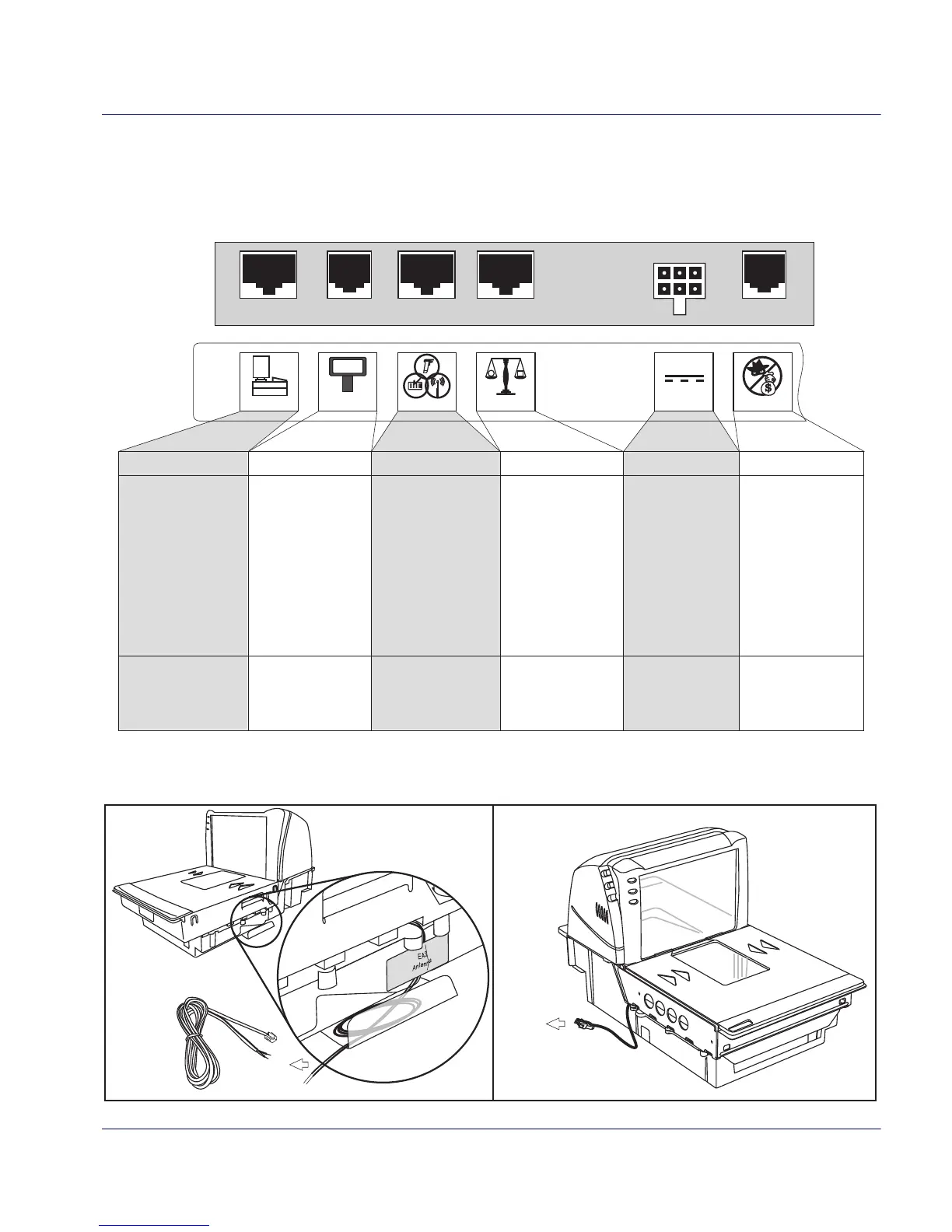

Figure 2-22. Connecting Cables to the Scanner/Scale
POS TERMINAL REMOTE DISPLAY AUXILLIARY PORT SCALE HOSTEAS PORTPOWER
Connection to
this port is
Optional
AC Brick Input
OR
Power off Terminal
(POT) Brick Input
Scale Data (dual
cable scanner/scale)
Drives Remote Display· Label Data
· Scale Data (for
single cable interfaces)
· Application Download
(where appropriate)
· Test Port
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld
Scanner Input
· Auxilliary RS-232
Label Data Output
Models with scale
only
Connection to
external Sensor-
matic
®
AMB-9010
controller box.
Controls EAS
deactivation system.
Dual cable units only.
(Scale connection may
be handled through
POS Terminal port)
POS Terminal Remote DisplayAux. Port EAS PortPowerScale Host
0.00
Figure 2-23. Optional EAS Cable Connections
To EAS
System
To EAS
System
ab
