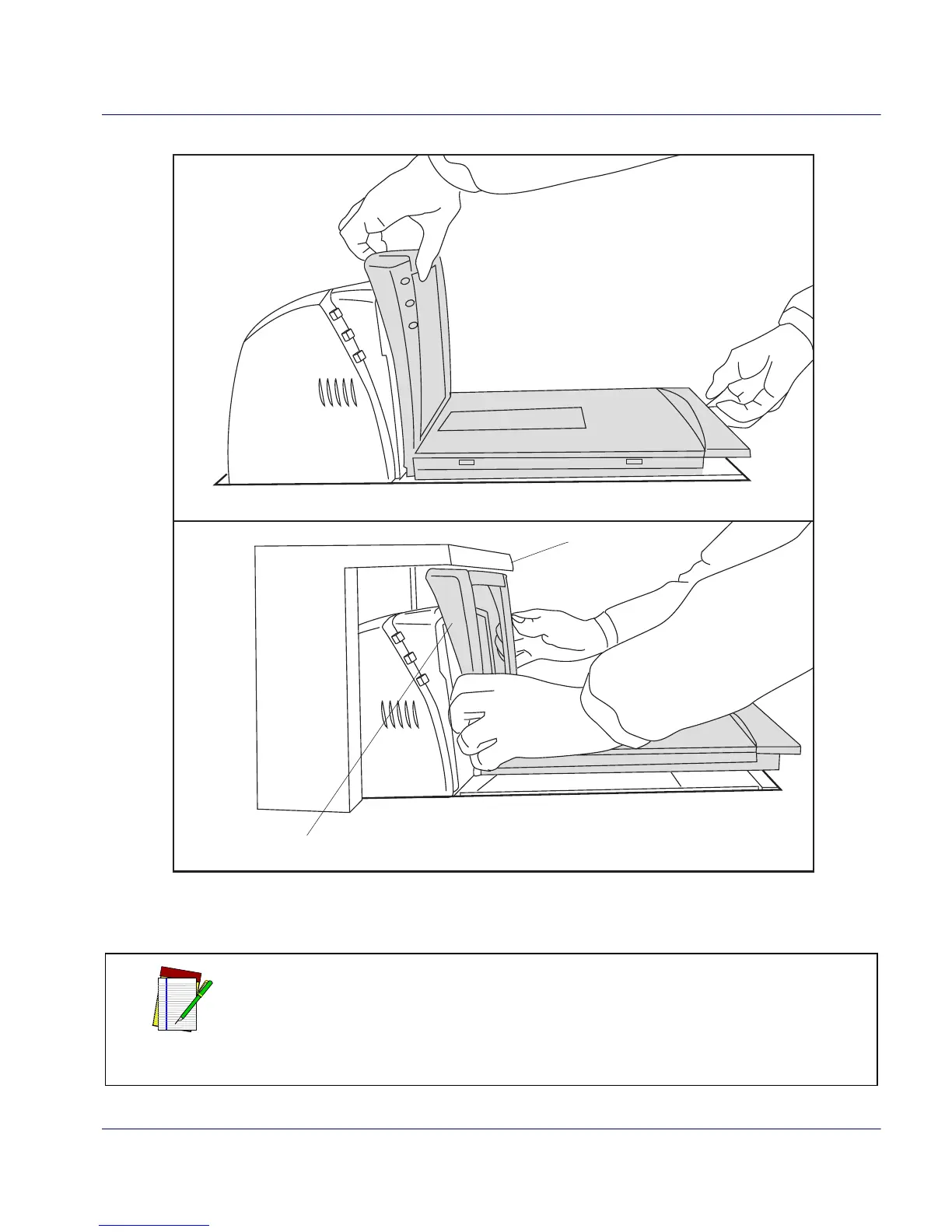

Figure 3-3. Platter Removal
Vertical Bezel
Obstruction
(Models vary)
a
b
OR
2. If the top edge of the platter is blocked, you may find it easier to
grasp the platter vertical bezel as shown in
Figure 3-3b.
NOTE
Use caution to avoid damage to the now exposed horizontal and vertical
scan windows. If cleaning of these windows is necessary, use a nonabrasive,
mild, water-based glass cleaner and paper towels or lint-free cleaning tis-
sues and take care to avoid scratching
these windows (damage to the win-
dows can degrade scanning performance).
