Configuration
142
Instructions for Use Fabius MRI SW 3.n

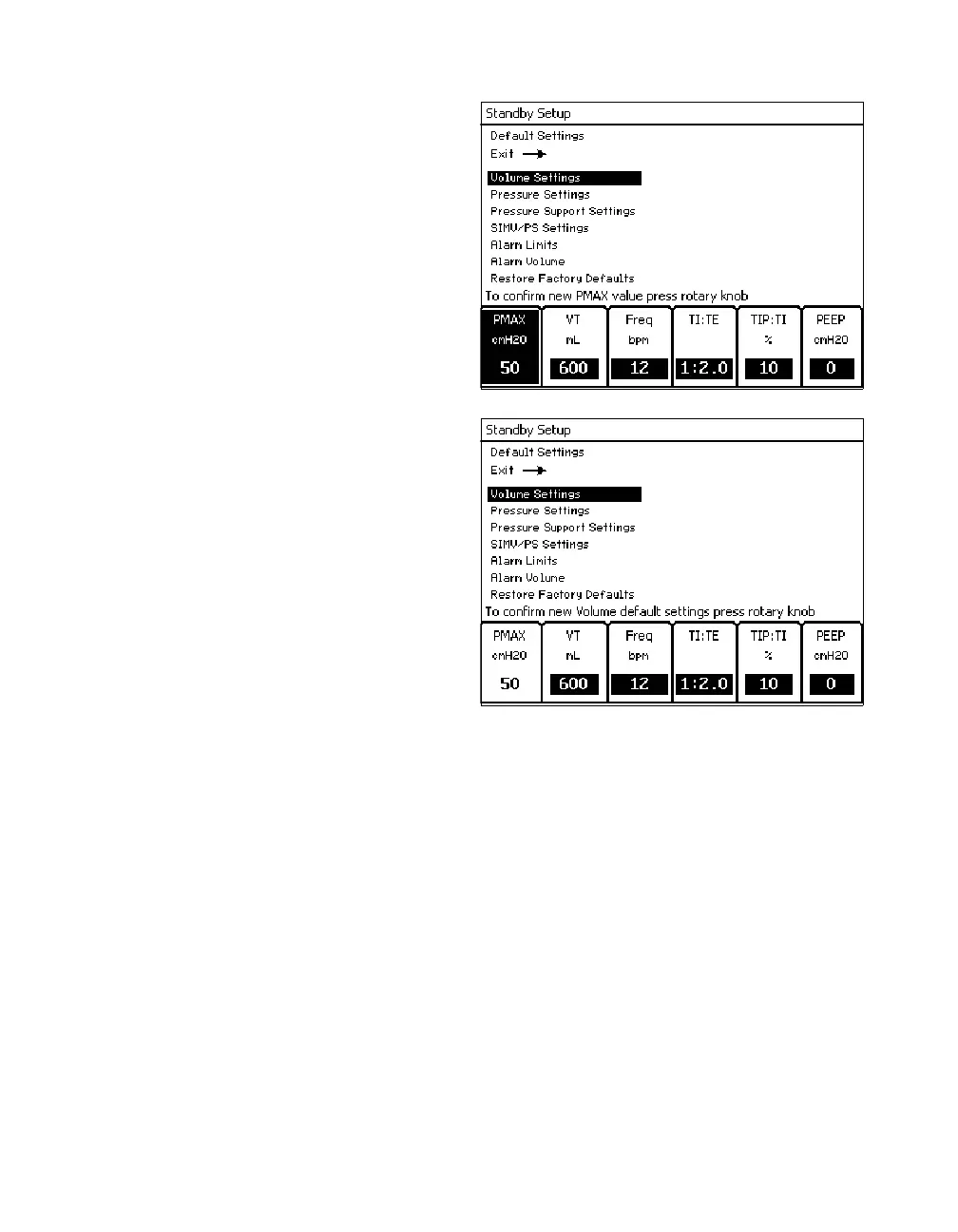

z Press the soft key for the parameter that needs
to be changed (»P
MAX« in the example illustra-
tion). The key becomes highlighted.
z Select a new P
MAX value (in the example illus-
tration, the value was changed from 40 to 50),
and confirm as instructed by the message dis-
played above the soft keys.
z If necessary, repeat the process for the other
Volume Settings parameters.
z When all Volume Settings parameters are set to
desired values, confirm the default Volume Set-
tings as instructed by the message displayed
above the soft keys.
The Default Volume Settings window is then
removed from the screen, and the cursor returns to
the return arrow.
Pressure Settings, Pressure Support Settings,
and SIMV/PS Settings
Use the procedure described in “Volume Settings”
to change the parameters associated with these
ventilator modes.
