Configuration
148
Instructions for Use Fabius MRI SW 3.n

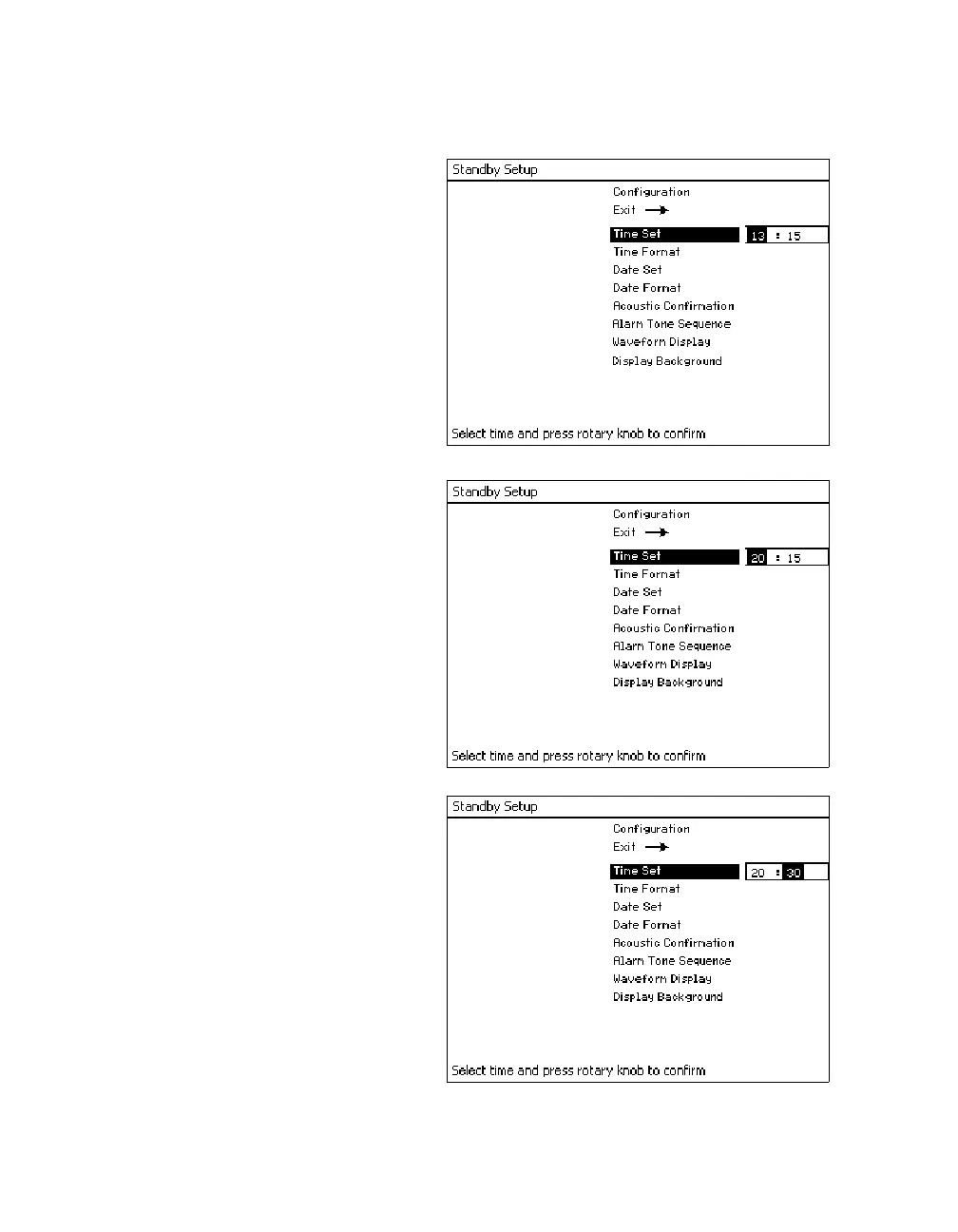

Time Set
z Select and confirm the »Time Set« label on the
Standby Setup screen. The cursor appears over
the hour field.
z Select and confirm a new hour time value (in the
example illustration, the hour was changed from
»13« to »20«). The cursor moves to the minutes
field.
z Select and confirm a new minute time value (in
the example illustration, the value was changed
from »15« to »30«).
The new time values are saved, the Time Set win-
dow is removed from the screen, and the cursor
returns to the Time Set label.
545
546
547

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
