Dräger Fabius User Manual

Instructions for Use Fabius MRI SW 3.n 151
Configuration

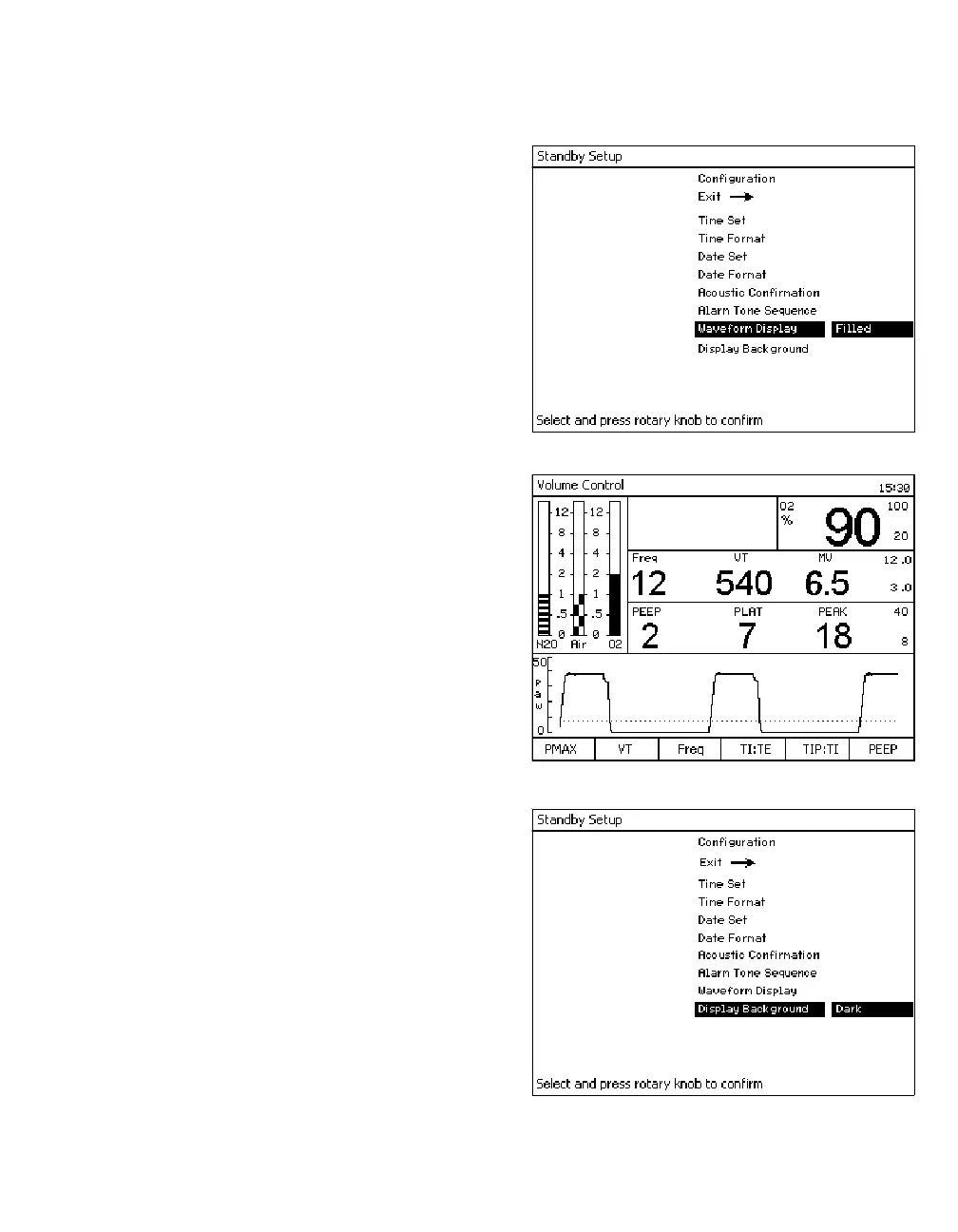

Waveform Display
The values that can be selected for the waveform
display are »Normal« or »Filled«.
Use the procedure described in “Time Format” on
page 149 to change the waveform display parame-
ter.
If »Normal« is selected, the waveform is not filled
with a solid pattern, but appears as a line, as shown
in the example illustration.
Display Background
The values that can be selected for the display
background are »Dark« or »Light«.
Use the procedure described in “Time Format” on
page 149 to change the display background param-
eter.
552
553
560

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
