Programming

314 Service Instructions 755 A/756 A - 00.0 - 02/2019

Sewing head parameters

 The display switches to Sewing head parameters.

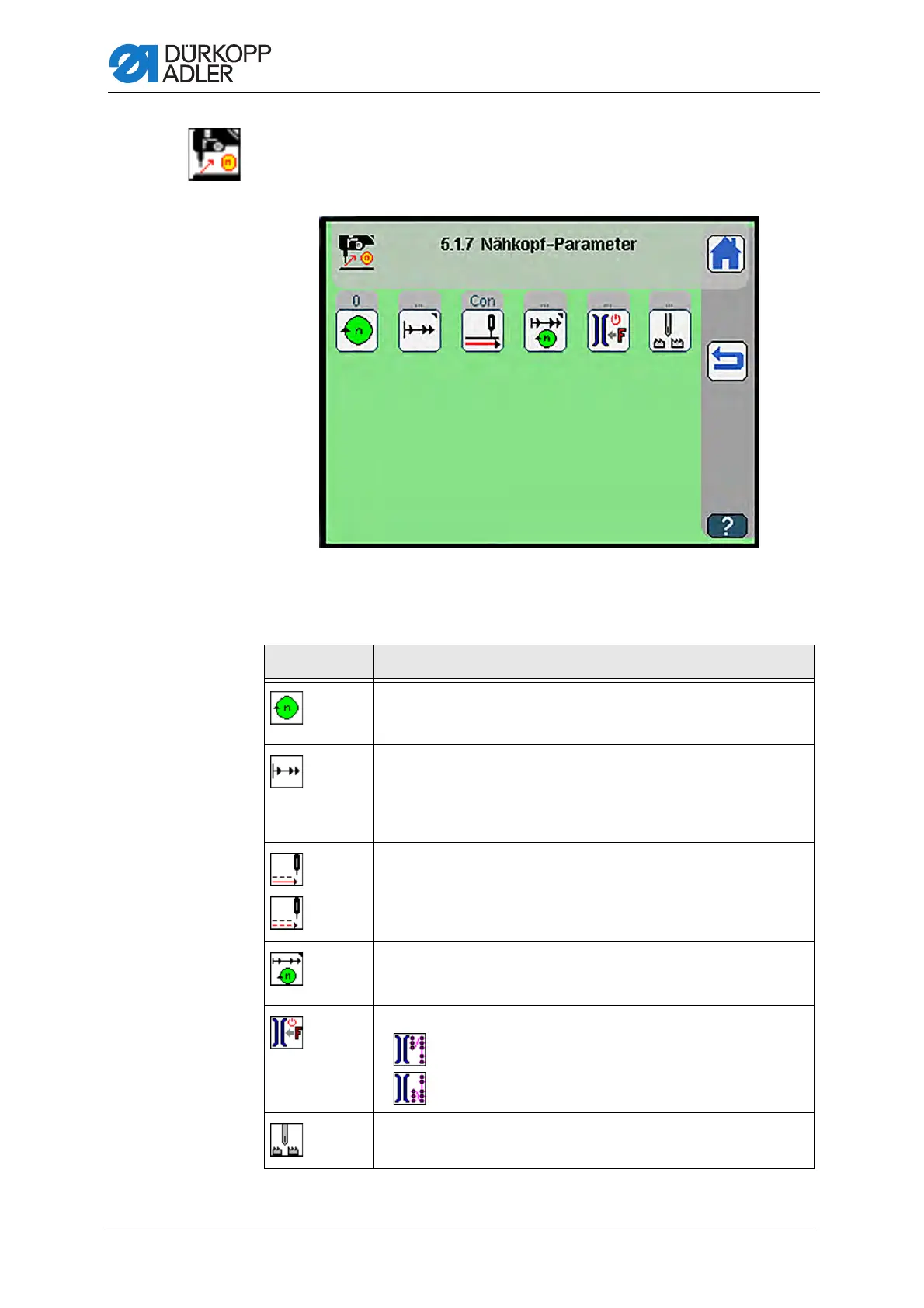

Fig. 296: Sewing head parameters

Press a button to either open another submenu or enter the desired values

directly using the numeric keypad.

Symbols Meaning

Set sewing speed

• 100 RPM - 3200 RPM (class 755 A)

• 100 RPM - 3000 RPM (class 756 A)

Set soft start parameters  p. 315

• Soft start On/Off

• Soft start speed

• Number of stitches soft start

• Number of stitches needle thread clamp open

Set continuous transport (standard)

Activate intermittent transport (custom applications)

Set seam securement  p. 316

• R.p.m. seam begin. (100 - 1500 RPM)

• R.p.m. seam end (100 RPM - 1500 RPM)

Additional thread tension

• Additional thread tension seam begin. On/Off

• Additional thread tension seam end On/Off

Needle transport (class 756 A,  p. 317)
