Epson N6 Series

Maintenance 4. Cable
N6 Rev.2 161
(54)

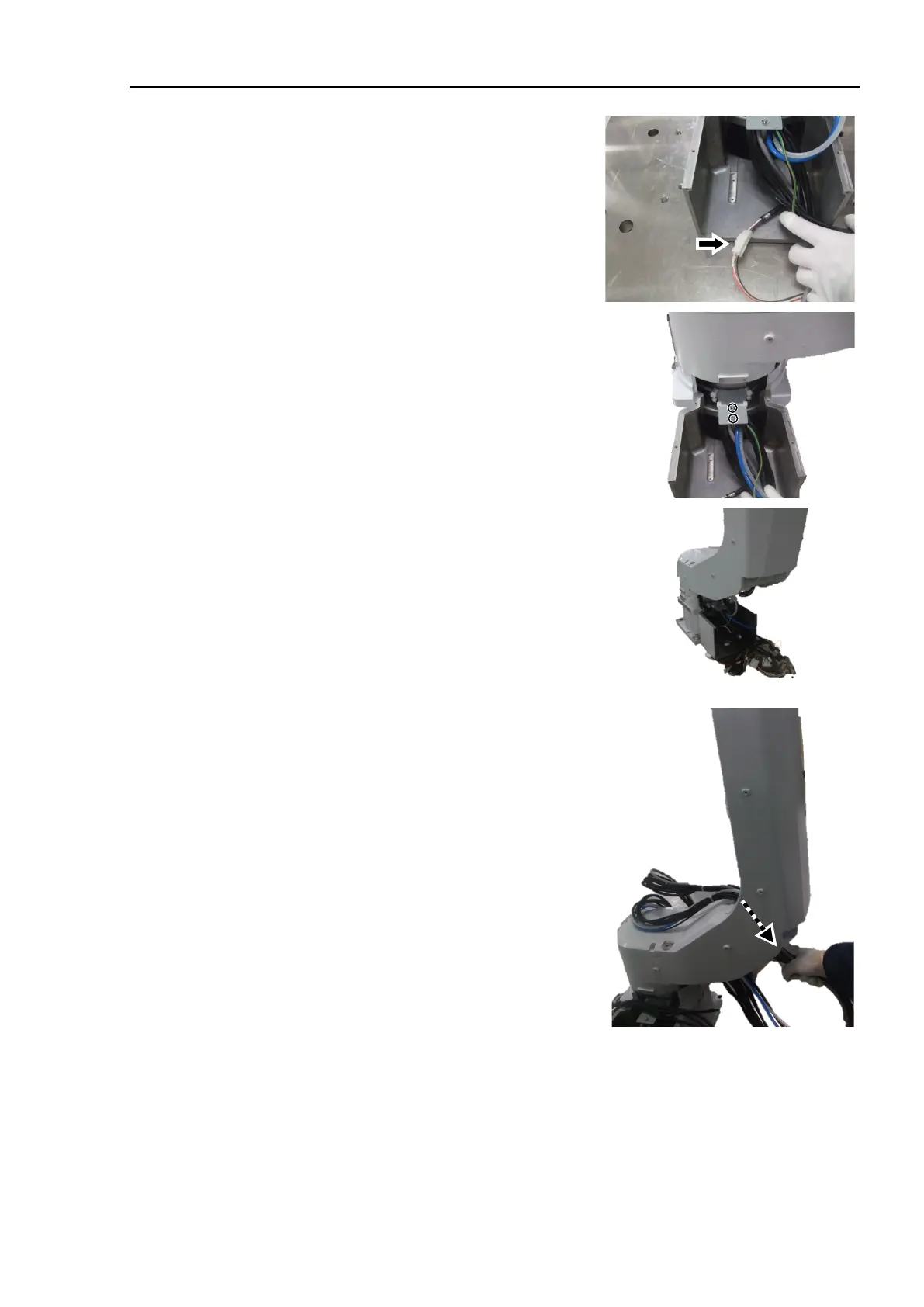

Disconnect the connector connected to the
Joint #1 actuator unit.
Connector: PW1
(55)
Remove the J1 cable fixing plate fixed on
the base.
Hexagon socket head cap bolts: 2-M4×8
(56)
Rotate the Arm #1 to the origin position.
(57)
Pull out
the cable unit from the Arm #1.
