Epson N6 Series

Maintenance 4. Cable
174 N6 Rev.2
(30)

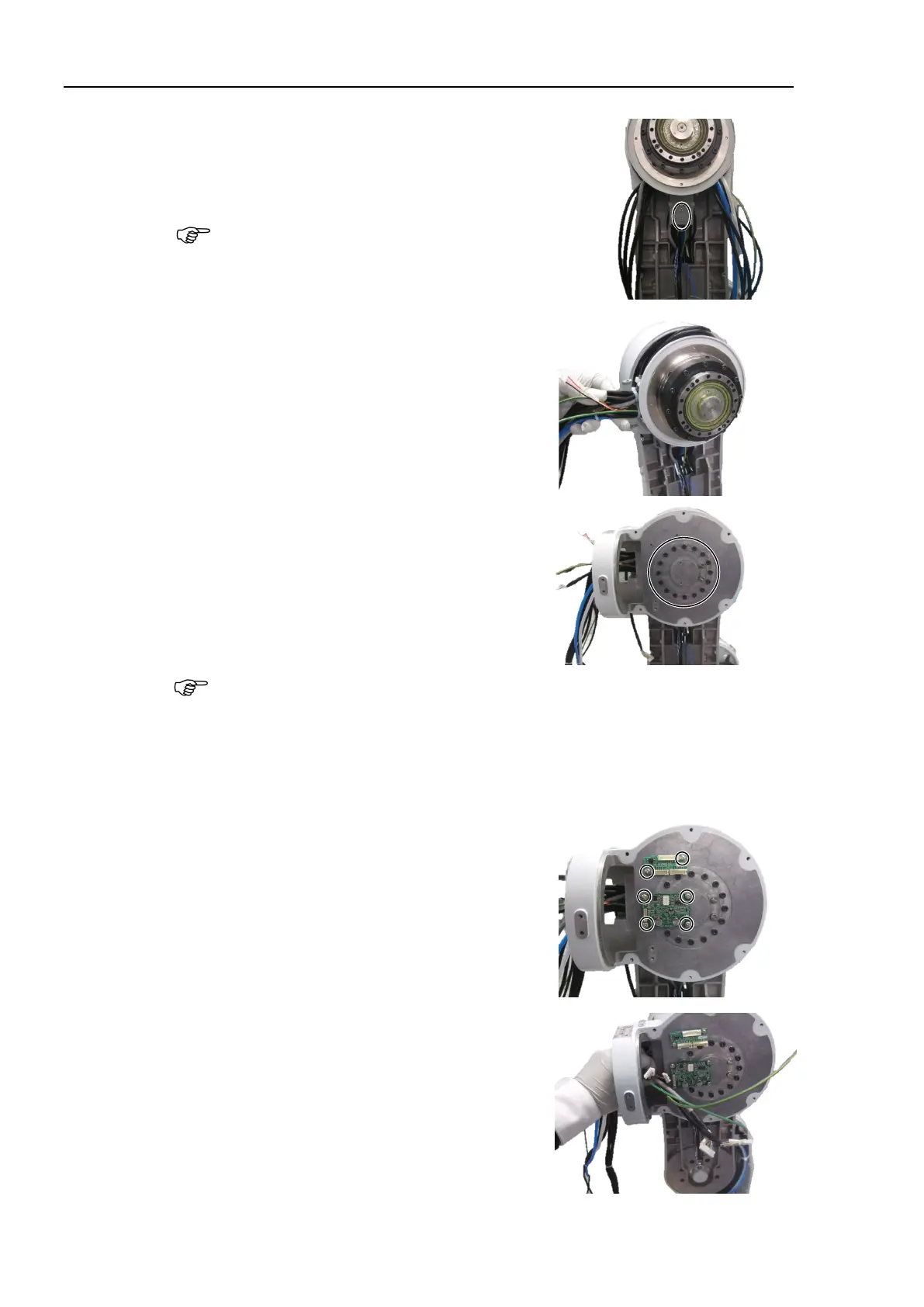

Install the cable fixing plates to Arm #2.
Hexagon socket head cap bolts: 2-M4×8
Tightening torque: 4.0 ± 0.2 N·m
Be
careful not to tighten the screws with the
cables get caught on the plate
.
(31)
To face the two cable fixing plates, bend the
cable unit and pass it through the Joint #3.
(32)
Install the Arm #3 with approx.
- 90 degrees
while inserting the cable unit to the Arm #3.
Hexagon socket head cap bolts:
16-M4×30 (with plain washer)
Tightening torque: 5.5 ± 0.25 N·m
Be sure to have at least 2 people to
perform the operation since the parts being
heavy.
Be careful not to
catch the cables.
Make sure that the
O-ring will not be out of the groove.
Do not apply excessive shock to the parts.
(33)
Install the encoder board 3 and
the control
board 2.
Cross recessed binding head machine screws:
6-M3×6
Tightening torque: 0.45 ± 0.05 N·m
(34)
Pull the cables (connectors) to the outside of
the Arm #3.
Cables (connectors):
PW4, BR4, EB04_CN1, GS02,
EB04_CN3, two ground wires

