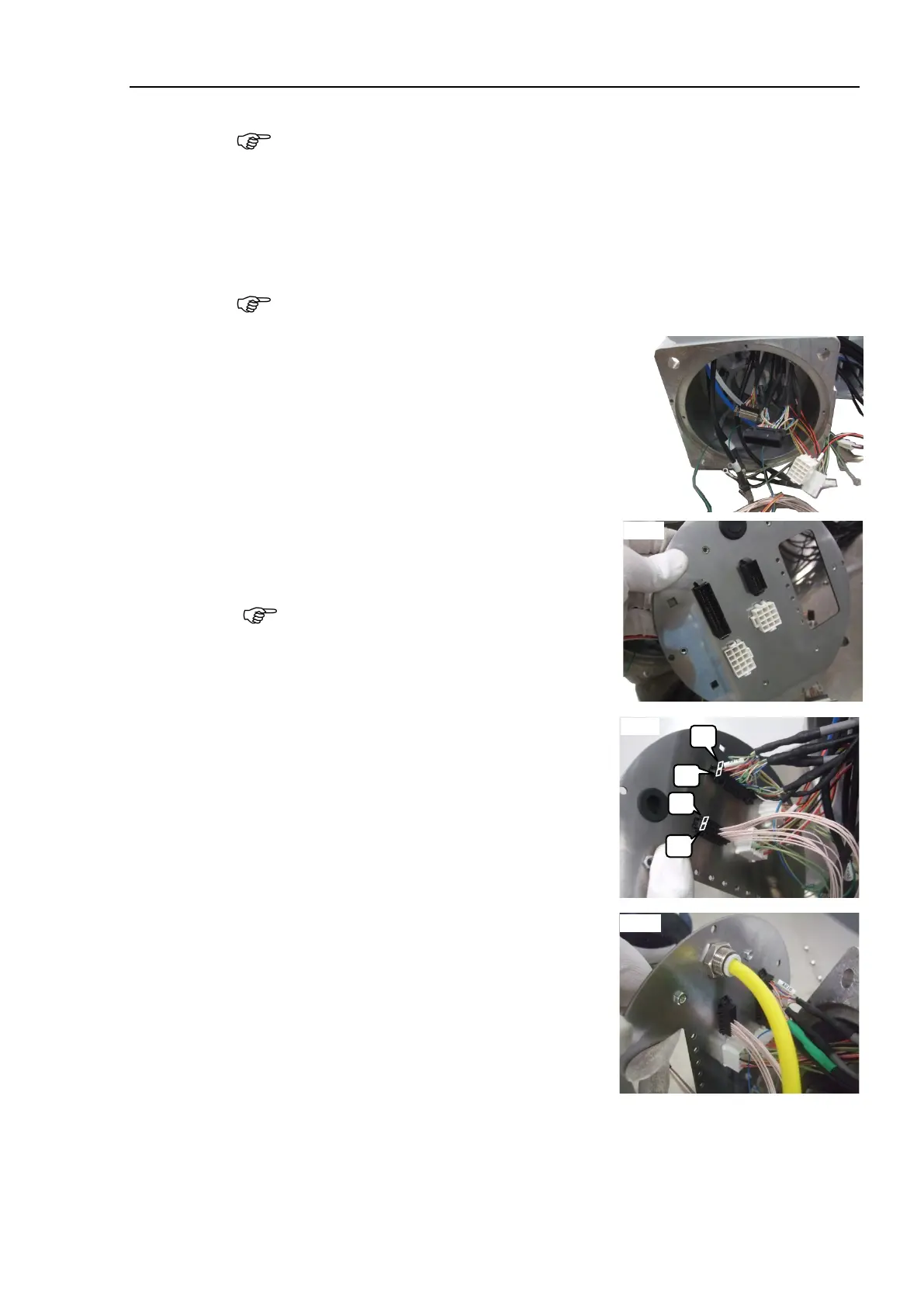

Maintenance 4. Cable
N6 Rev.2 189
The
subsequent steps are described with the standard model’s cable unit.
For cleanroom model, a yellow air tube is included in the cable unit.
Installation
Cable Unit
(Cable direction:
Upward and
Downward)
(1)
Perform the Installation steps
(1) through (8) in Maintenance 4.1 Cable Unit: Cable
direction Standard (backward)
.
(2)
Lay down the Manipulator.
Manipulator is heavy.
Be sure to have at least 2 people to perform the operation.
(3)
Pull out the cable unit except the following
cables.
Cables (connectors):
BRK_CN2, EB01_CN3, ground wire
(4)
Connect the connectors to the plate part 3
Connectors: X11, X12, X010, BR010
There are the front side and the back side on
the plate part 3.
Be careful for the directions.
Front
Refer to the right picture for installation
direction of black colored connectors (X010,
BR010).
Back
A
B
A
B
For
cleanroom
model, connect the yellow air
tube to
the fittings.
Back
NOTE
NOTE
NOTE
