Maintenance 4. Cable
222 N6 Rev.2
(4
7)

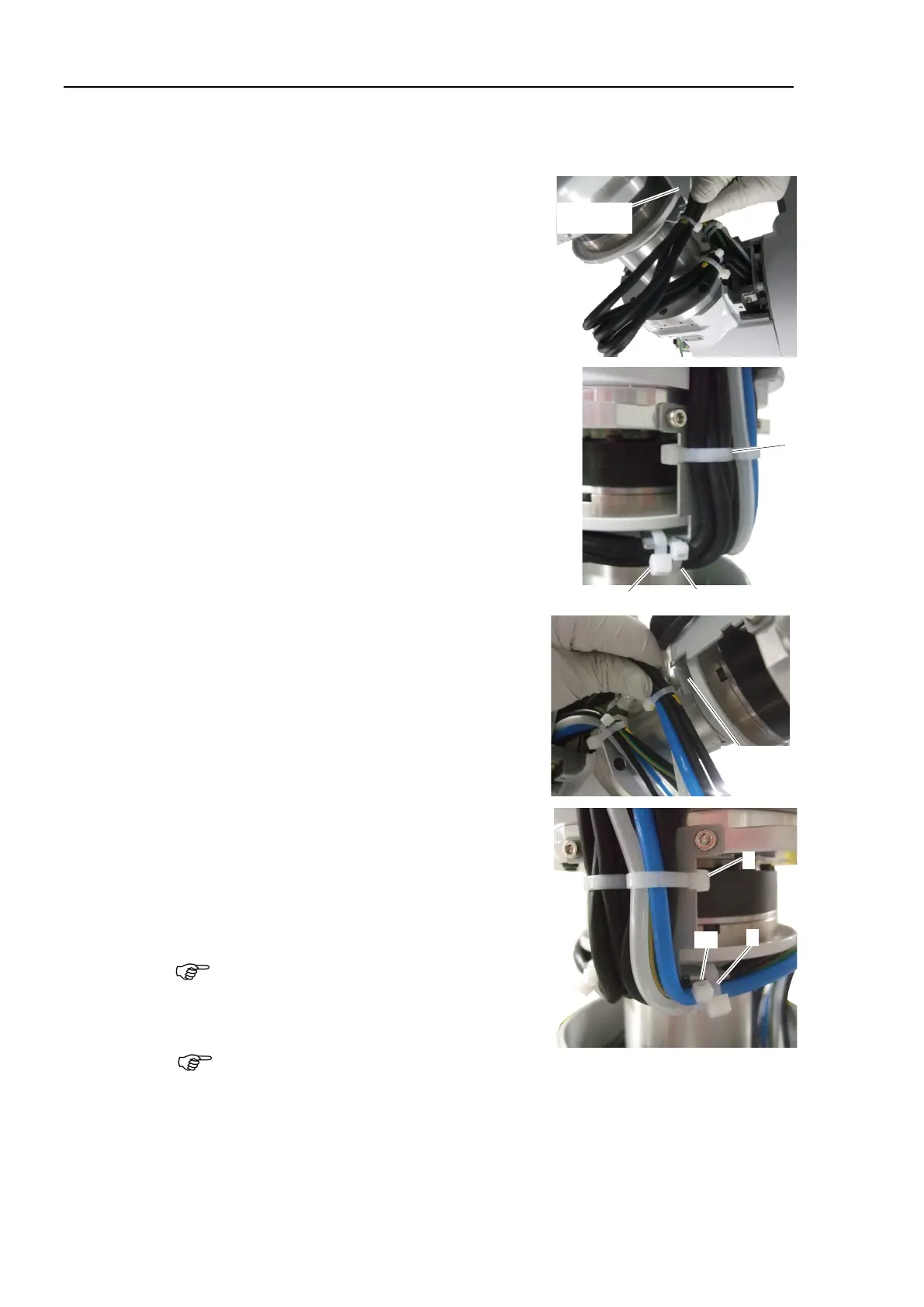

Fix the cable unit
on the cable fixing plate.
Follow the steps below:
C
able A
Bend the cable so that the mark near the
cable tie A8 will be on the cable fixing
plate side.
Cable
fixing plate
As shown on the right, set the position of
the cable tie A8 to the cable fixing plate
and fix it by using cable ties 1 and 2.
Cable ties (AB200) × 2 (1 and 2)
Tightening strength: 85 ± 5 N
1
A8
2
C
able B
Bend the cable so that the mark near the
cable tie B8 will be on the cable fixing
plate side.
Cable
fixing plate
As shown on the right, set the position of
the cable tie B8 to the cable fixing plate
and fix it by using cable ties 3 and 4.
Cable ties (AB200) × 2 (3 and 4)
Tightening strength: 85 ± 5 N
Be careful not to bend the air tubes.
3
B8
4
Refer to the figure for positions of the cable tie heads.
Rotate the heads of the cable ties A8 and B8 to set positions.
Be careful for the orders and the positions of the cable ties.
D
istance between the cable tie 1 and A8, and 3 and B8 should be as close as possible.
Improper order or position of the cable tie may shorten the life cycle of the cables.

NOTE

NOTE
