Maintenance 4. Cable
N6 Rev.2 223

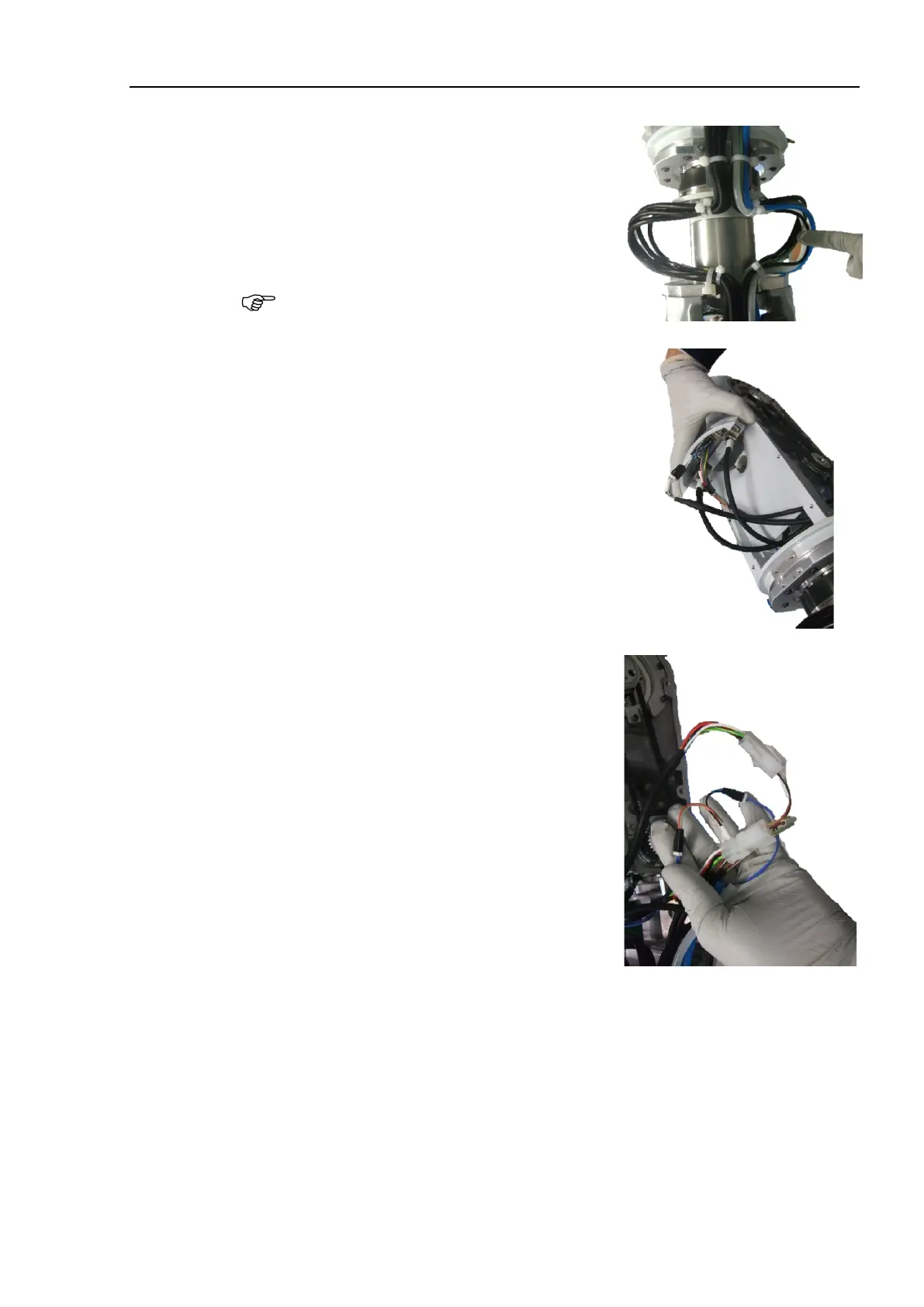

Apply the grease to the cables between the
cable tie A7 and A8, and B7 and B8.
Grease:
Krytox: Cable A and B
Standard model : 0.5g for each
Cleanroom model : 0.8g for each
Apply the grease to each cable evenly.
Pass the cables (connectors) through the Arm
#4 and connect them to the user attachment.
Cables (connectors):
Ether1, Ether2, X71, X72
Connect the Ether1 and Ether2 depending on
the user attachment display.
)
Connectors: PW5, PW6, BR5, BR6
