Maintenance 4. Cable
N6 Rev.2 225
(54)

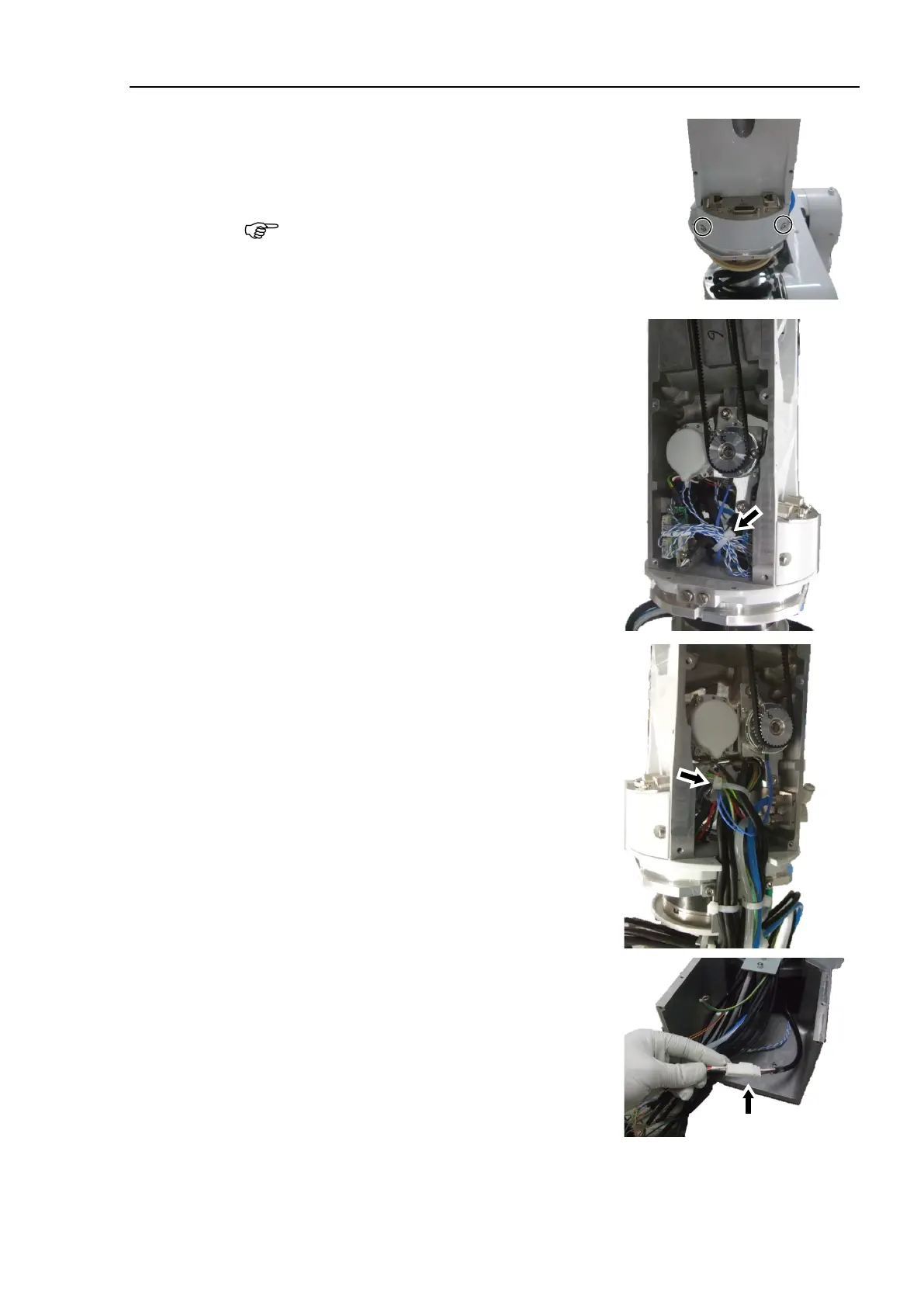

Install the user attachment on the Arm #4.
Hexagon socket head cap bolts: 2-M4×8
Tightening torque: 4.0 ± 0.2 N·m
Be careful not to get the cables caught.
(55)
Bundle the cables with the cable tie to prevent
the cables from interfering with the pulley or
belt.
Cable ties (AB200) × 2
(5
6)
Connect the connector.
Connector: PW1

NOTE
