Epson N6 Series User Manual

Maintenance 4. Cable
236 N6 Rev.2
(10)

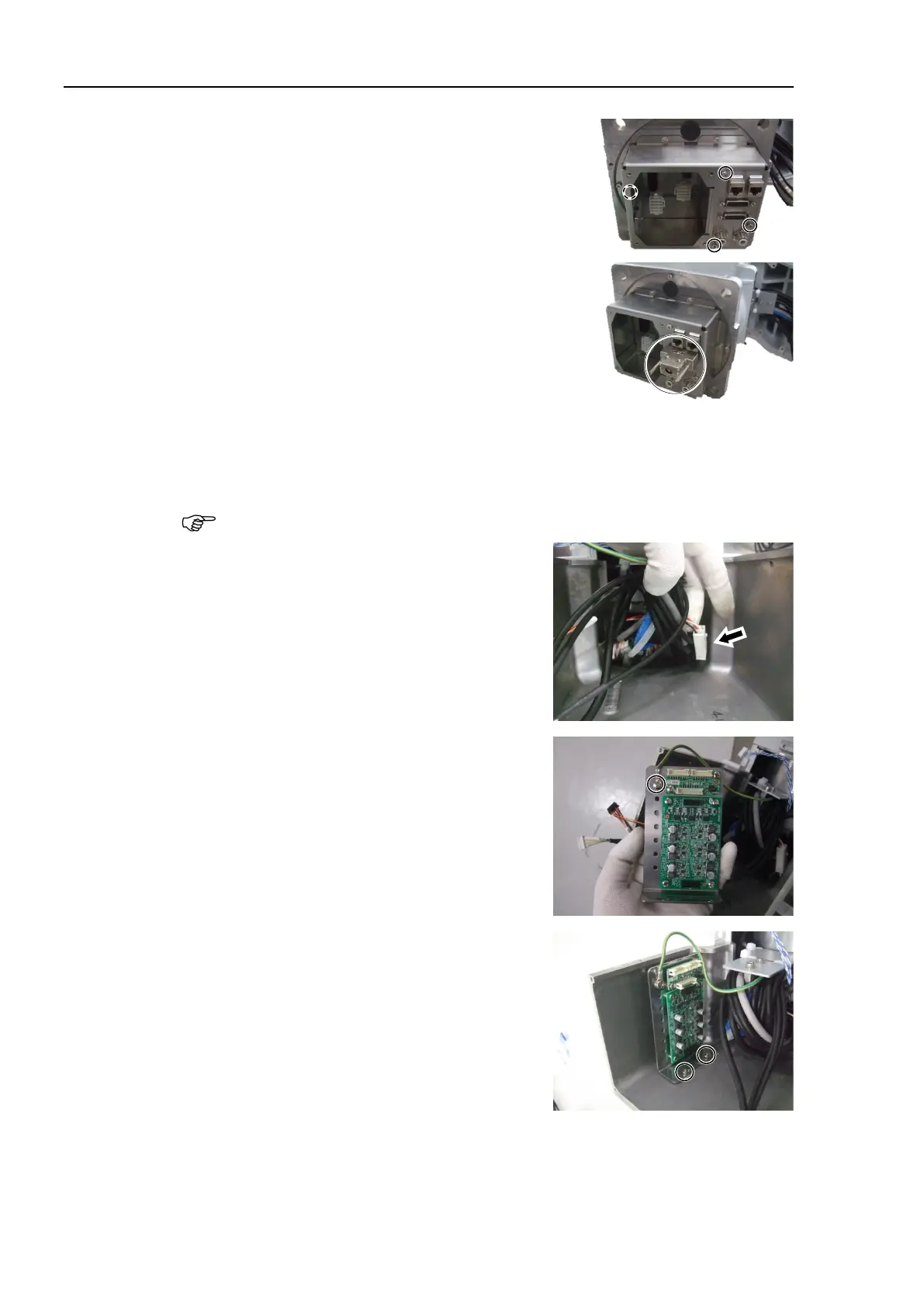

Install the plate part 1.
Hexagon socket head cap bolts: 4-M4×8
Tightening torque: 4.0 ± 0.2 N·m
(11)
Connect the external short connector.
(12)
Connect the M/C cable.
For details, refer to Maintenance 4.6. M/C Cable.
(13)
Mount the Manipulator on the base table.
Be sure to have at least 2 people to mount the Manipulator.
(14)
Connect the connectors.
Connector: PW1
(15)
Install the ground wire terminal on the
board
fixing plate.
Cross recessed binding head machine screw:
M4×8
Tightening torque: 0.9 ± 0.1 N·m
(16)
Install the board fixing plate in the back of the
base.
Hexagon socket head cap bolts: 2-M3×6
Tightening torque: 2.0 ± 0.1 N·m

NOTE
