Epson N6 Series User Manual

Maintenance 4. Cable
N6 Rev.2 257

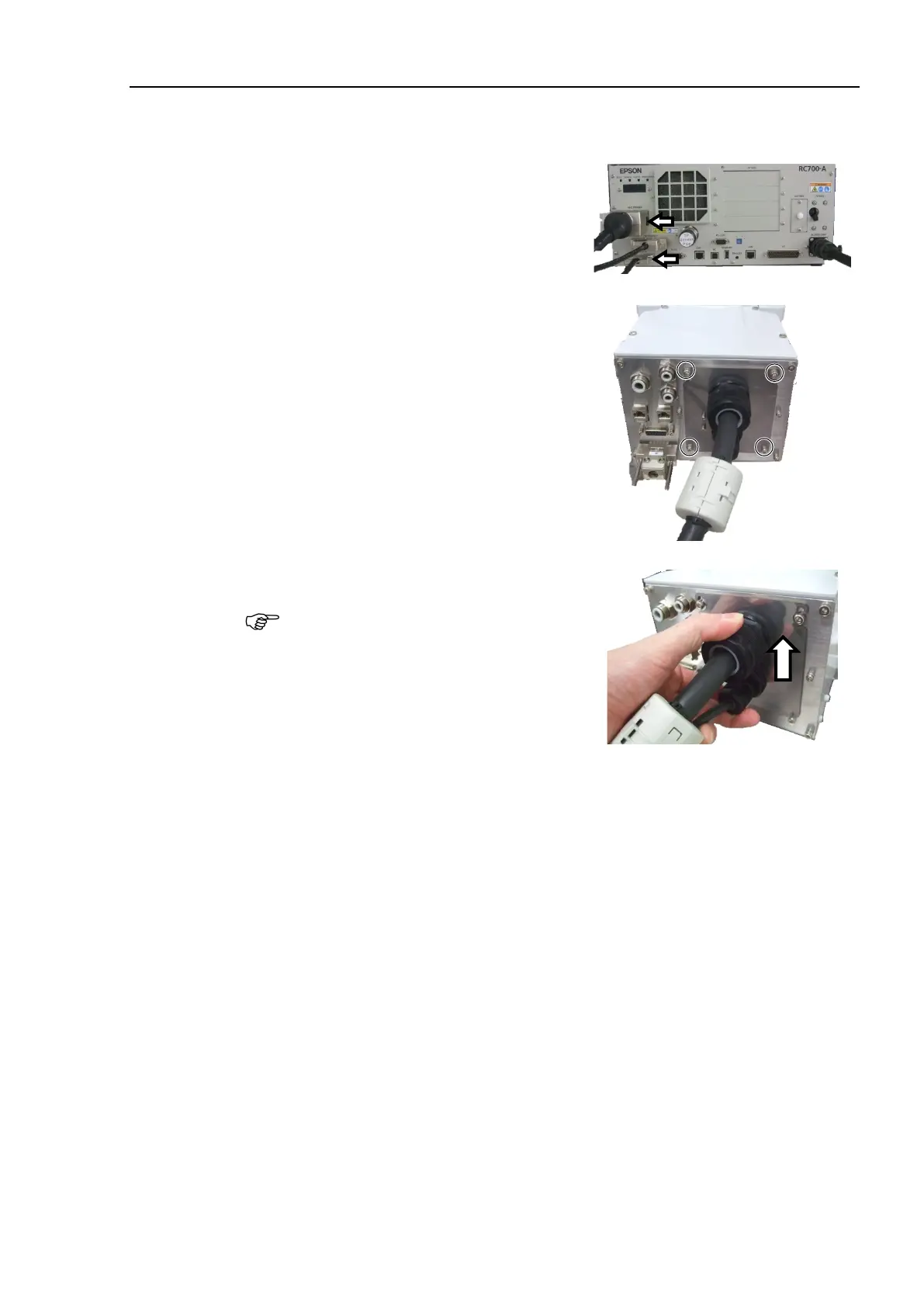

Removal
(1)
Turn OFF the Controller.
M/C
cable
(2)
Disconnect the following connectors
from the Controller.
Power cable connector
Signal cable connector
(3)
Loosen the bolts fixing the plate.
You do not need to remove them
completely.
Hexagon socket head cap bolts: 4-M4×8
(4)
Slide the plate upward to remove
it.
Do not pull the M/C cable after removing
the plate.
M/C cables are connected by
the connectors. Doing so may result in
disconnection of the cables.

NOTE
