Setup & Operation 6. Options
N6 Rev.2 87

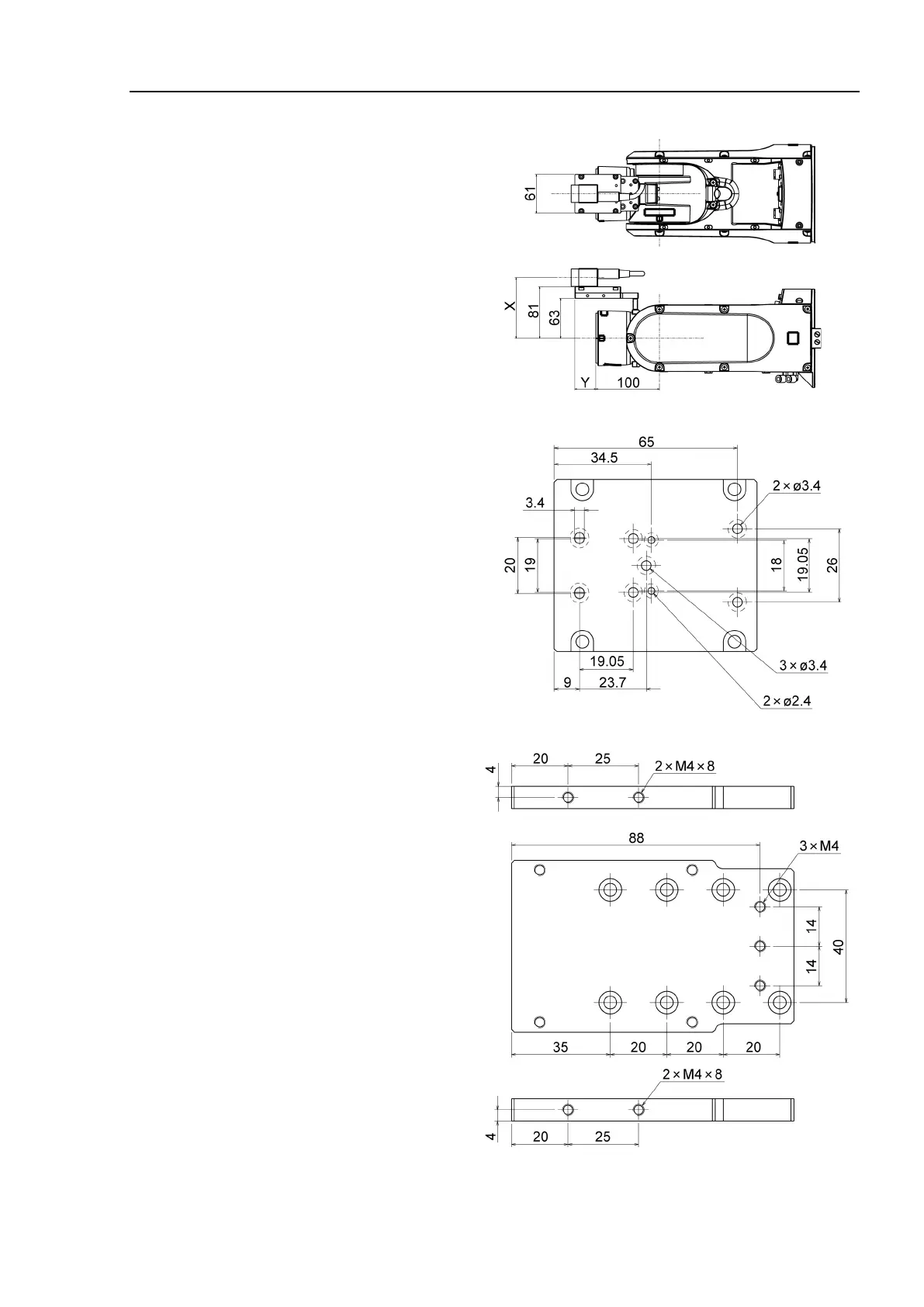

Dimension of the camera plate unit
Dimensions X and Y vary
depending on the position of the
camera mid plate and camera size.
Refer to the table below for the
values.
Camera adapter plate
Mounting holes to be used are
different depending on the camera.
Camera mid plate
The camera mid plate uses the
mounting holes A to D.
By using the different mounting
holes, it can be mounted to the
camera base plate in the
different four positions.
