HP-GL2 Emulation
537
Appendix
15
If there are no IW commands in the data, the active coordinate area is determined by
Adapted.
IP
The area that encompasses all the areas specified by IP commands in the data
becomes the active coordinate area.
If there are no IP commands in the data, the active coordinate area is determined by
Adapted.
Adapted
The ACA is determined by the following conditions.
Min/Max position coordinates plotted by drawing commands
Max font size specified within the page
Max line width
PS
The area that encompasses all the areas specified by PS commands in the data
becomes the active coordinate area.
If there are no PS commands in the data, the active coordinate area is determined by
Adapted.
îš„Paper Margin
Set the range from 0 to 99 mm. The default value is 0 mm. To get the active coordinate
area, subtract the area set in paper margins from the ACA obtained in the area
determination mode.
îš„Scaling Mode
Select the mode for determining the document size from the obtained ACA. Also, judge
whether it will be portrait or landscape according to the ACA.
If it is an ACA
To get the document size, subtract the area set in paper margins from the area
obtained in the area determination mode.
If it is a Paper Size
Set the document size from the obtained ACA and the origin point setting. The
document size can be selected from A-size papers (6 sizes: A0, A1, A2, A3, A4 or A5).

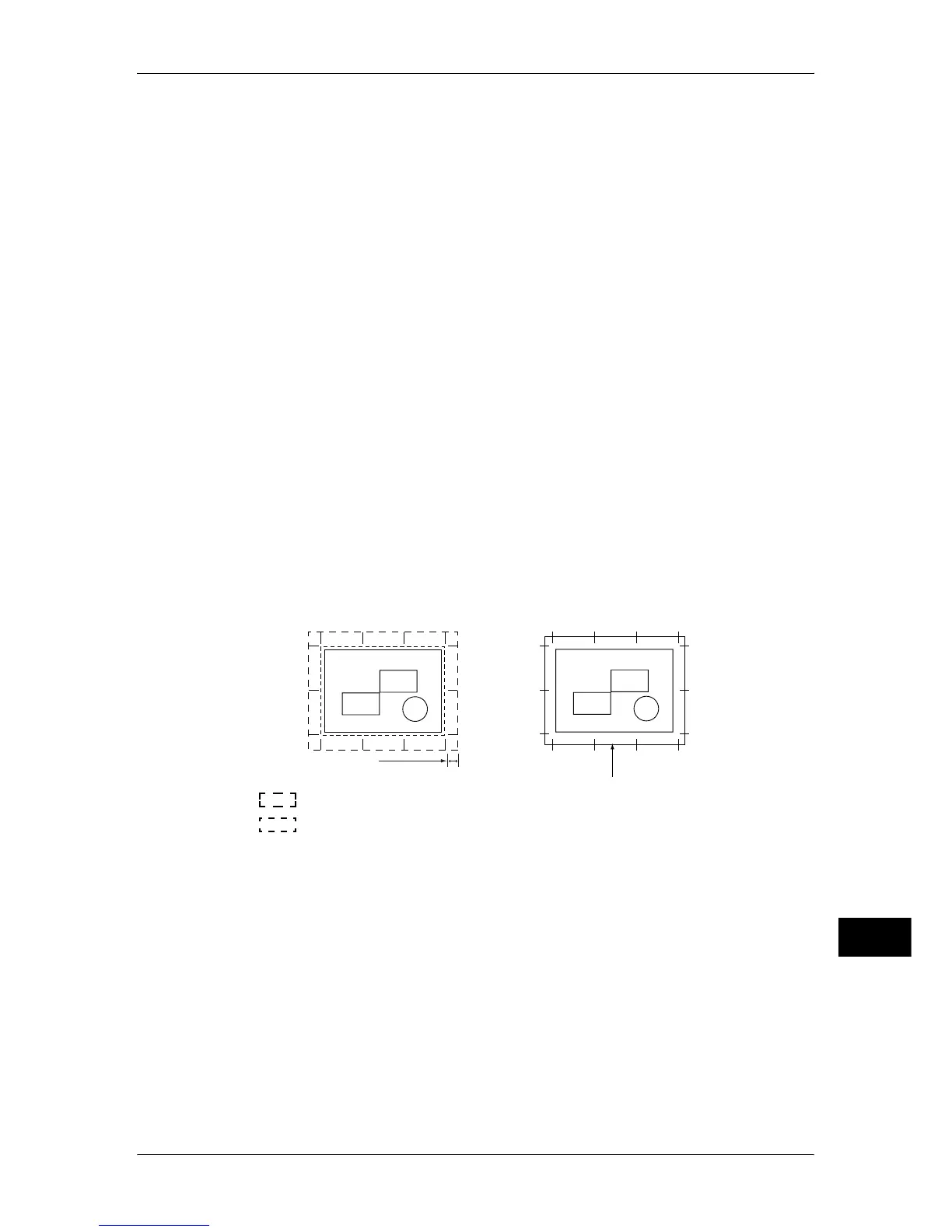

Area obtained by area determination mode
Area left when paper margin subtracted from
area obtained by area determination mode
Cannot plot as hard clip is
exceeded
Paper Margins
To Next Page
