Printable Area
503
Appendix
15
Printable Area
The area on paper that can be printed is as follows.
Standard Printable Area
The standard printable area is the area on paper excluding the 4.0 mm margins on all
four edges of paper. For SRA3 (320 mm width), the printable area is the area on paper
excluding the 11.5 mm left and right margins. The actual printable area, however, may
vary depending on the printer (plotter) control language.
Extended Printable Area
With the extended printable area setting, for printing, the printable area can be
extended to 305.0 x 476.6 mm, and the print assured area can be extended to 297.0 x
476.6 mm at a maximum. For copying, both the printable area and the print assured
area can be extended to 297.0 x 432.0 mm at a maximum.
The un-printable area, however, may vary depending on the size of paper.
Note • To extend the print area, change the PCL print driver setting, or the [Print Area] setting on
the touch screen.
For the setting method on the print driver, refer to the online help provided for the print driver. For more
about the setting on the control panel, refer to "Print Area" (P.177).

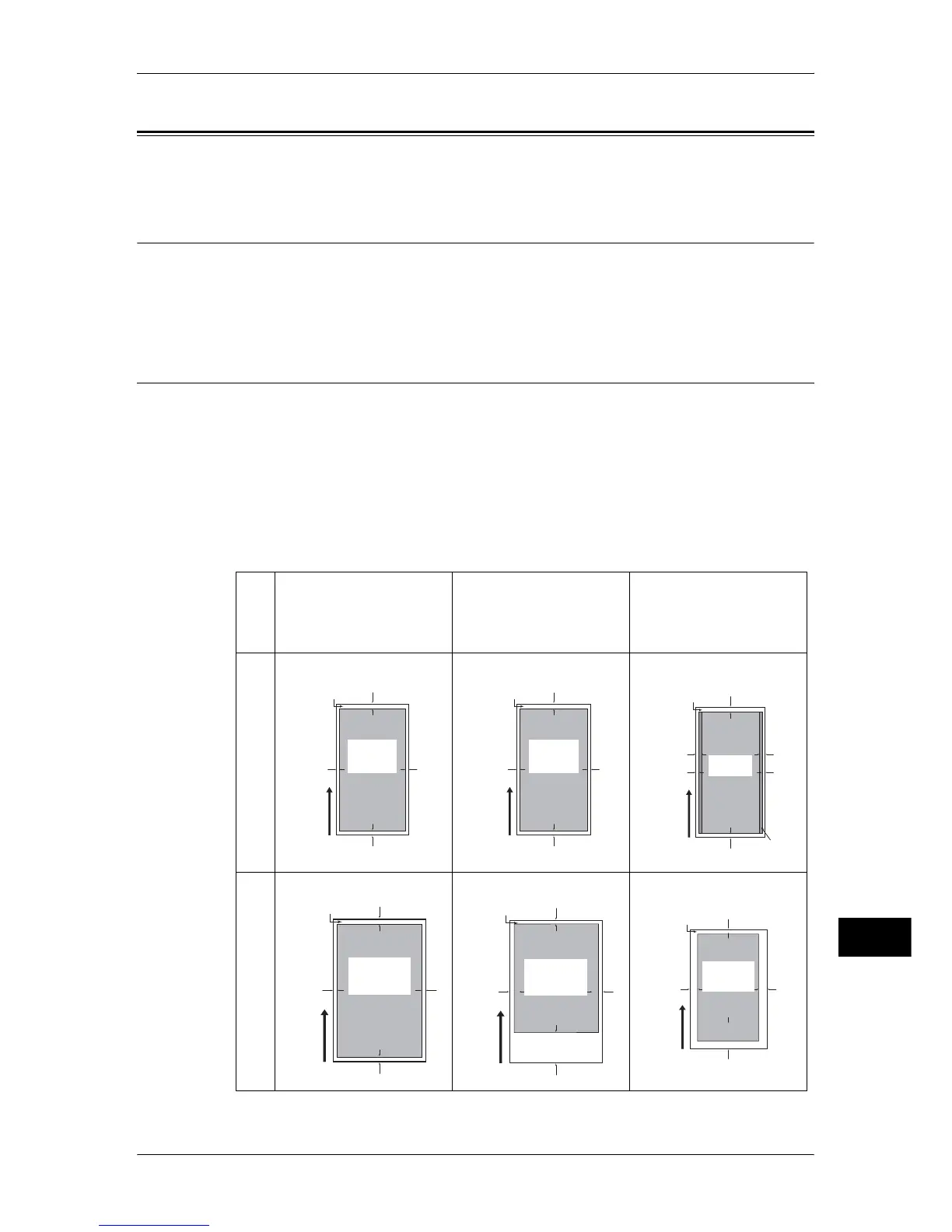

îš„When the paper
width is less than 12
inches (A3)
îš„When the paper
width is 12 inches (12
x 19)
îš„When the paper
width is 12.6 inches
(SRA3 (320 mm
width))
Printer
4mm
2mm
2mm
2mm
Unprintable area
Printable area/
Guaranteed
print area
Paper feed
direction
4mm
4mm
2mm
4mm
Unprintable area
Printable area/
Guranteed print
area
Paper feed
direction
4mm
4mm
7.5mm
7.5mm
Unprintable area
Guranteed print
area
Printable area
11.5mm
11.5mm
Paper feed
direction
Copy
4mm
2mm
2mm
2mm
Unprintable area
Printable area/
Guranteed print
area
Paper feed
direction
4mm
4mm
50.6mm
4mm
Printable area/
Guranteed print
area
Unprintable area
Paper feed
direction
4mm
11.5mm
18mm
11.5mm
Printable area/
Guranteed print
area
Unprintable area
Paper feed
direction
To Next Page
