Replacing Consumables
57
Maintenance
3
3

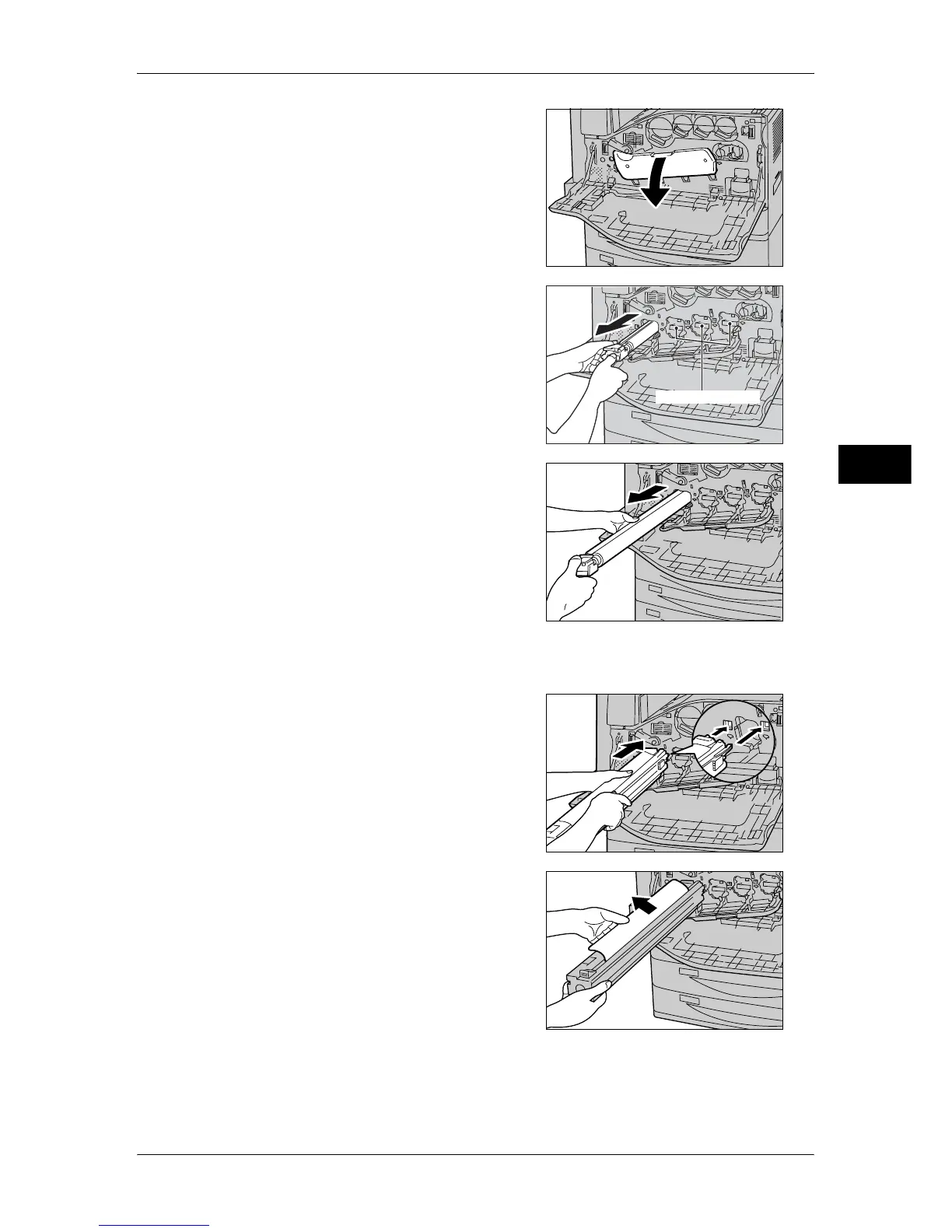

Pull the cover towards you.
Note • The drum cartridge is unlocked.
4
Grip the handle of the drum cartridge shown
in the message (R1, R2, R3, or R4) and
gently draw out.
Important • When drawing the drum cartridge out, be
careful not to drop the cartridge on the
floor.
Note • This section explains how to replace the
drum cartridge R1, as an example.
5
Hold the bottom of the drum cartridge as
shown in the illustration, and pull it out from
the machine.
Important • Be careful not to touch the toner attached
to the cartridge.
6
Take the new drum cartridge out of the box,
and put the used drum cartridge into the
supplied plastic bag and place it into the box.
Important • Do not place the new drum cartridge in an
upright position.
• If you have a used drum cartridge no longer needed, contact your local Fuji Xerox
representative for its disposal.
7
Insert the front two points of the new drum
cartridge with sheet covering into the
machine.
Note • Insert the two points as shown in the right
illustration.
8
Remove the black paper by pulling it leftward
while holding the protective sheet with one
hand. While doing so, keep the two points of
the front inserted in the machine.
Drum cartridge
To Next Page
