Installing the second HDD backplane
▶
Install the HDD backplane 2, see "Installing a 2.5-inch HDD/PCIe
backplane" on page 161.
▶
Connect cables to the HDD backplane 2, see "Connecting cables" on
page
163.
For the cable plan, see "Appendix B" on page 375.
Installing additional HDD/SSD modules

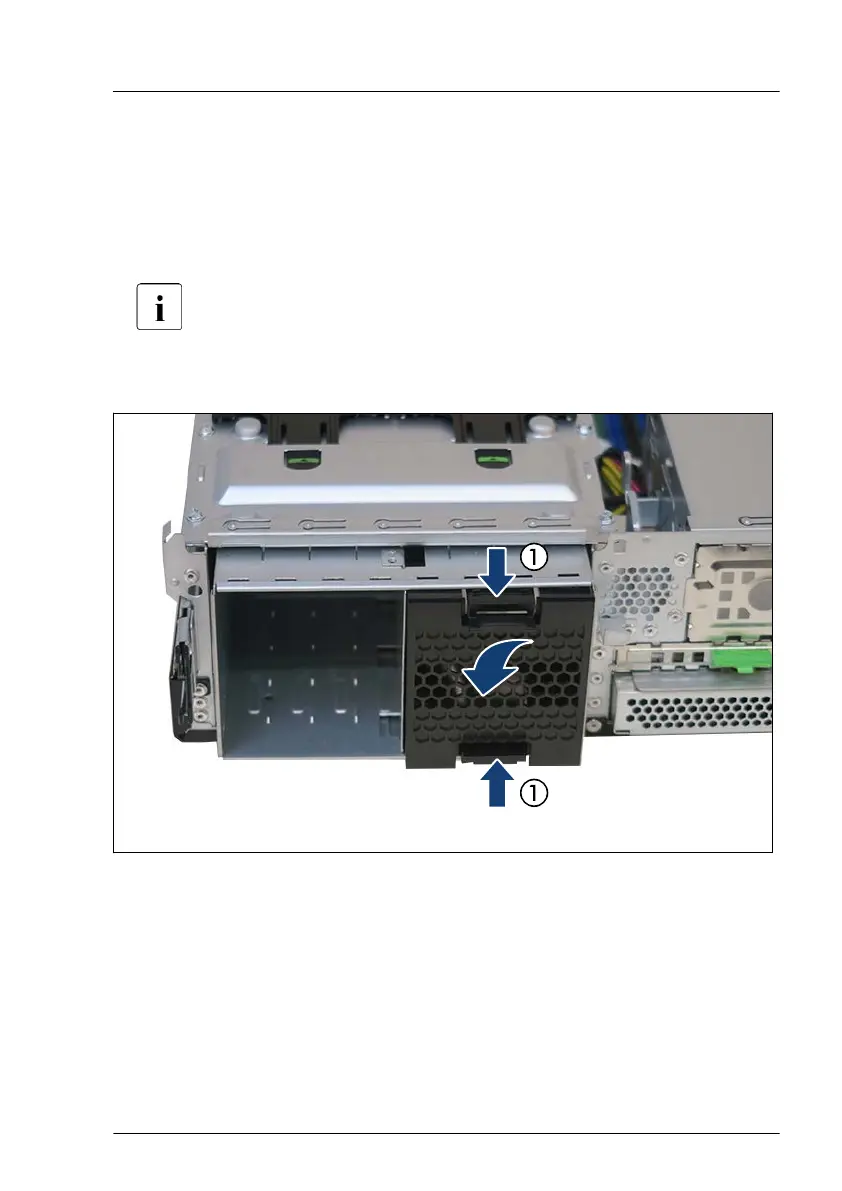

Figure 87: Removing the HDD dummy cover
▶
Press in on both release latches (1) and remove the HDD dummy cover.
▶
Insert additional HDD/SSD modules, see "Installing 2.5-inch HDD/SSD
modules" on page
152.
Hard disk drive (HDD) / solid state drive (SSD)
TX1320 M5 Upgrade and Maintenance Manual 167
