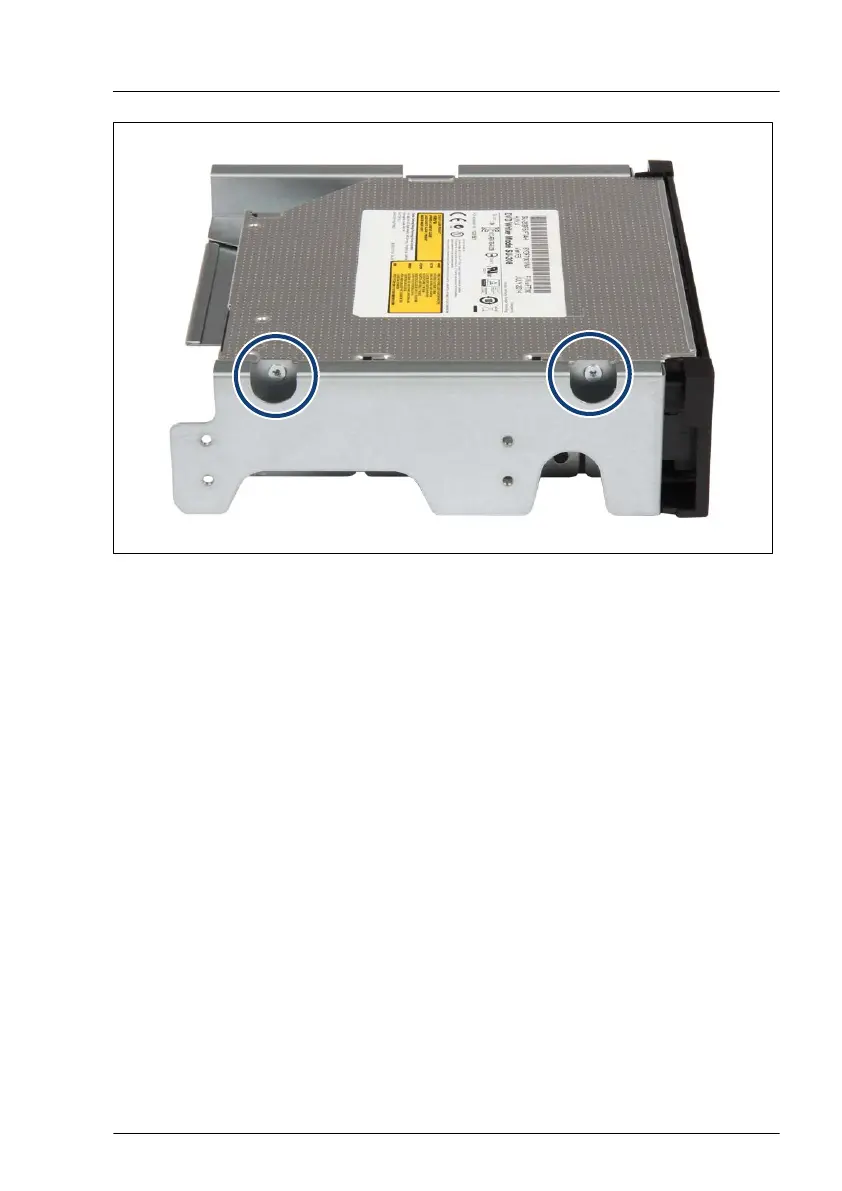

Figure 264: Installing the ultraslim ODD in the ultraslim ODD adapter (B)
▶
Fasten the ultraslim ODD to the ultraslim ODD adapter with two screws (see
circles).
▶
Connect the ODD power cable and the ODD signal cable to the ultraslim
ODD (see Figure 259).
Installing the ultraslim ODD adapter
▶
Install the ultraslim ODD adapter
, see "Installing an accessible drive" on
page 366.
▶
Connect the SA
TA cable from the ultraslim ODD to the system board, see
Figure 244.
Concluding steps
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 397
