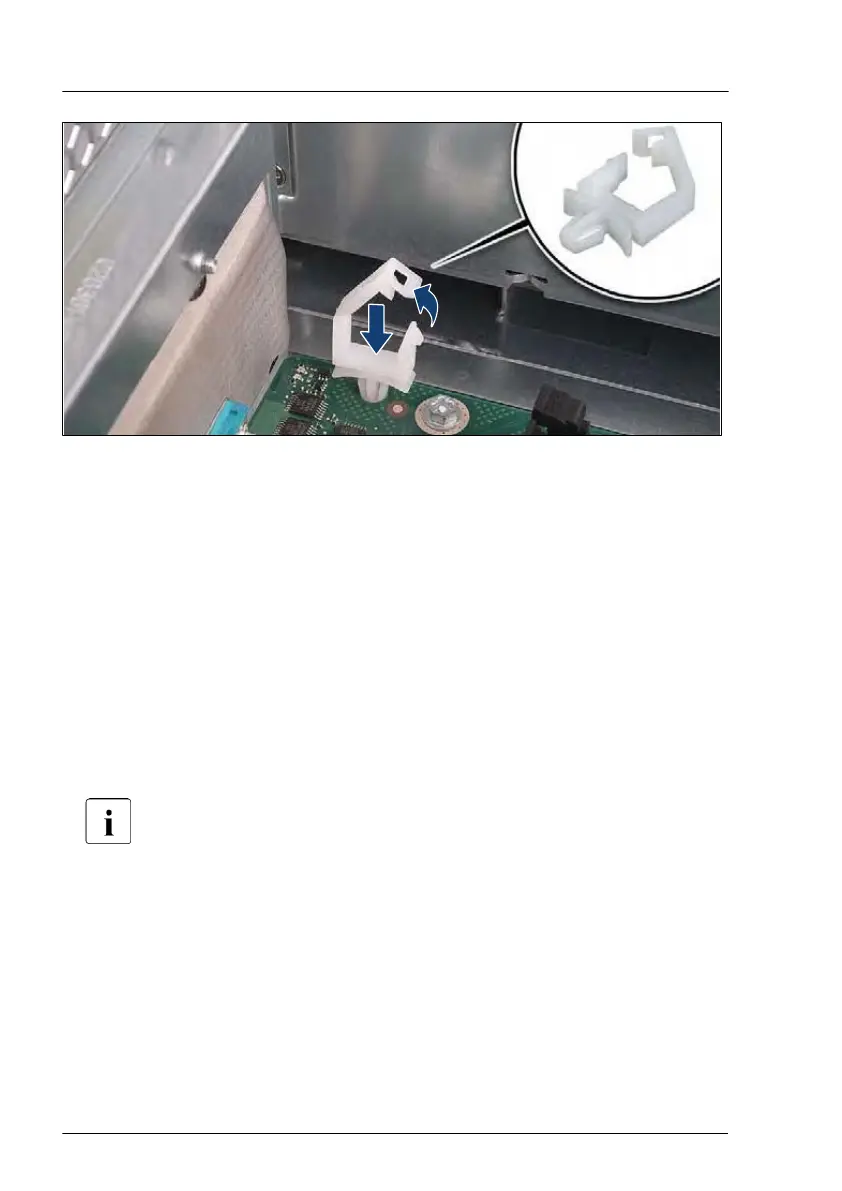

Figure 299: Installing the power cable clamp
▶
Press down on the power cable clamp until it snaps into place.
▶
Remove the plastic cover from the CPU socket of the new system board.
▶
Remove the CPU from the defective system board, see "Removing the
CPU" on page
344.
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
Install the CPU on the new system board, see "Installing the CPU" on
page 346
.
▶
Fit the protective plastic cover onto the socket of the defective system board
which will be sent back to spares.
Returned system boards without this cover probably have to be
scrapped.
▶
"Installing the heat sink" on page
352.
System board and components
456 Upgrade and Maintenance Manual TX1330 M4
