9.15.5 Network Parameters
The network parameters shown below define a specific Power+ SA unit.
[3-second Esc > Network…]
IP 157.211.000.253
Gateway: 157.211.000.251
Mask: 255.255.255.000
Faults: 090,073

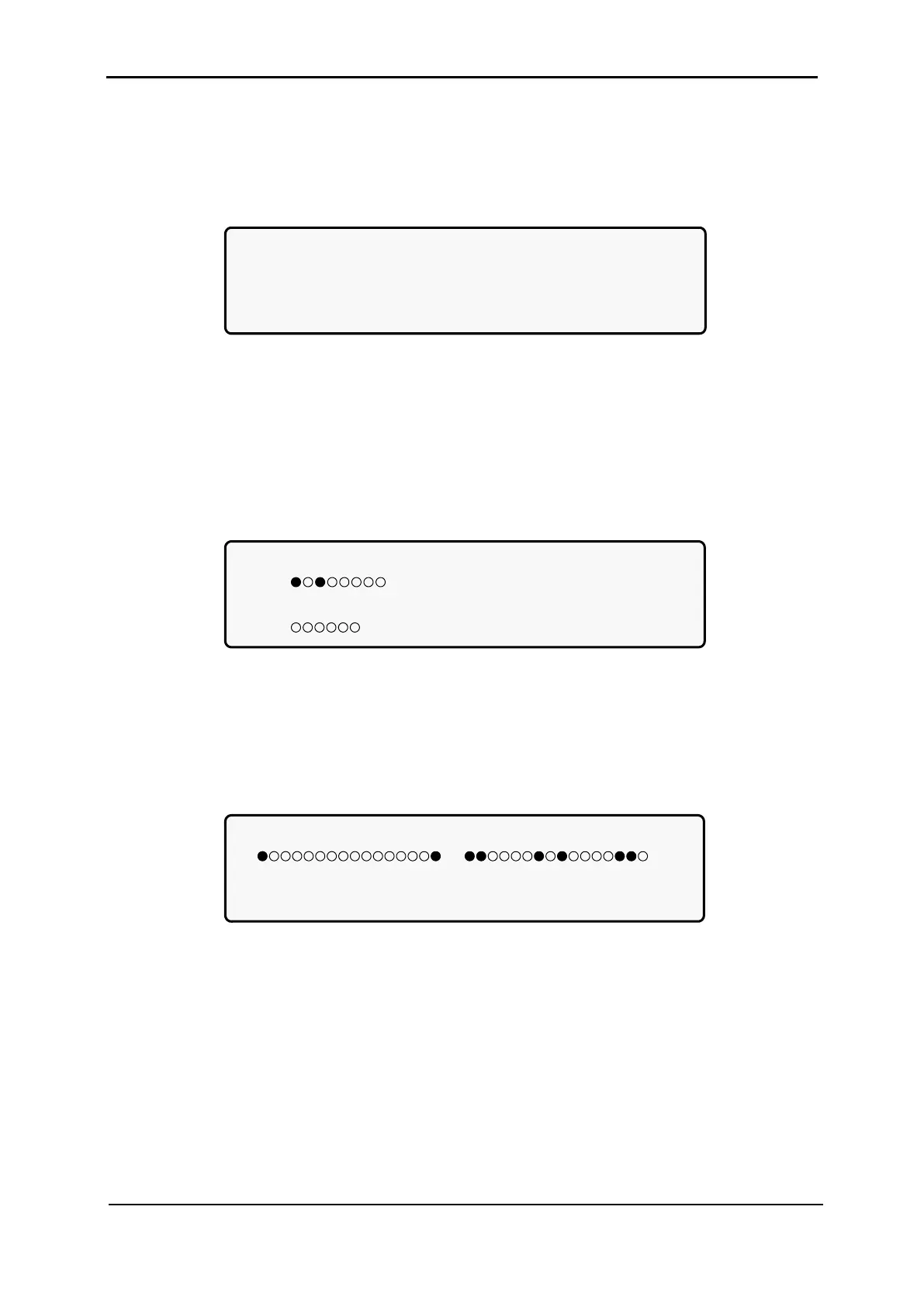

Figure 273: Network parameters
9.15.6 Dry Input and Output Relay Contact Status
The input and output contacts for the Power+ SA are displayed in Figure 274: input relay
contacts 1 and 3 are closed and all other contacts are open. The output contacts are
generally used to provide external alarms.
[3-second Esc > Dry In/Out Stat]
Dry :12345678
In :
Out :
Figure 274: Dry input and output relay contact status
9.15.7 Alarms Status
Alarms shown as solid circles are active:
[3-second Esc > Alarms Status]
-------System Alarm Status--------
1 32
Figure 275: Alarms status
