10.3.4 “Log” main menu option

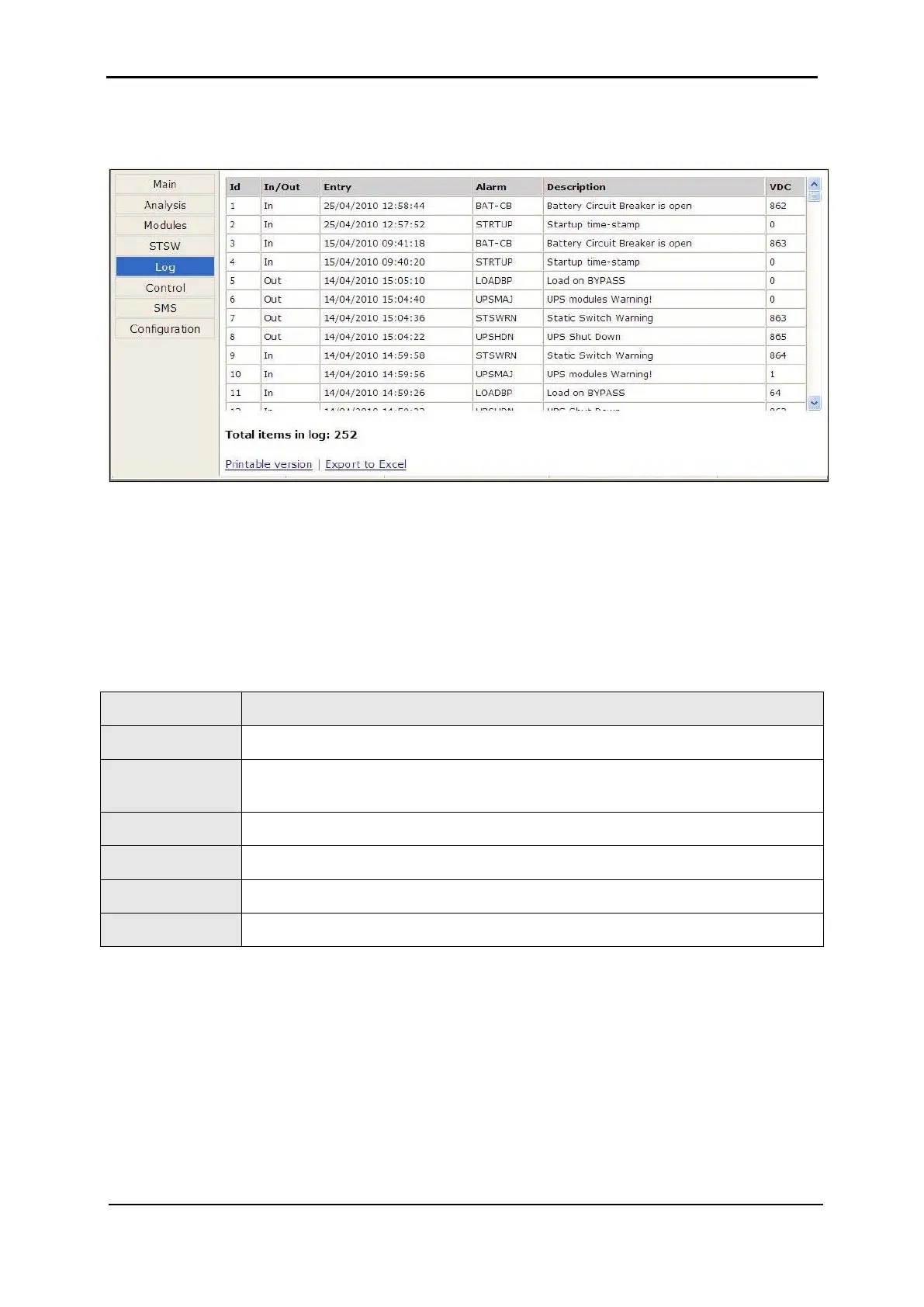

Figure 286: Listing the log entries

Table 15: Data items on the event log screen

MENU OPTION DESCRIPTION

This is simply a line number.

In / Out

“In” indicates the start of an alarm condition.

“Out” indicates the end of an alarm condition.

Entry

Timestamp in the format dd/mm/yyyy hh/mm/ss

Alarm

Alarm code.

Description

Alarm message. See Table 16.

VDC

Battery voltage.
