6.8.4 Check IP Communication with Controller (optional)
This test is designed to verify that the System Controller is properly configured for
communication and that the Web server built-in into the System Controller is functioning
properly.
1. Use an RJ45-to-RJ45 crossed cable to attach a notebook computer to the Ethernet
(RJ45) port on the rear panel of the System Controller.
2. Configure the Network Connections of the lap top computer to make sure the
computer is in the same domain as the UPS. (Note: the details of the following
configuration procedure are for the Windows XP operating system. The
configuration procedure will differ for other operating systems.)
a. Right click on the My Network Places icon on your desktop and select Properties.

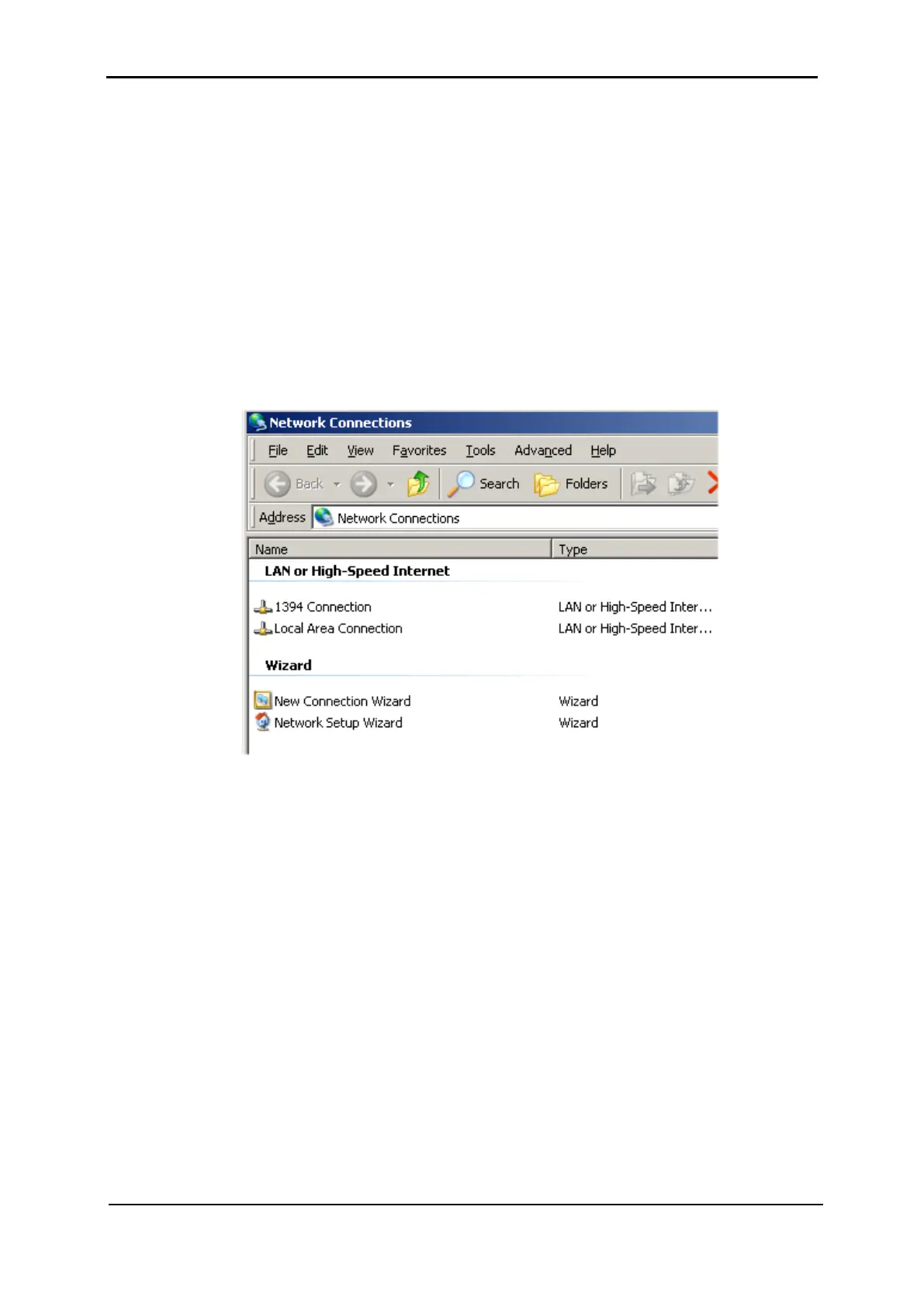

Figure 49: Network Connections screen
b. When the Network Connections screen appears, right-click on Local Area
Connection and select Properties.
