SA: 20, 30 and 40 kVA, Release 2.1

9.2 “System” Option

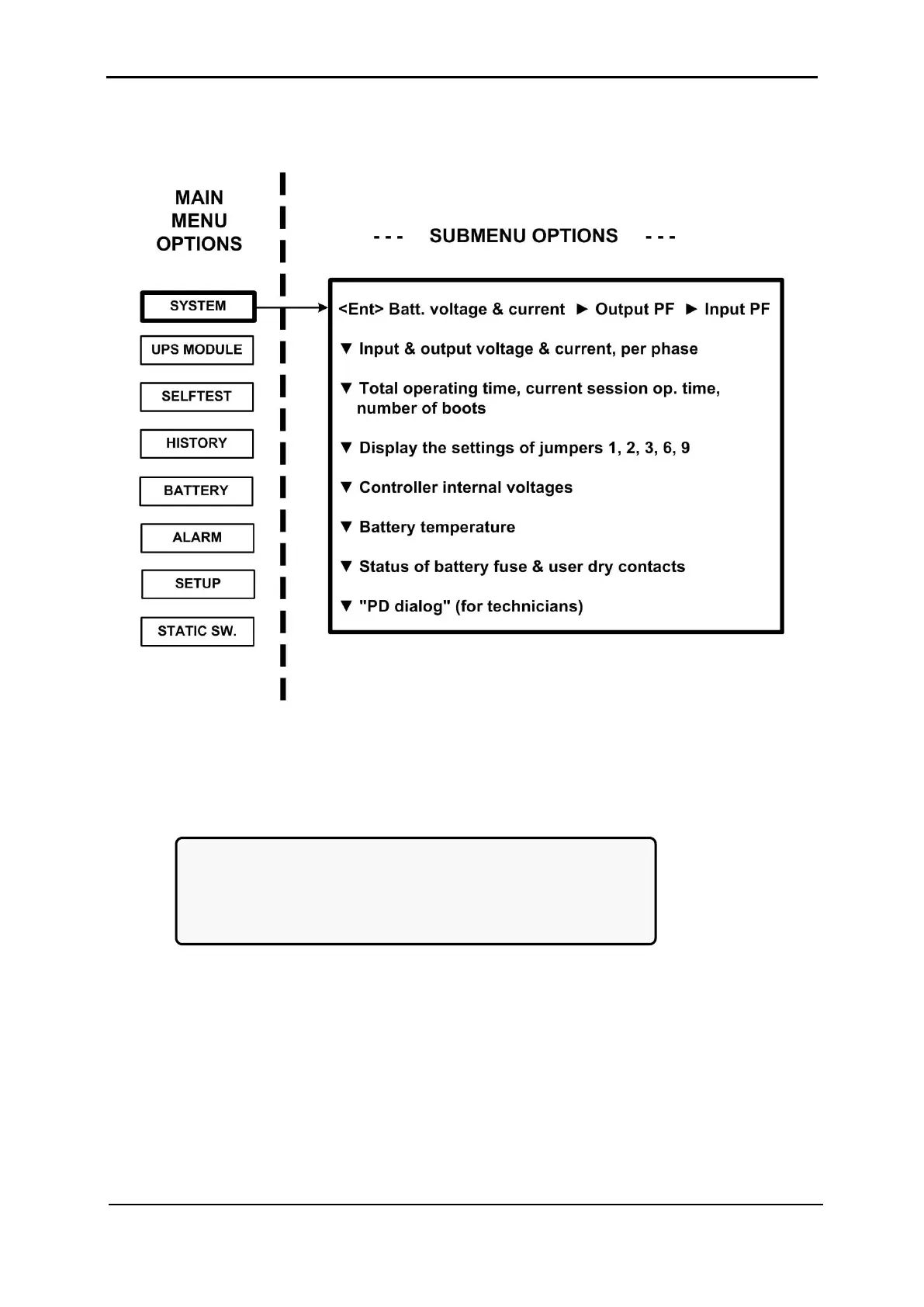

Figure 77: Main menu option 1 ("System")

1. The SYSTEM option (option 1) shows the dc voltages and current (positive, negative

and summary):

[Main Menu > SYSTEM]

BATT CURR: -----> TOTAL +053.0A

BATT POS.: 430V BATT +053.2A (0531)

BATT NEG.: 441V

BATT VOLT: 871V

Figure 78: System dc voltages
