8. POWER+ SA CONTROL PANEL
The POWER+ SA system is equipped with an LCM display (LCD) and touch pad control
panel that enables the user to effectively manage the UPS system. Once P
OWER+ SA is
installed, the control panel serves as the user’s primary interface with the system.
Messages, warnings, and error conditions are relayed to the user through the display, LEDs
and audible alarms.

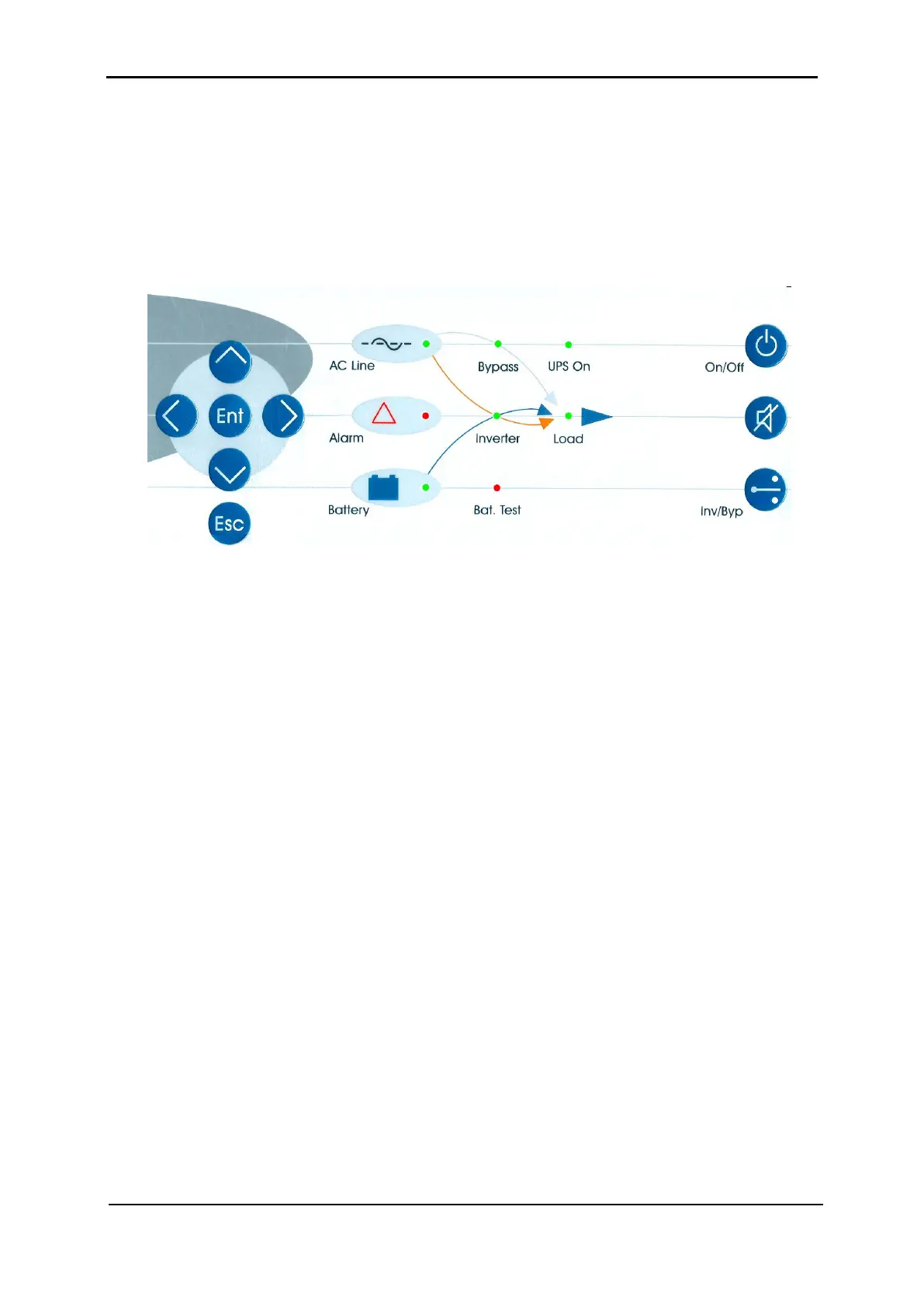

Figure 64: Control panel
The remainder of the current chapter contains a quick-reference summary of the functions
available through the P
OWER+ SA control menus.
Chapter
9 beginning on page 58 illustrates in detail the functions available through
the P
OWER+ SA control menus.
