Gamatronic power+ sa - Figure 70: Alarm Set Sub-Menu; Figure 71: Module Configuration Sub-Menu; Figure 72: Battery Menu

To Next Page

To Previous Page

GAMATRONIC ELECTRONIC INDUSTRIES LTD.

POWER

SA: 20, 30 and 40 kVA, Release 2.1

1. Ac high & low alarm thresholds,

Ac alarm hysteresis.

2. Batt. end, batt. low, batt. hi voltages.

7. Over temp., under temp.

9. Integration factor.

Options 1 on the Setup menu.

(Setup Menu)

ALARM

SET

Set:

M.7.1

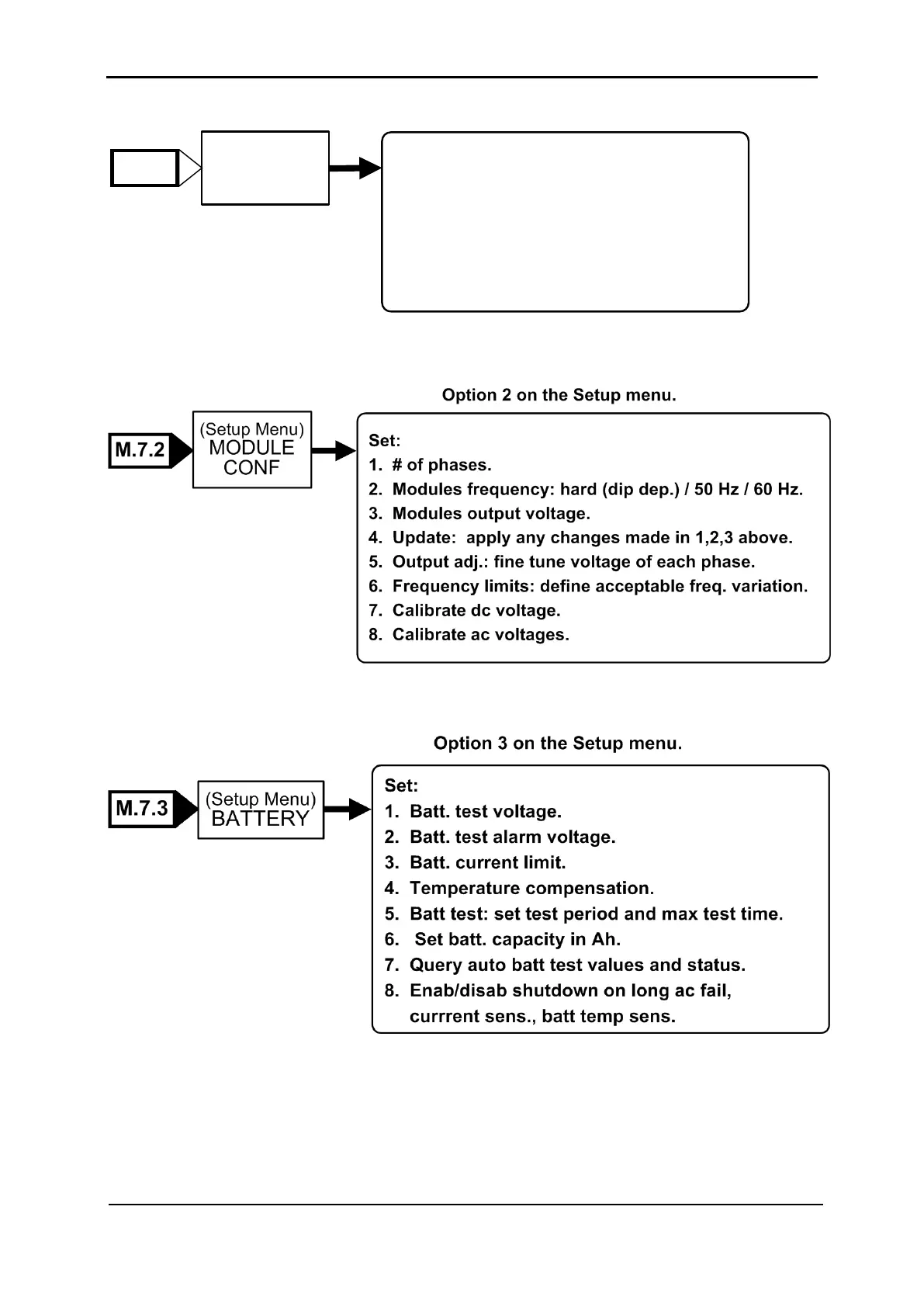

Figure 70: Alarm set sub-menu

Figure 71: Module configuration sub-menu

Figure 72: Battery menu
