POWER
+
SA: 20, 30, and 40 kVA, Release 2.1
7.2 POWER
+
SA shutdown (switching to bypass)
1. Press twice on the On/Off button.
2. Wait 2 minutes for the POWER+ to shut down. The control screen will indicate
UPS OK (OFF).
LOAD LEVEL ---22:21:18---
L1:__________ 000A, 230V BATTERY: 864V
L2:__________ 000A, 230V UPS OK (OFF)
L3:__________ 000A, 230V STSW OK (BYP)

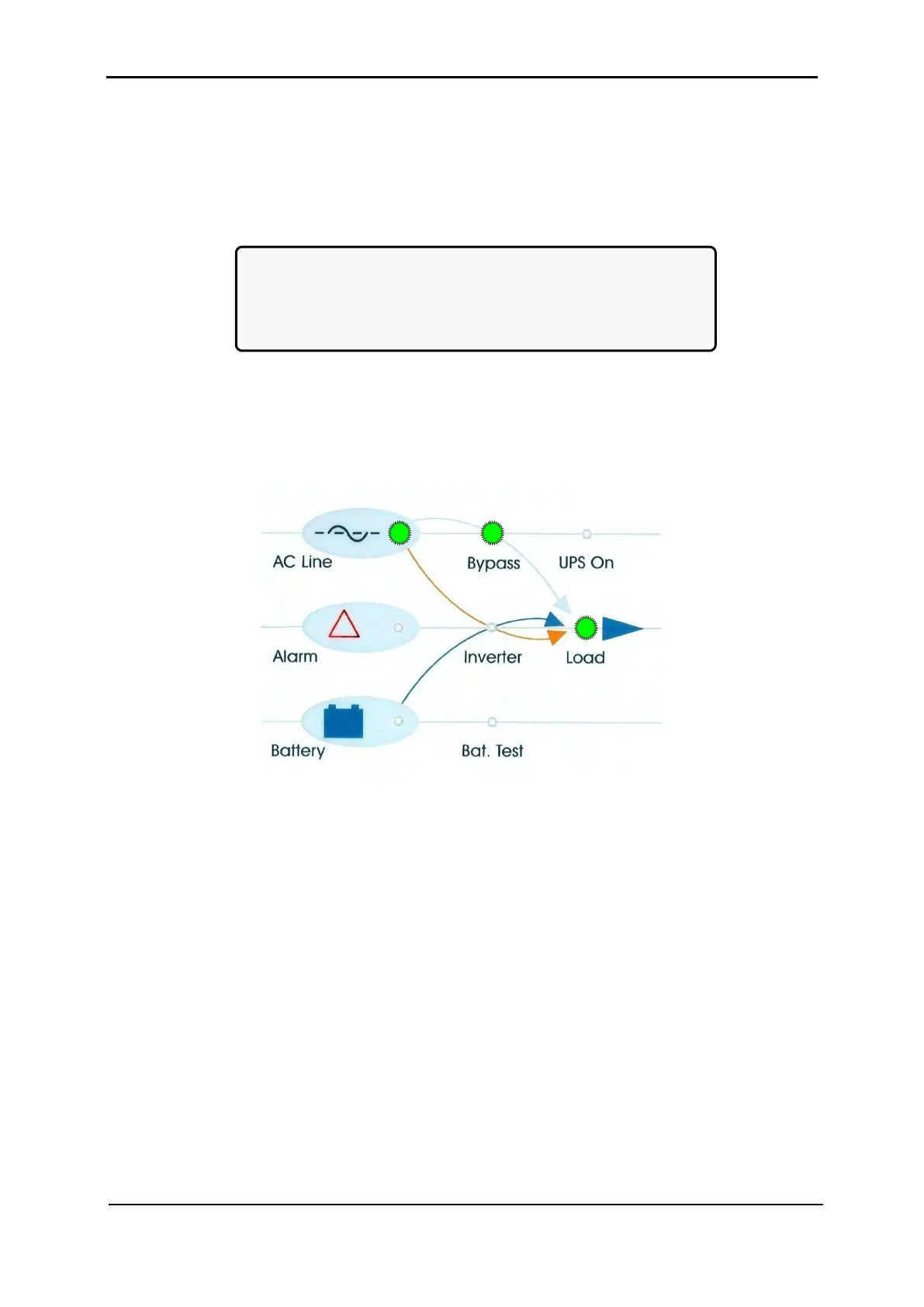

Figure 60: Main screen – switching to bypass
Note: This does NOT switch the entire POWER
+
OFF. Power is still delivered to the load
but in bypass.
Figure 61: Bypass indication
