GAMATRONIC ELECTRONIC INDUSTRIES LTD.
POWER
+
SA: 20, 30 and 40 kVA, Release 2.1
73
9.7 “Alarm” Option
Alarms are displayed—there are 32 in all. In addition, there are some screens for use by a
technician.

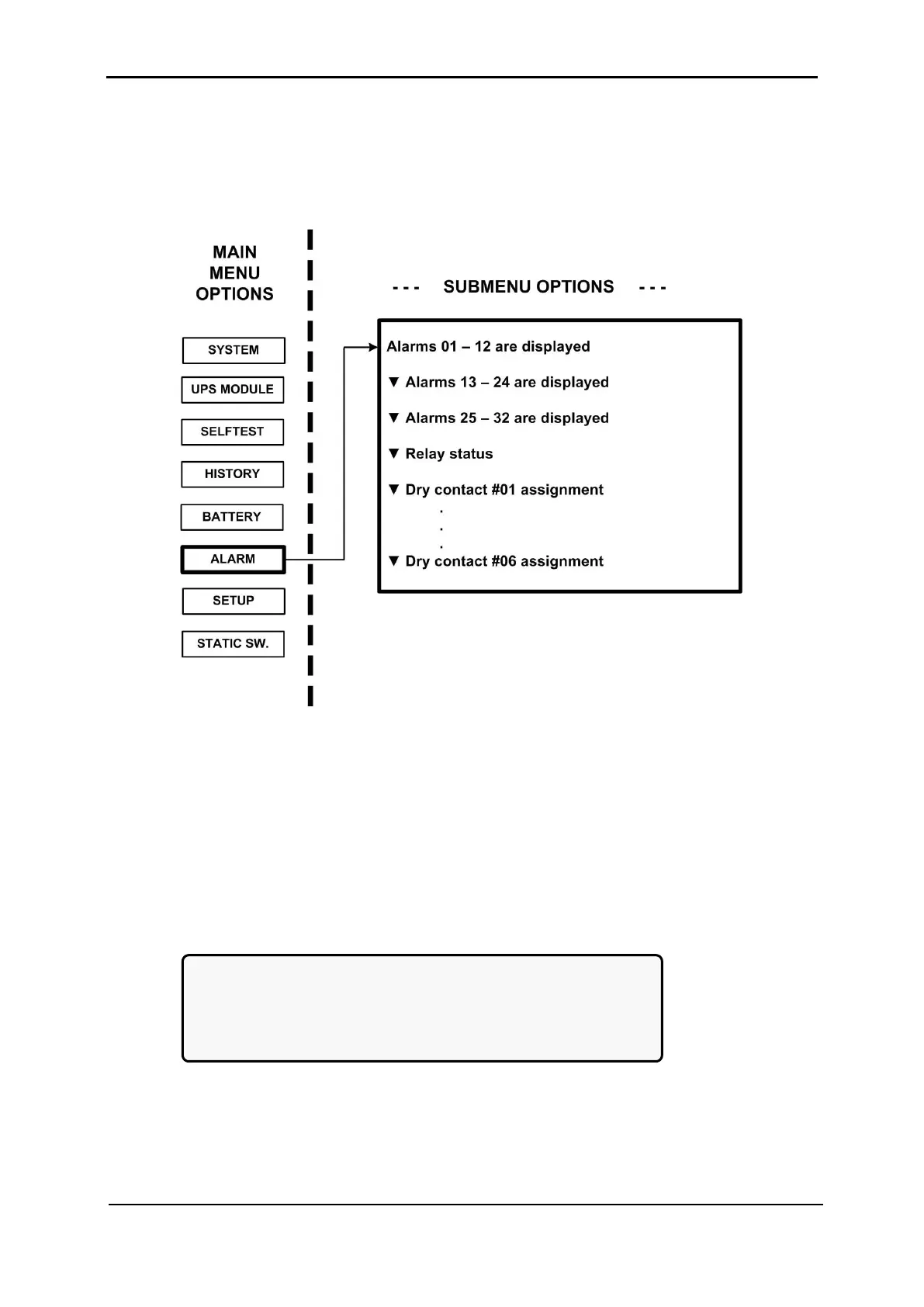

Figure 107: Main Menu option 6 (“Alarm”)
1. View alarms 01-12:
A + or – before an alarm name indicates the alarm is enabled or disabled,
respectively.
An asterisk (*) after an alarm name indicates that the alarm is active.
[Main Menu > ALARM]
01 – 03 +UPSMAJ:* +UPSMIN: +MSTR>1:
04 – 06 +DCRPCY: +LOADBP: -VIBRA-:
07 – 09 +OVTEMP: +OUTFLT: +BAT-HI:
10 – 12 +------: +BATEND: +BATLOW:
Figure 108: Alarms 01-12
