GAMATRONIC ELECTRONIC INDUSTRIES LTD.

POWER

SA: 20, 30 and 40 kVA, Release 2.1

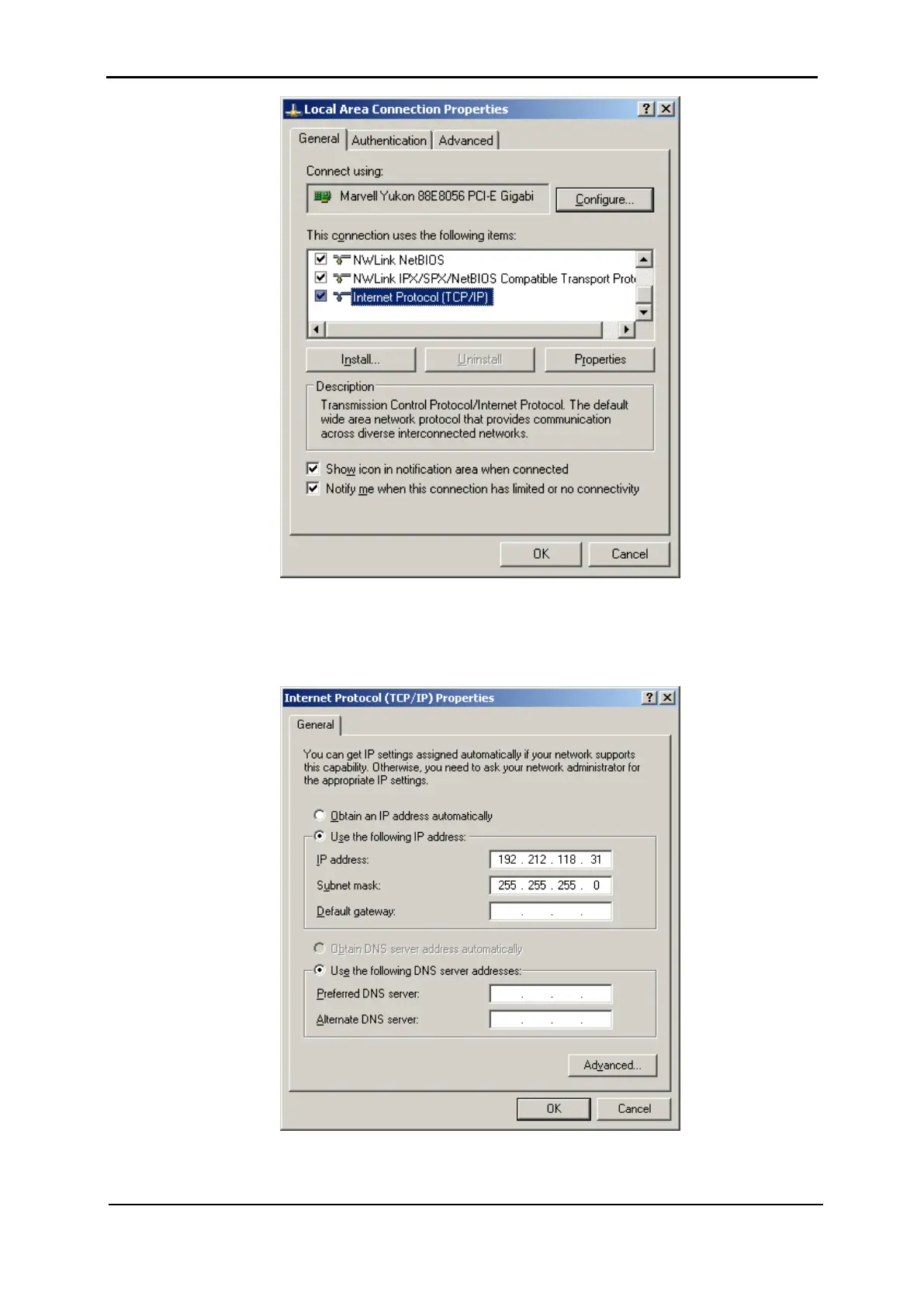

Figure 50: Local Area Connection Properties screen

c. When the Local Area Connection Properties screen appears, in the This connection

uses the following items window scroll down to Internet Protocol (TCP/IP) and

double click on it.

Figure 51: Internet Protocol (TCP/IP) Properties screen
