9.6 “Battery” Option

The battery option on the main menu displays information about battery capacity, battery

voltage and current, and battery test.

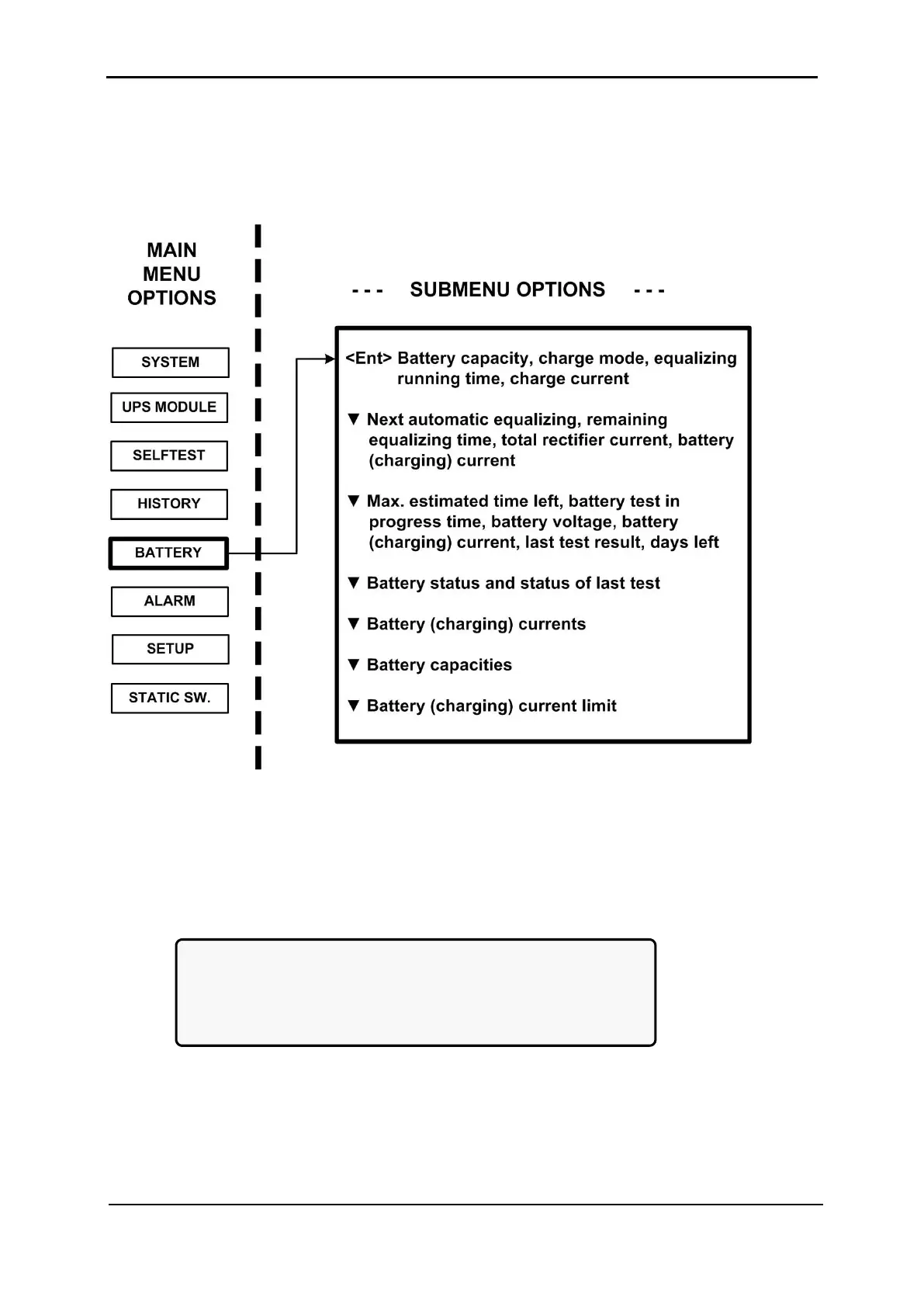

Figure 99: Main Menu option 5 (“Battery”)

1. View the battery capacity, charge mode, equalizing running time, and charge

current:

[Main Menu > BATTERY]

Battery capacity: 0020Ah

Charge mode : Floating

Eq. running time: --------

Charge current : 053.0A

Figure 100: Battery status
