SA: 20, 30, and 40 kVA, Release 2.1
d. When the Internet Protocol (TCP/ITP Properties screen appears, click the Use the
following IP address button and enter IP address and Subnet mask in the
appropriate fields. Leave Default gateway blank. Make sure that the first three groups
of numbers in the IP address (192.212.118 in the above example) are the same as
those of the domain in which the UPS is installed, and that the last number (31 in the
above example) is different (it can be any number from 0 to 255, other than the one
already assigned to the UPS).
e. Click OK twice to complete the network connection.
3. Open your browser on the laptop computer and enter the IP address of the System
Controller in the browser’s address field to verify that you can reach the Web server
on the System Controller. The system displays the main GMaCi screen, similar to
the one shown below.

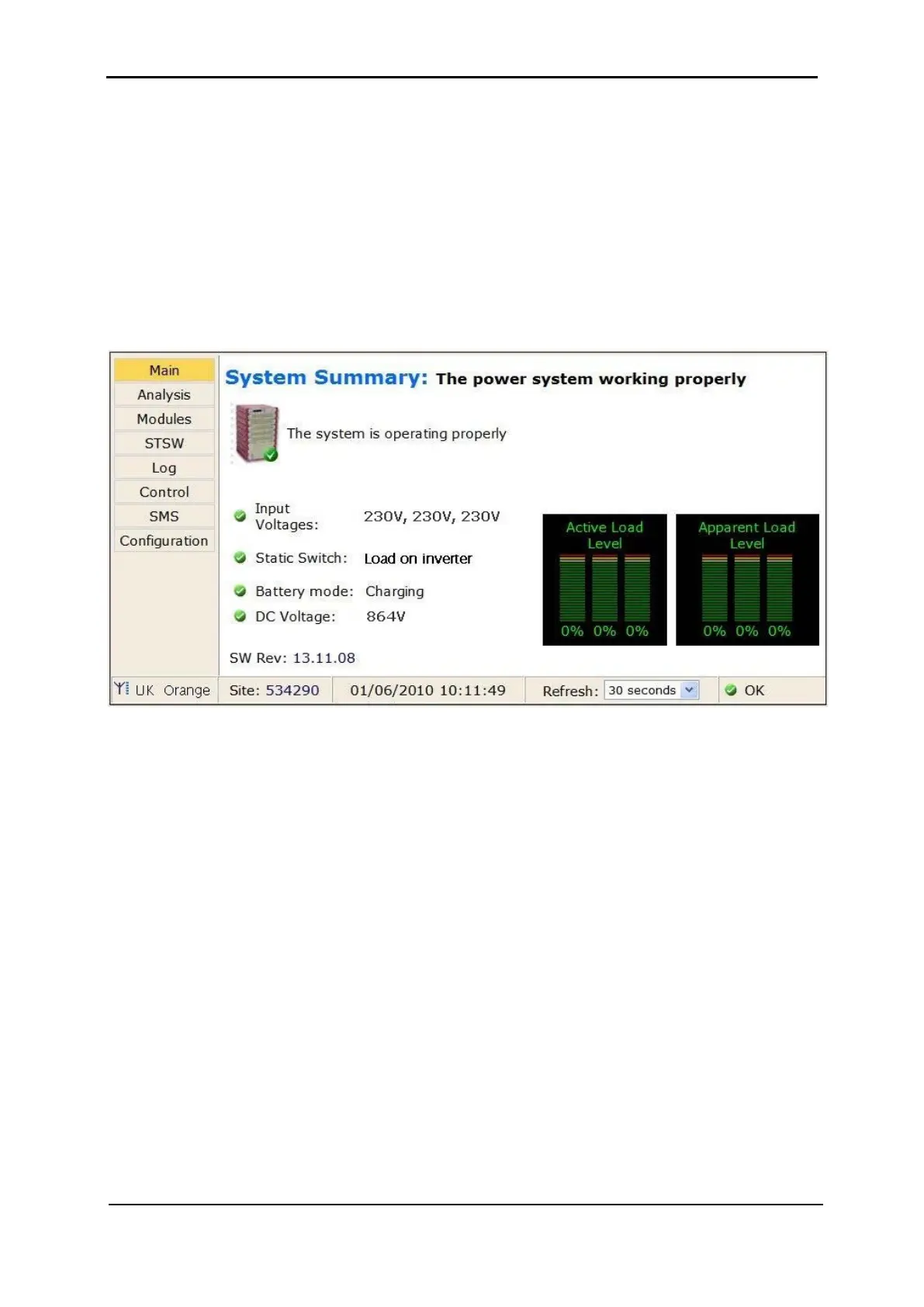

Figure 52: Main Screen of built-in web server
6.8.5 Test Wing Option
If Wing has been installed in the UPS, this test is designed to check that it is working
properly by sending an SMS message through the Web interface of Wing to a specified
phone number.
