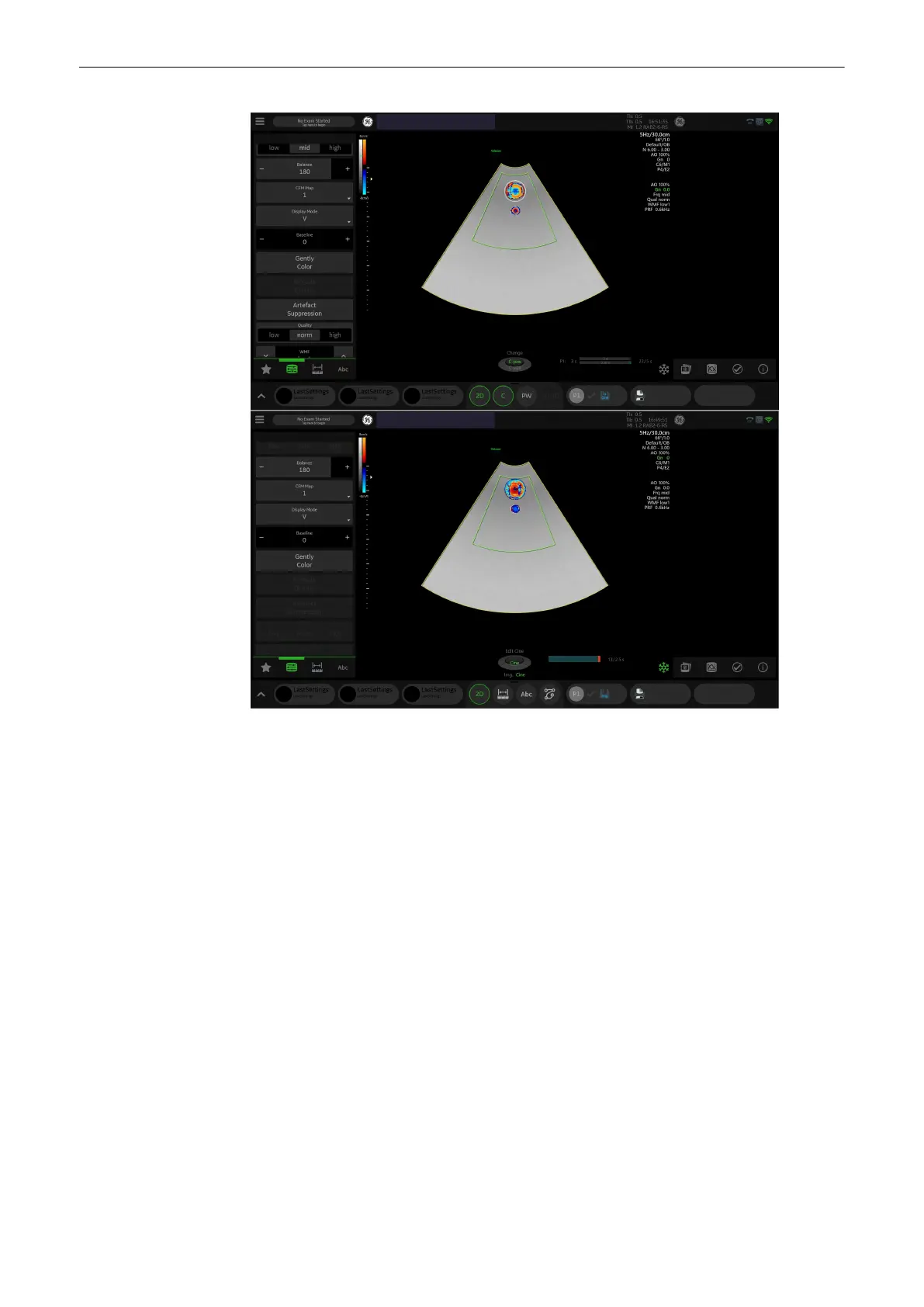

Figure 6-4 CFM Mode: Scan Mode and Read Mode
Using Color Flow Mode
1.
Touch
2D
on the user interface to start B-Mode.
2. Touch
C
on the user interface to start Color Flow Mode.
3. The
Main CFM
menu appears.
4. Press the top trackball button (
Change
) and adjust size and position of the Color box
with the trackball or use on screen gestures.
5. Press
Freeze
.
Info
Also see
'Button description'
on page 3-5.
Color Mode Menu
2D + 2D/CFM
Displays 2D and color image side by side.
Steer Flip Touch
Steer Flip
to flip the PW cursor position round the vertical axis. The
steering angle value changes from plus to minus and vice versa
XL Changes the monitor from standard mode to wide mode.
Threshold
This function is only available in Read Mode. It eliminates small color noise or
motion artifact signals in the color image. It is similar to the Gain control in Scan
Mode.
2D Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 R
evision 4 6-7
