Edit ROI
Edit the existing ROI.
New ROI
Select a new ROI.
Init
Set all translations and rotations back to the initial acquisition position.
MagiCut
Displays the
MagiCut
menu.
Calc Cine
Displays the
Cine Calculations
menu.
Threshold Volume
Displays the calculated
Threshold Volume
(according to the monitor display).
Adjust the
Threshold Volume
by using the touch panel control. A small number cuts
off fewer signals than a higher number.
Volume Histogram
Displays the calculated
Volume Histogram
.
The
Volume Histogram
is calculated from the defined volume.
8.8.6.2 SonoAVC™follicle
Note
SonoAVC™follicle is an option.
Note
If a 4D Volume cine is present, the system will automatically switch to 3D Static when
SonoAVC™follicle is pressed.
Note
Render mode Inversion is activated automatically.
This feature helps to detect low echogenic objects (eg. follicles) in an organ (eg. ovary) and
analyzes their shape and volume. From the calculated volume of the object an average
diameter will be calculated. All objects detected that way will be listed according to size.
The calculation results are displayed in the right monitor area. The objects are listed according
to size. All different objects are color coded i.e. the color surrounding the number of the object
also denotes the object on the image. If the mouse cursor hovers over a specific item on the
list the respective object in the image is highlighted and vice versa. The color of the object is
bound to its position on the list.

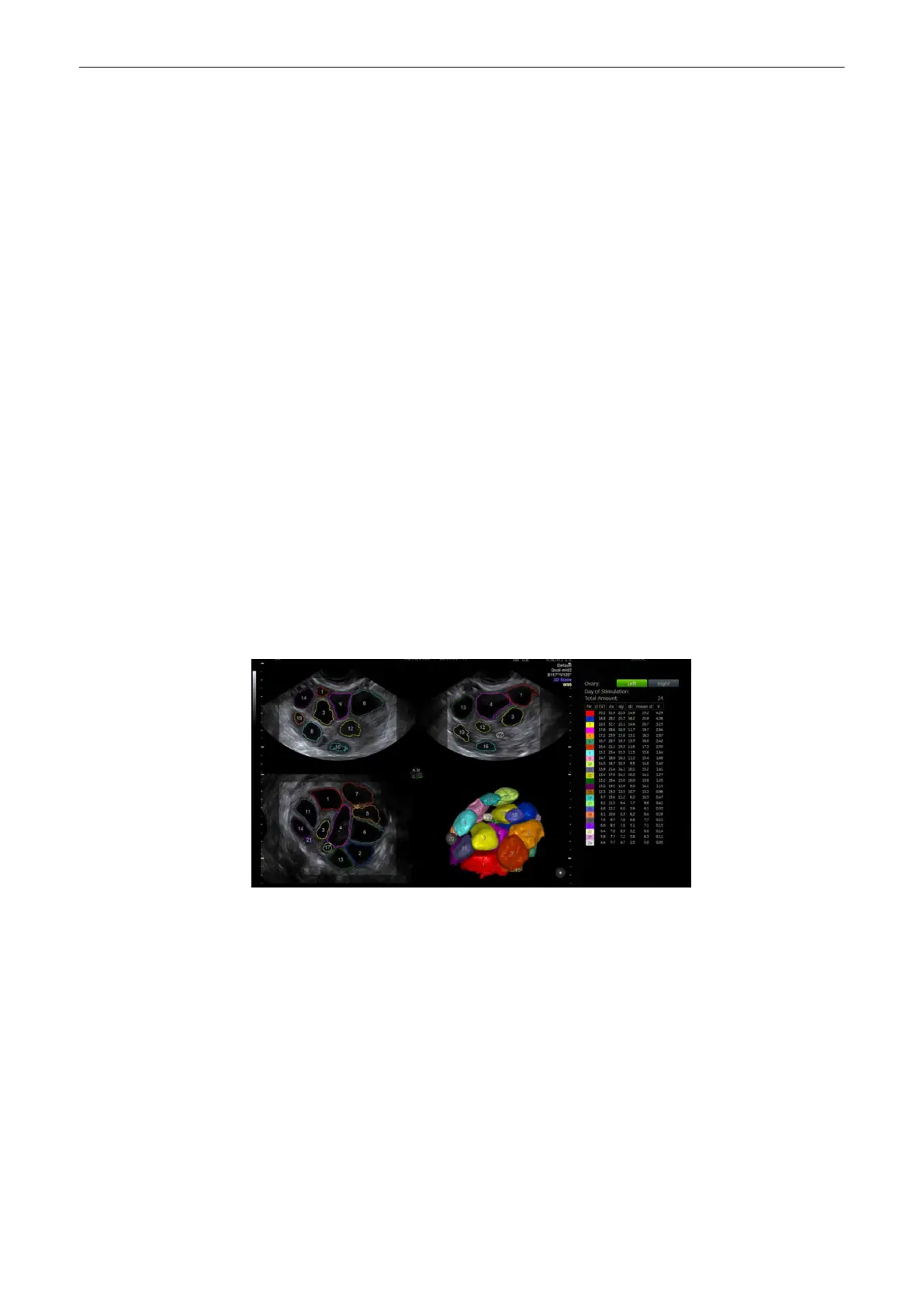

Figure 8-25 SonoAVC™follicle screen display
d(V) Diameter, calculated as if the object were a perfect sphere
dx Length of x-axis of the best fitting ellipsoid
dy Length of y-axis of the best fitting ellipsoid
dz Length of z-axis of the best fitting ellipsoid
mean d Average value of the x-axis, y-axis and z-axis
V Volume of the object
